Chapter 8
8-83

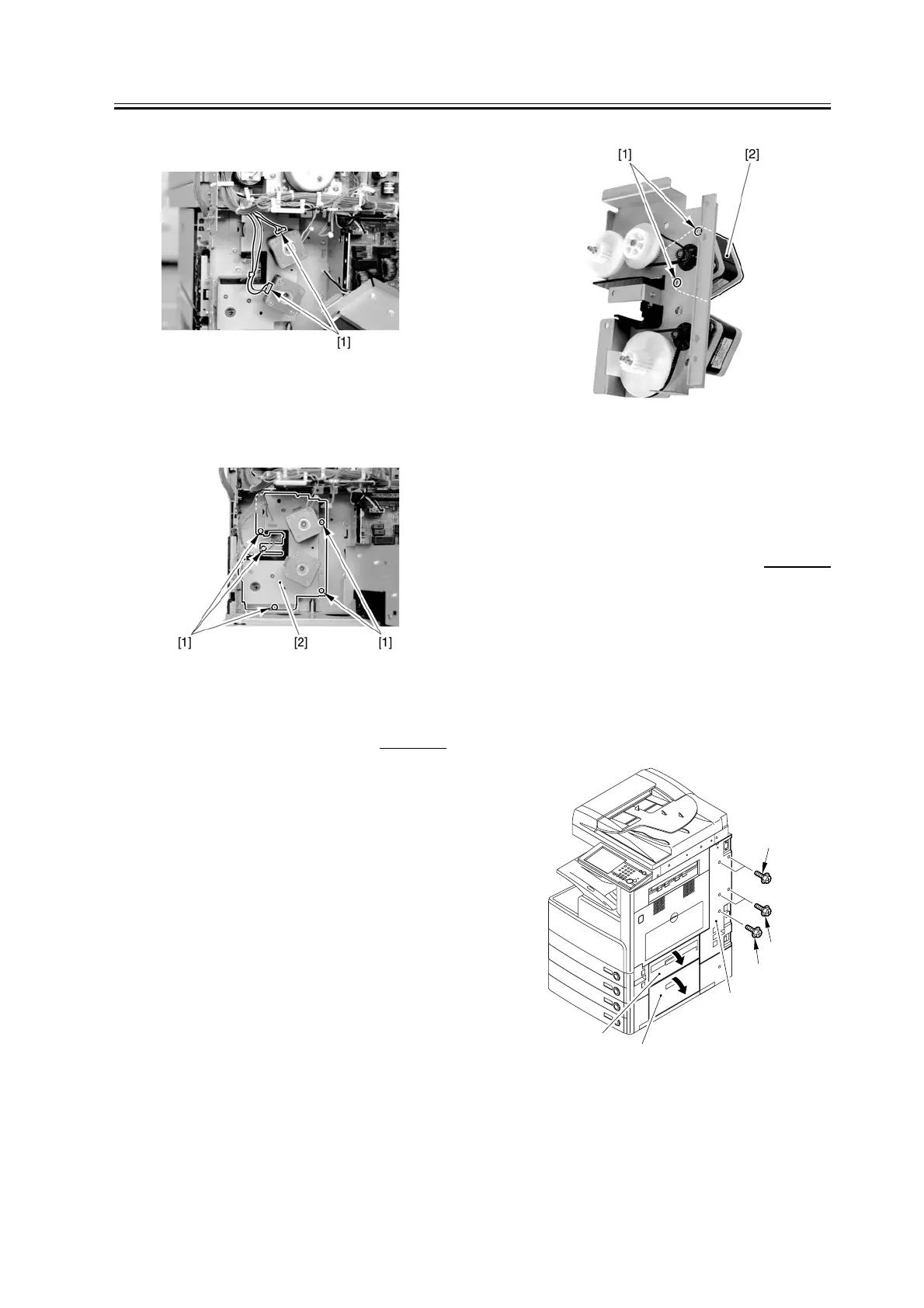

3) Disconnect the 2 connectors [1].
F-8-139
4) Remove the 5 screws [1], and detach the pickup
motor base [2].
F-8-140
8.8.6.4 Removing the Cassette
Pickup Motor 2 0007-6601
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the 2 screws [1], and detach the cassette
pickup motor 2 [2].
F-8-141
8.8.7 Cassette Size Sensor
8.8.7.1 Removing the Right
Cover (rear) 0007-6602
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Open the pedestal right door [1]. (if equipped with
a 2-Cassette Pedestal-Y2)
2) Open the right lower door [2].
3) Remove the 5 screws [3], and detach the right cover
(rear) [4].
F-8-142
[1]
[2]
[3]
[3]
[3]
[4]

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
