Canon iR4570 Series User Manual

Chapter 7
7-8
F-7-8
In [1] above, a cleaning bias (-2600 V) is applied.
7.3.4 Sequence of Operation (copying)
0006-6869
iR3570 / iR4570 / iR3530

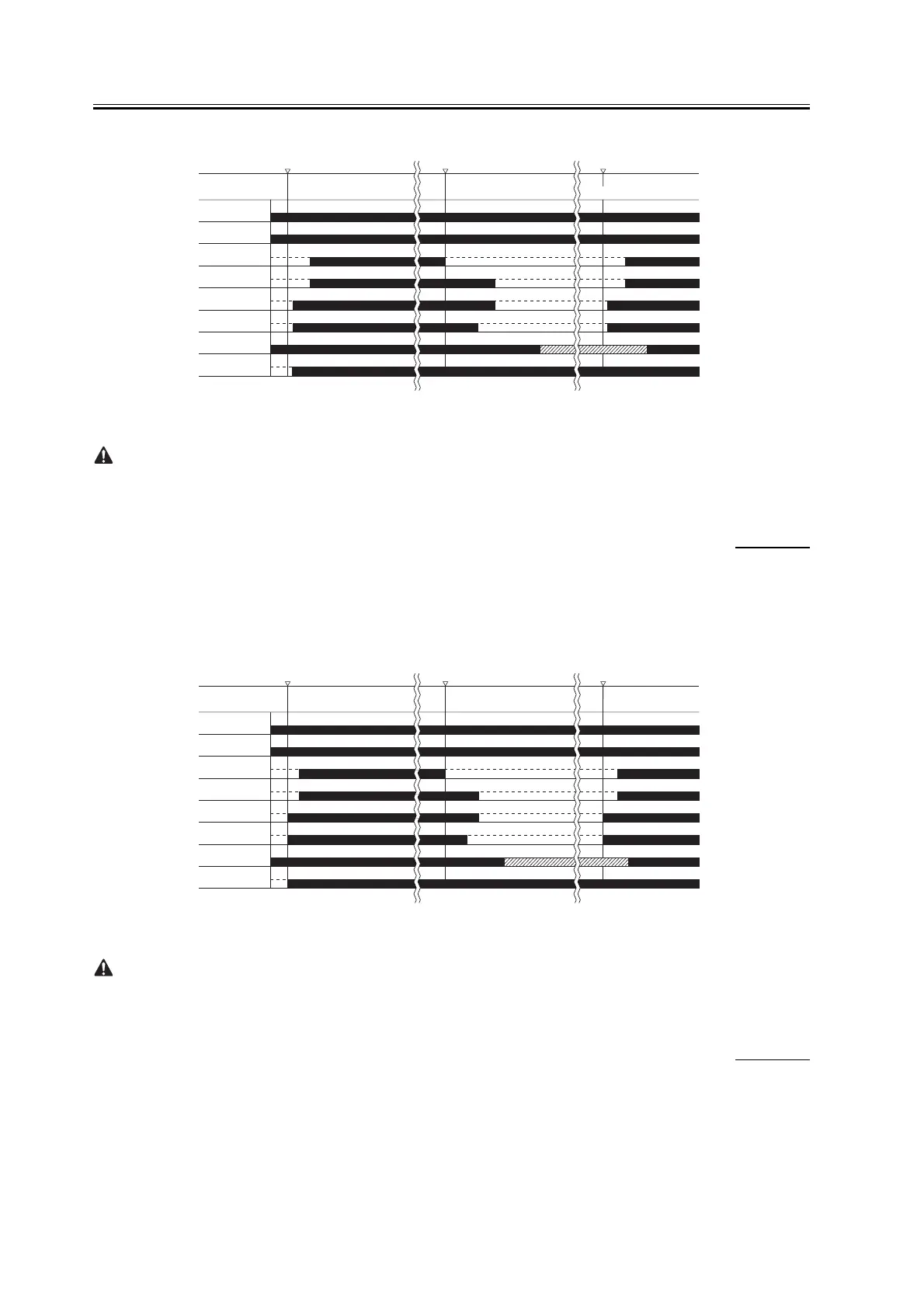

The sequence of operation during copying is as follows:
F-7-9
In [1] above, a cleaning bias (-2600 V) is applied.
7.3.5 Sequence of Operation (last rotation)
0006-6870
iR2270 / iR2870 / iR3530
The sequence of operation of last rotation is as follows:
Image formation sequence
(1st sheet)
Image formation sequenc
e
(2nd sheet and later)
Sheet-to-sheet sequence
Registration
ON
Registration
ON
Image write
end
Primary charging
(PRI)
Main motor
(M-motor)
Laser
(LD)
Developing AC
(DEV_AC)
Developing DC
(DEV_DC)
D
eveloping clutch
(
DEV_CL)
Transfer
(TR)
Static removal
(SEP)
[1]
Image sequence
(1st sheet)
Image formation sequenc
e
(2nd sheet and later)
Sheet-to-sheet sequence
Registration
ON
Registration
ON
Image write
end
Primary charging
(PRI)
Main motor
(M-motor)
Laser
(LD)
Developing AC
(DEV_AC)
Developing DC
(DEV_DC)
D
eveloping clutch
(
DEV_CL)
Transfer
(TR)
Static removal
(SEP)
[1]
