Canon iR4570 Series User Manual

Chapter 7
7-63
F-7-200

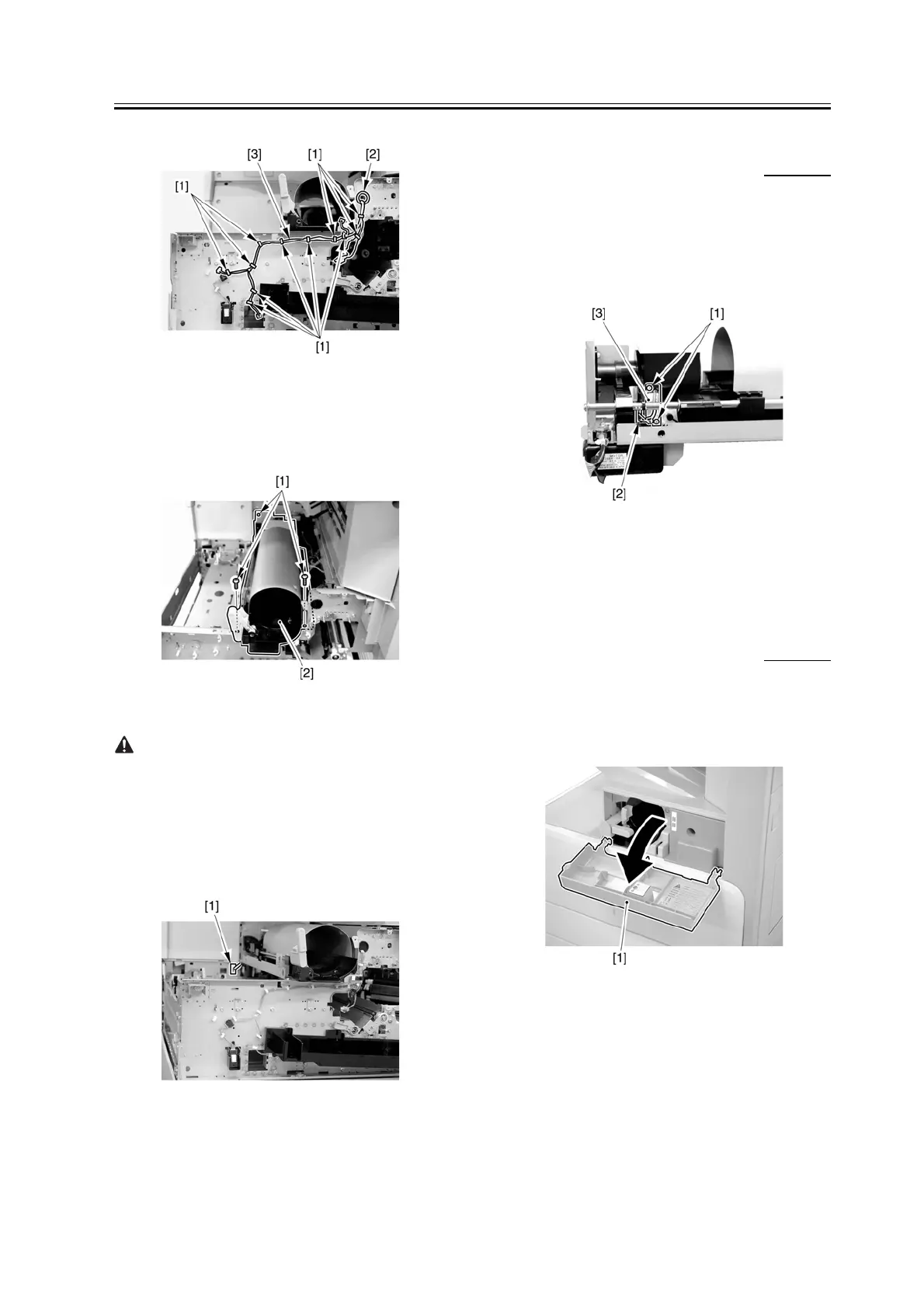

4) Remove the 3 screws [1], and detach the hopper
assembly [2].
F-7-201
When fitting the hopper assembly to the machine, be
sure that the connectors [1] are securely connected. If
the connectors [1] are not connected, the environment
heater will not be supplied with power, leading to
image faults.
F-7-202
7.12.9.12 Removing the Toner
Level Sensor 0007-8373
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the 2 screws [1], and disconnect the
connector [2]; then, detach the toner sensor [3].
F-7-203
7.12.10 Toner Feedscrew Motor
7.12.10.1 Removing the Front
Cover Unit 0007-8019
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Open the front cover [1].
F-7-204
2) Remove the face cover rubber [1].
3) Remove the binding screw [2].
4) Remove the RS tightening screw [3].
5) Detach the front cover unit [4] by moving it in the
direction of the arrow.

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
