Canon iR4570 Series User Manual

Chapter 8
8-129

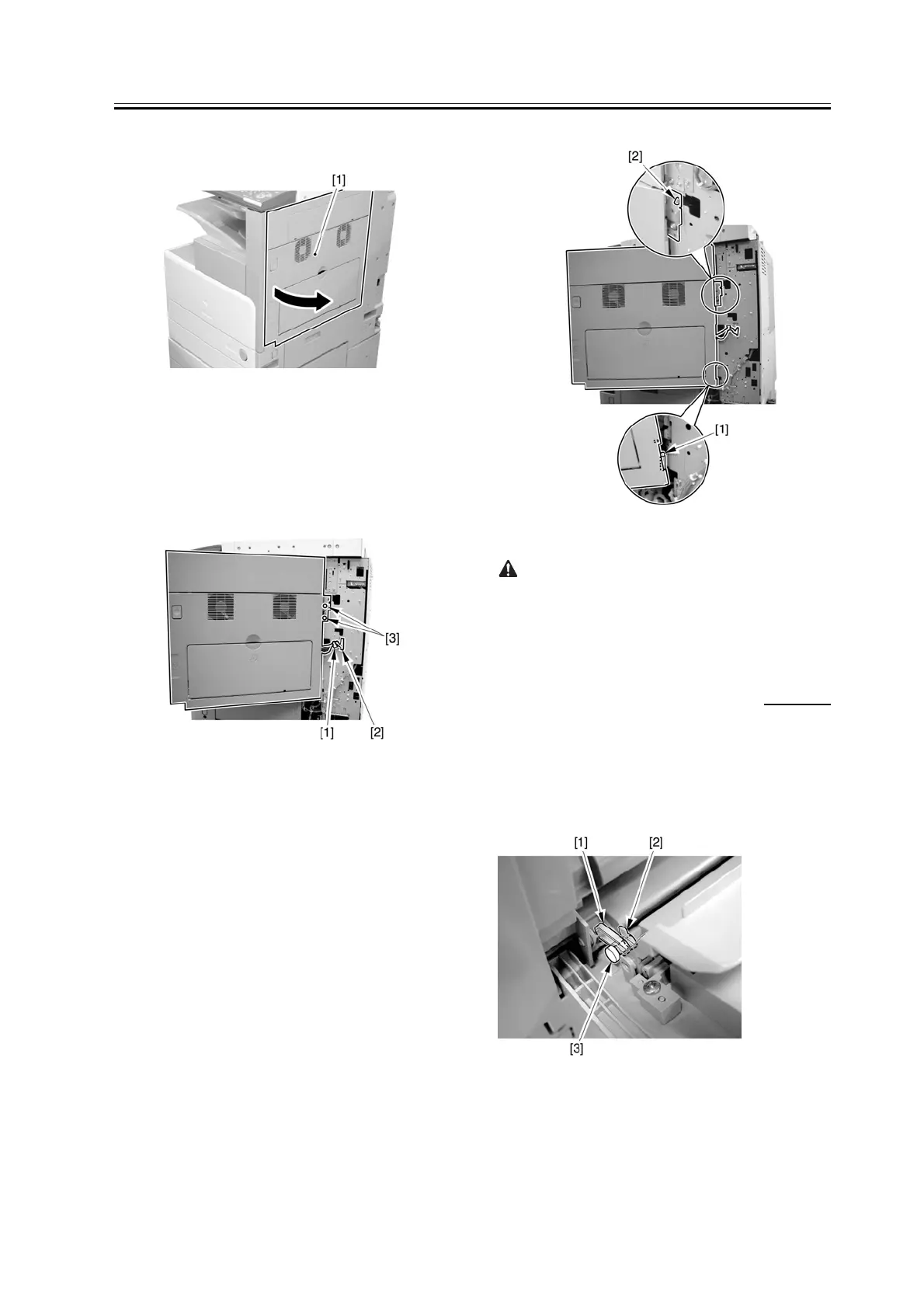

1) Open the right door.
F-8-336
2) Remove the reuse band [1], and disconnect the
connector [2].
3) Remove the 2 screws (M4x8; RS tightening), and
detach the right door.
F-8-337
Attaching the Right Door
1) Match the hinge [1] found at the bottom of the right
door against the lug.
2) Engage the hinge [2] found on the top of the right
door with the hook found on the side plate.
F-8-338
When tightening the 2 screws used to fix the hinge in
place, be sure to close the right door first.
8.8.18.4 Removing the Manual
Feed Unit 0007-6716
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the manual upper guide link [1] (plastic E-
ring [2] and boss [3]).
F-8-339
2) Remove the screw [2], and detach the manual feed
guide [1].

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
