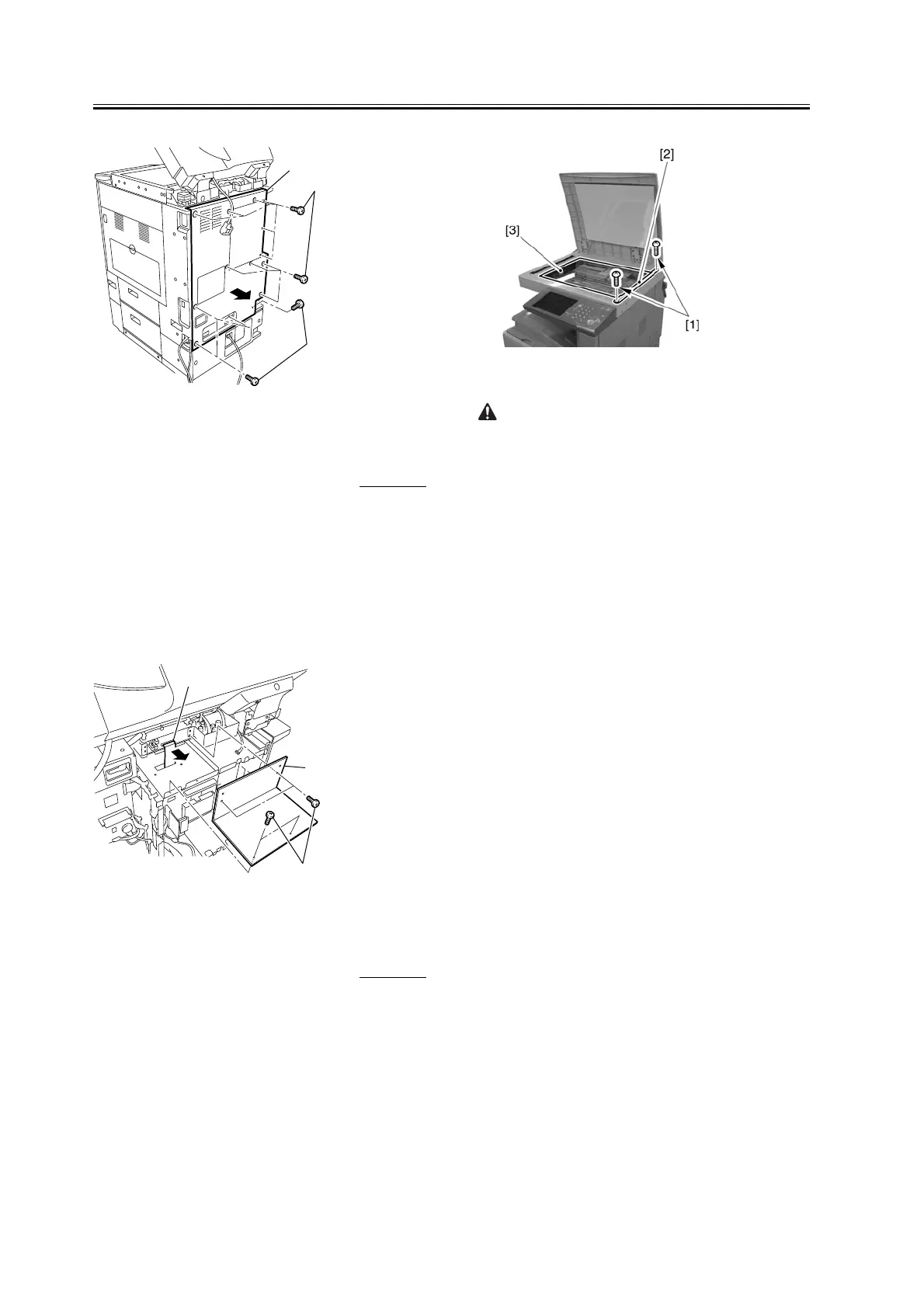

Canon iR4570 Series User Manual

Chapter 5
5-28
F-5-34
5.4.2.4 Removing the flexible
cable cover 0007-3566
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the 4 screws [1], and detach the flexible
cable cover [2].
2) Disconnect the flexible cable [3] on the reader
controller PCB.
F-5-35
5.4.2.5 Removing the
Copyboard Glass 0007-3420
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Open the copyboard cover (or ADF).
2) Remove the 2 screws [1], and detach the glass
retainer [2]; then, detach the copyboard glass [3].
F-5-36
When removing the copyboard glass, take care not to
touch the following:
- glass surface
- standard white plate
The presence of dirt can cause white/black lines in the
images. If dirt is found, clean it with lint-free paper
moistened with alcohol.
[1]
[1]
[2]
[1]
[3]
[2]

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
