OPERATOR MANUAL |CAPTAIN 273 4WD 42

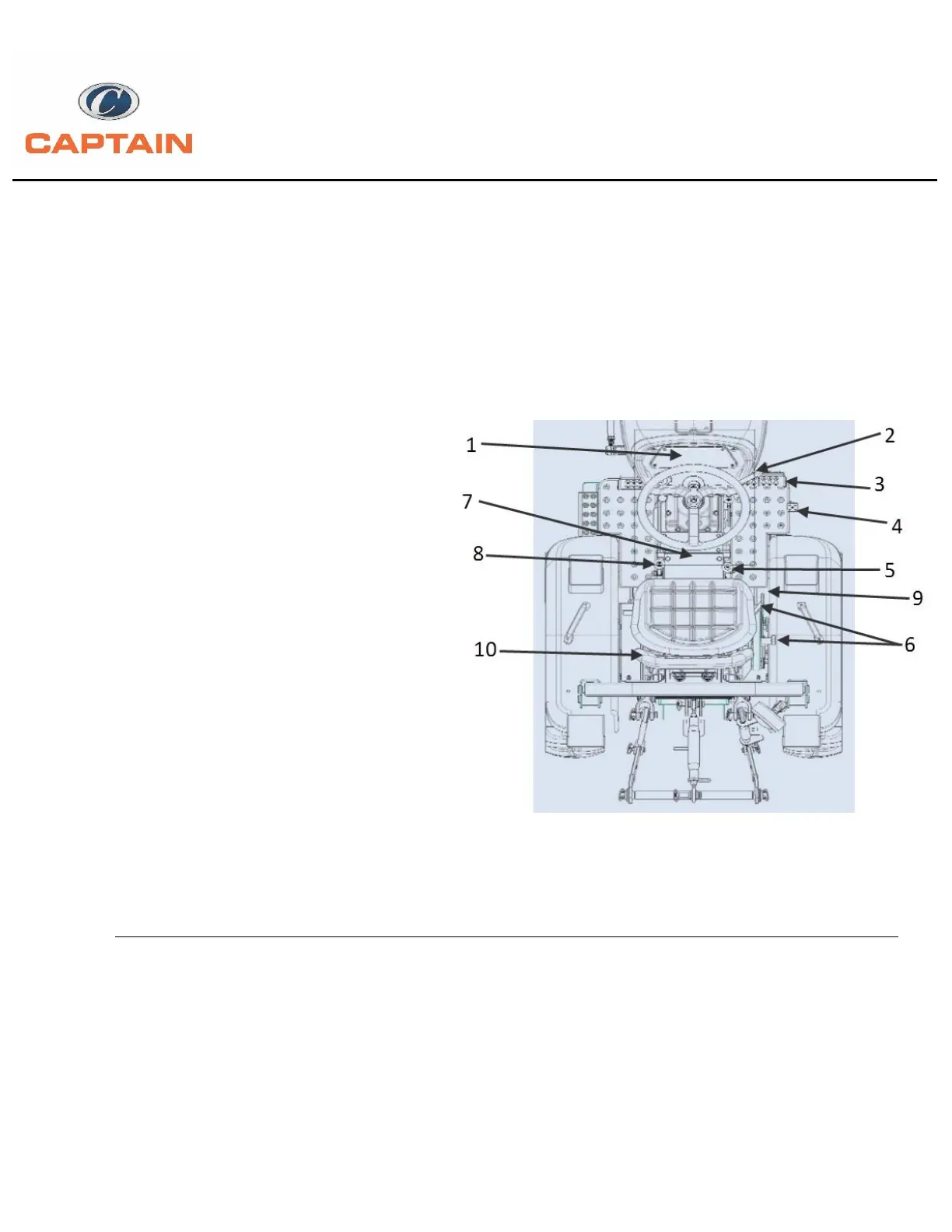

3.1 Instruments and controls
NOTE: Consult the Operation chapter for instructions on how to correctly use the controls.
1. Control and instrument panel.
2. Accelerator hand lever
3. Brake Pedals
4. Accelerator Pedal
5. PTO Lever
6. (a) Hydraulic position control levers
(b) Draft Lever (saffron Colour Lever)
7. Gearshift control lever
8. Speed range selector lever (Hi/Low)
9. Independent parking brake lever
10. Seat belt roll over knob
