OPERATOR MANUAL |CAPTAIN 273 4WD 84
5.29 OPERATION 8

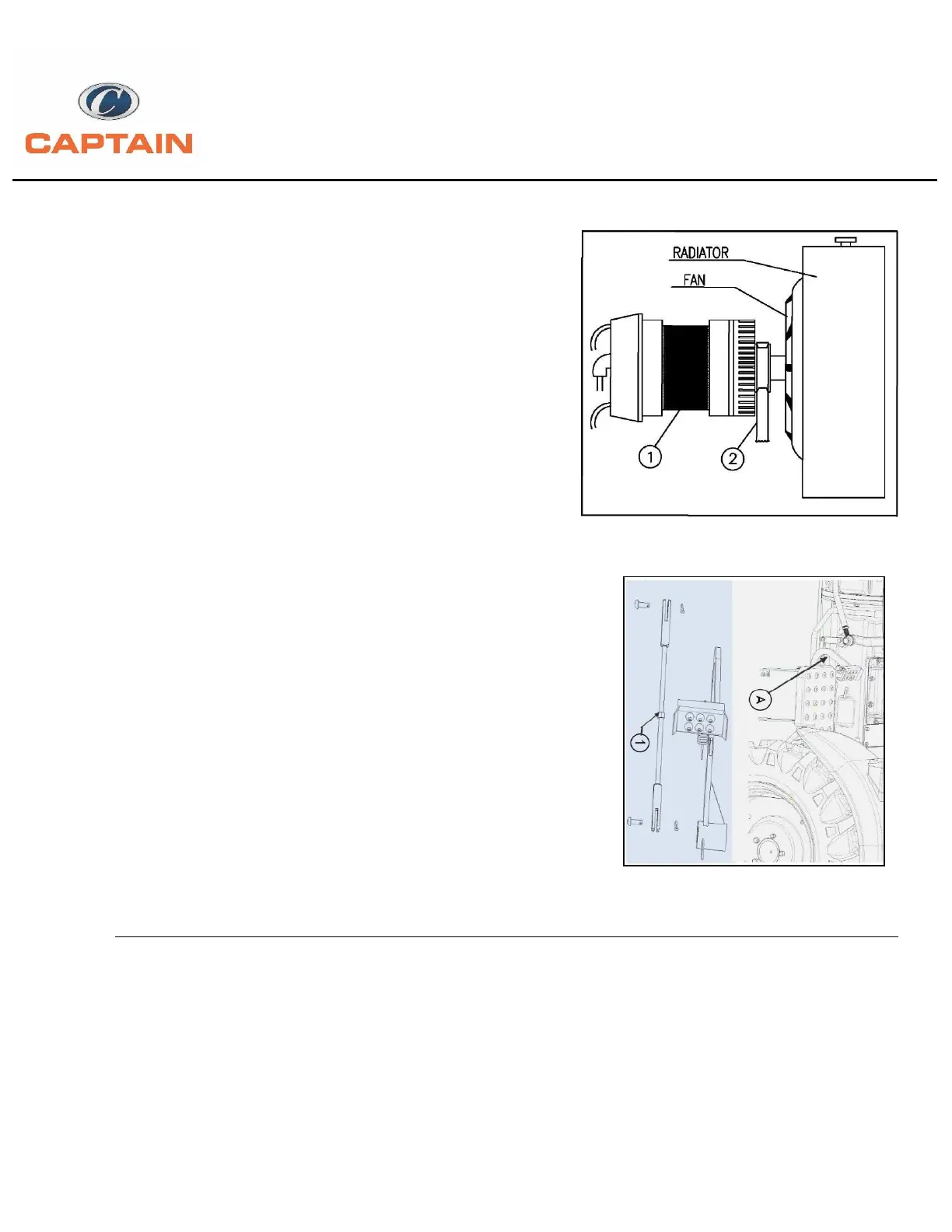

Alternator and fan belt
Periodically check the tension of the alternator (1) and fan
belt (2) in the middle of its long side. It should give 10 mm.
To adjust the belt tension, loosen the fixing screws and check
nut on the idler and move the alternator until the correct
tension has been obtained. Now tighten all the screws and
check nuts.
The belt must be replaced if it is cracked or needs to be
frequently adjusted. This operation must be carried out by
authorized service personnel.
1 Alternator
2 Belt for alternator and fan pulley of radiator
5.24 OPERATION 9
Mechanical gearshift clutch pedal Fig. 5-11
Check the free travel of the gearshift clutch pedal at suitable
intervals. Excessive play reduces the disengaging travel of the
clutch and could prevent the gears from being correctly meshed.
On the other hand, insufficiently play could lead to abnormal wear
on disengaging thrust bearing, overheating and rapid wear on the
clutch itself. Free travel (Fig. 5-11) measured on the pedal should
be 25 mm.
To adjust, proceed as follows:
• Loosen the Fork and check nut (1)
• To restore the pedal travel 'A"
