OPERATOR MANUAL |CAPTAIN 273 4WD 98
5.46

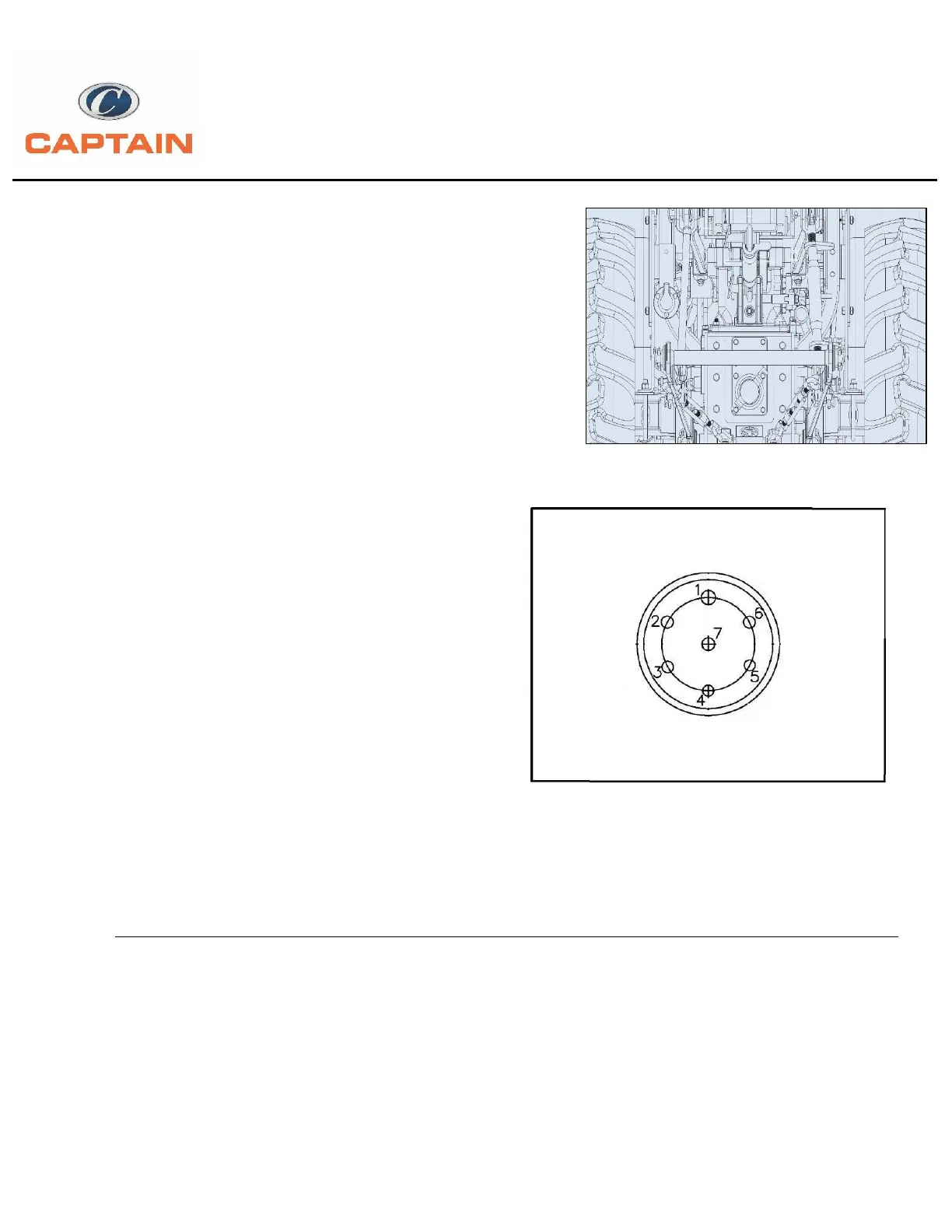

Pole power socket for trailer
Pole power socket is installed on the rear tractor (1) (fig.5-21)
this socket is used to connect the light circuit of the trailer.
Pole power socket for trailer Connections
1. LH turn indicator
2. Ignition
3. Earth
4. RH turn indicator
5. Parking
6. Brake lights
7. Parking
(Fig.5-21)
(Fig.5-22)
