Carel IR33

18 ir33 platform “connections” +030220445 - rel. 2.3 - 27.04.2011
3 7 8 9 10 11 12
PROBES DI
12 1
8 (4) A
8A 2FLA
12LRA
L
N
AUX
R1
R1
EN60730-1
UL 873
1 2 4
-10T60
POWER
SUPPLY
250 V~
LN
IRxxxxExxxx: 230 V~ 25mA~ max
IRxxxxAxxxx: 115 V~ 50mA~ max
IRxxMx0(N,R,C,B)xxx: 12 V~ 300mA~ max, 12...18 Vdc 300mAdc max
SERIAL
and KEY
IRxxM(0,7) (E,A) (A,M,L,T) (0,1,2,3,5)xx
IRxxM(0,7) (E,A,0) (N,R,C,B) (0,1,2,3,5)xx (NO R1)
2
PROBES DI
9 10 11 12
12 1
L
N
R3 R1 R2
8 (4) A
8A 2FLA
12LRA
1 3 4 5 6 7 8
R1 R2 R3
8 (4) A
8A 2FLA
12LRA
EN60730-1
UL 873
5 (1) A
5A 1FLA
6LRA
-10T60
POWER
SUPPLY
250 V~
LN
IRxxxxExxxx: 230 V~ 25mA~ max
IRxxxxAxxxx: 115 V~ 50mA~ max
SERIAL
and KEY
IRxxF(0,7) (E,A) (N,R,C,B) (0,1,2,3,5)xx
6 7
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
1 2 3 4 5 8 9 10 11 12
13 14 15
PROBES DI DI
L
N
LN
12 12
R3
R1 R2
R1 R2 R3
12 (2) A
12A 5FLA
30LRA
EN60730-1
UL 873
-10T60
POWER
SUPPLY
250 V~
LN
115...230 V~ 50mA~ max
tLAN
interface
SERIAL
and KEY
IRxxF(0,7) H (N,R,C,B) (0,2)xx
6 7
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
1 2 3 4 5 8 9 10 11 12
13 14 15 16 17 18
PROBES DI DI
L
N
LN
AUX
12 12
R3
R1
R4
R2
R1 R2 R3 R4
12 (2) A
12A 5FLA
30LRA
EN60730-1
UL 873
-10T60
POWER
SUPPLY
250 V~
LN
115...230 V~ 50mA~ max
tLAN
interface
SERIAL
and KEY
IRxxC(0,7) H (N,R,C,B) (0,2)xx
6 71 2 3 8 9 10 11 12
PROBES DI DI
LN
12 12
R1
R1
12 (2) A
12A 5FLA
30LRA
EN60730-1
UL 873
AUX
-10T60
250 V~
IRxxxx0xxxx: 12 V~ 300mA~ max, 12...18 Vdc 300mAdc max
IRxxxxLxxxx: 12...24 V~ 300mA~ max, 12...30 Vdc 300mAdc max
SERIAL
and KEY
IRxxM(0,7) (0,L) (A,M,L,T) (0,2)xx
IRxxM(0,7) (L) (N,R,C,B) (0,2)xx (NO R1)
6 7
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
1 2 3 4 5 8 9 10 11 12
13 14 15
PROBES DI DI
L
N
LN
12 12
R3
R1 R2
R1 R2 R3
12 (2) A
12A 5FLA
30LRA
EN60730-1
UL 873
-10T60
250 V~
IRxxxx0xxxx: 12 V~ 300mA~ max, 12...18 Vdc 300mAdc max
IRxxxxLxxxx: 12...24 V~ 300mA~ max, 12...30 Vdc 300mAdc max
tLAN
interface
SERIAL
and KEY
IRxxF(0,7) (0,L) (N,R,C,B) (0,2)xx
6 7
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
8 (4) A
8A 2FLA
12LRA
1 2 3 4 5 8 9 10 11 12
13 14 15 16 17 18
PROBES DI DI
L
N
LN
AUX
12 12
R3
R1
R4
R2
R1 R2 R3 R4
12 (2) A
12A 5FLA
30LRA
EN60730-1
UL 873
-10T60
250 V~
IRxxxx0xxxx: 12 V~ 300mA~ max, 12...18 Vdc 300mAdc max
IRxxxxLxxxx: 12...24 V~ 300mA~ max, 12...30 VDC 300mAdc max
tLAN
interface
SERIAL
and KEY
IRxxC(0,7) (0,L) (N,R,C,B) (0,2)xx
ENGLISH

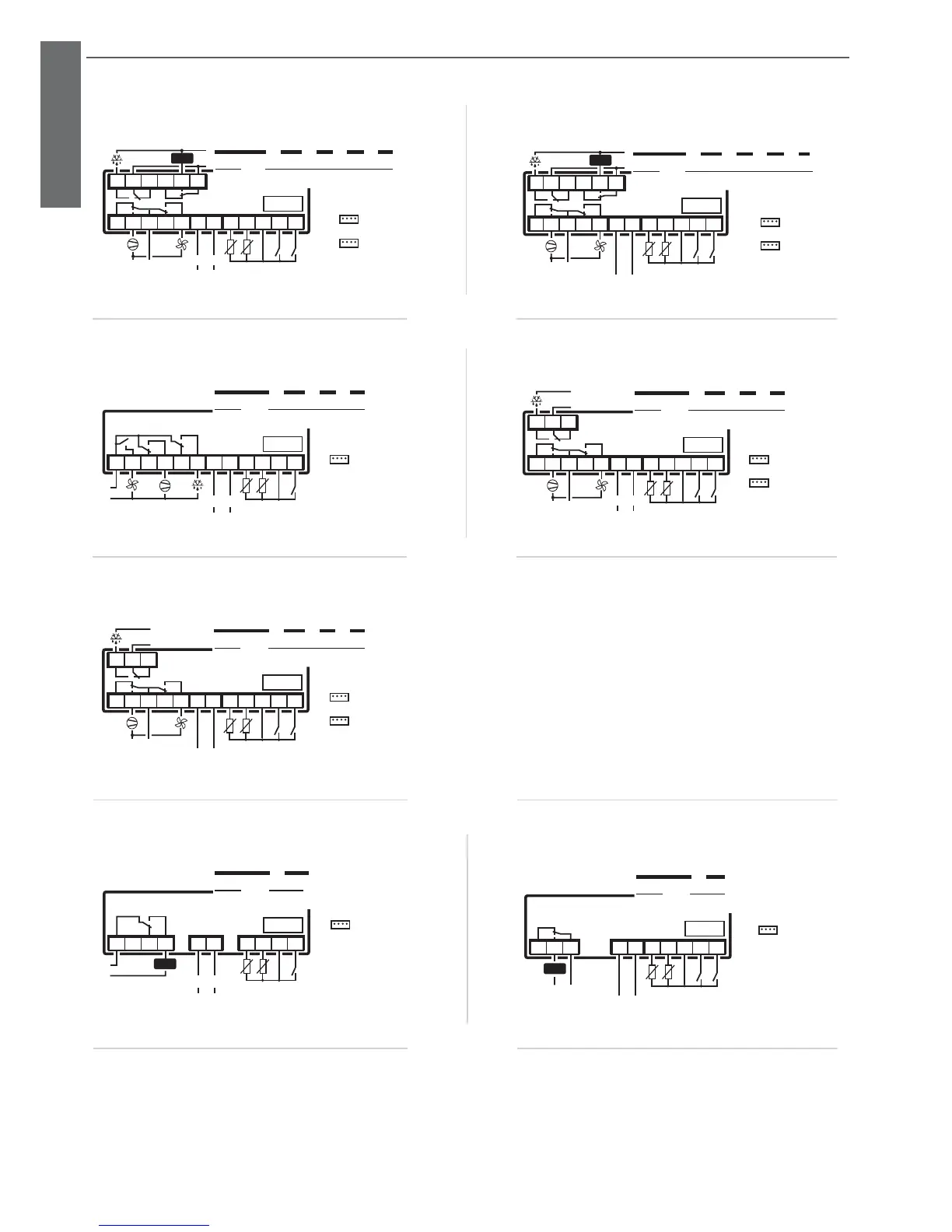

4.3 Electrical connections
Maximum total current on terminal 3: 12 A
Maximum total current on terminal 3: 12 A
Maximum total current on terminal 1: 12 A
Maximum total current on terminal 3: 12 A
Maximum total current on terminal 3: 12 A
