CONNECTION OF THE OPTIONAL BOARDS
Serial printer
It is possible to use the serial printer only if the pCO terminal with the
following code is available:
PC0T00SL60 terminal unit with 6-digit LED display.
This terminal unit is equipped with a dedicated 9-pole male connector
(connector A,
Fig. 28
).
It is possible to use the serial printer only if the pCO terminal with the
following code is available: PC0T00SL60 terminal unit with 6-digit LED
display.
This terminal unit is equipped with a dedicated 9-pole male connector
(connector A), for connection to the printer through a 9/25-pole serial cable
for printer (9 poles on the pCO side, 25 poles on the printer side). The
printer must be with communication serial port RS232. The printer must be
programmed with the following data:
- 1200 bauds;
- no parity;
- 8 data bits;
- 1 or 2 stop bits.

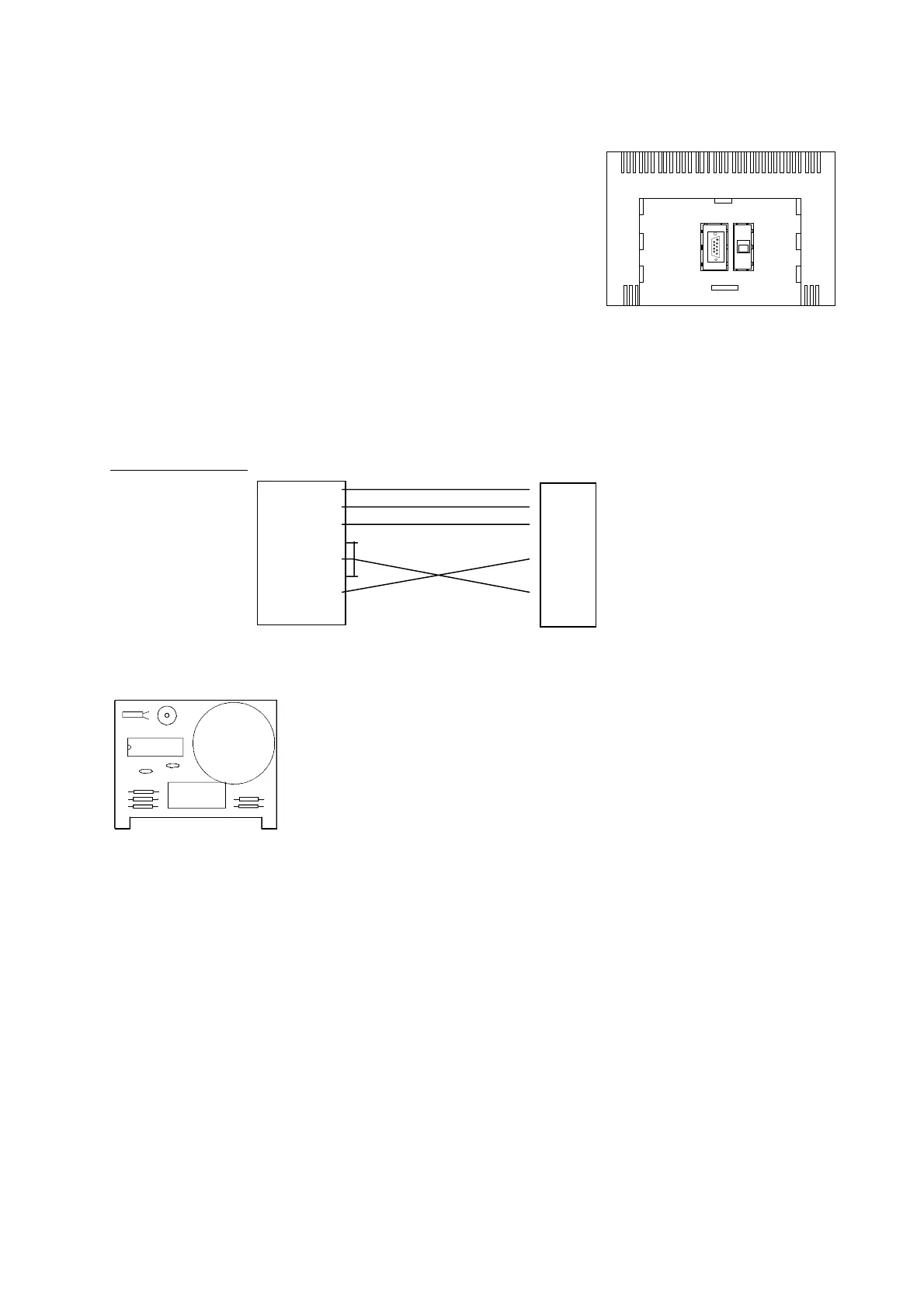

Serial cable for printer
Clock board
This figure shows the real time clock board (code CLK0000000) which allows to display
date and time. This board is necessary when a time-band control action is required.
In case of power failure, a rechargeable lithium battery (45 mA/h; max. recharge
time=12 h) will make the board work for more than one month.
AB
Fig. 28. Rear part of the pCO’s unit
TX 2
RX 3
GND 5
CTS 8
DSR 6
CD 1
DTR 4
Fig. 29. Clock board
2
3
7
5
6
8
20
25 pole_male
connector, printer side
9 pole_female
connector, pCO
