Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
174 Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017

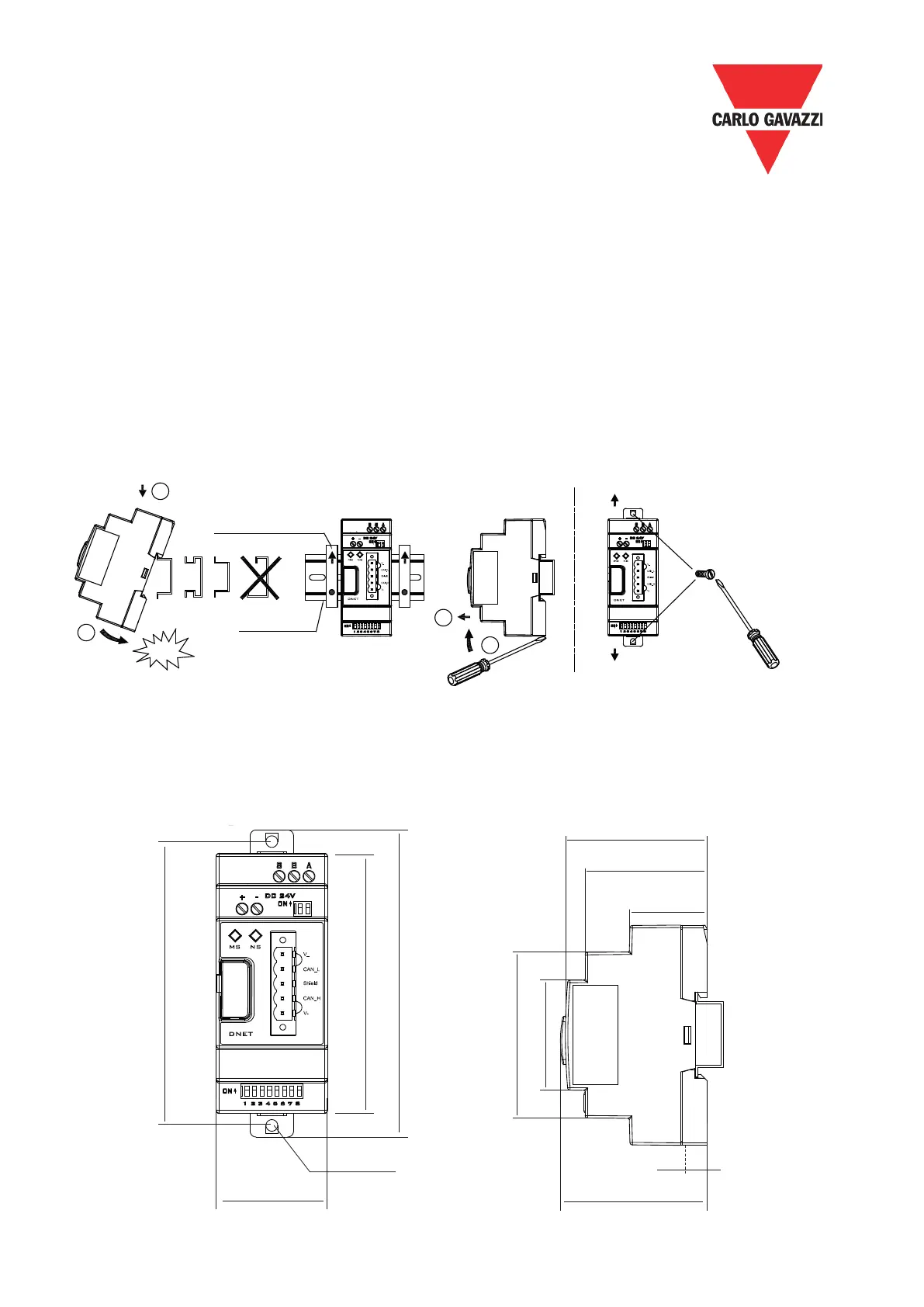

Figure 2.1: Fixed Installation
2. Installation
2.1. Installation and Dimensions
• Installation
RV-DNET Module can be installed vertically shown as the left side of Fig. 2.1. Fix the module
to DIN rail and the rail is gripped accurately to the plastic groove. It is suggested to add clips
at rail terminal to fix it. It is also suggested to install the screw M4 directly to RV-DNET module,
shown as the right side of Fig.2.1.
• Dimensions
Unit: mm (1 inch=25.4mm)
Mounting clamp
1
2
1
2
Din Rail
(35mm Wide)
M4x20 (#8x32)
Click
38
2 - Ø 4.5
106
90
98
57.3
49.3
31.5
5
59.3
35.4
68
45
To Next Page
