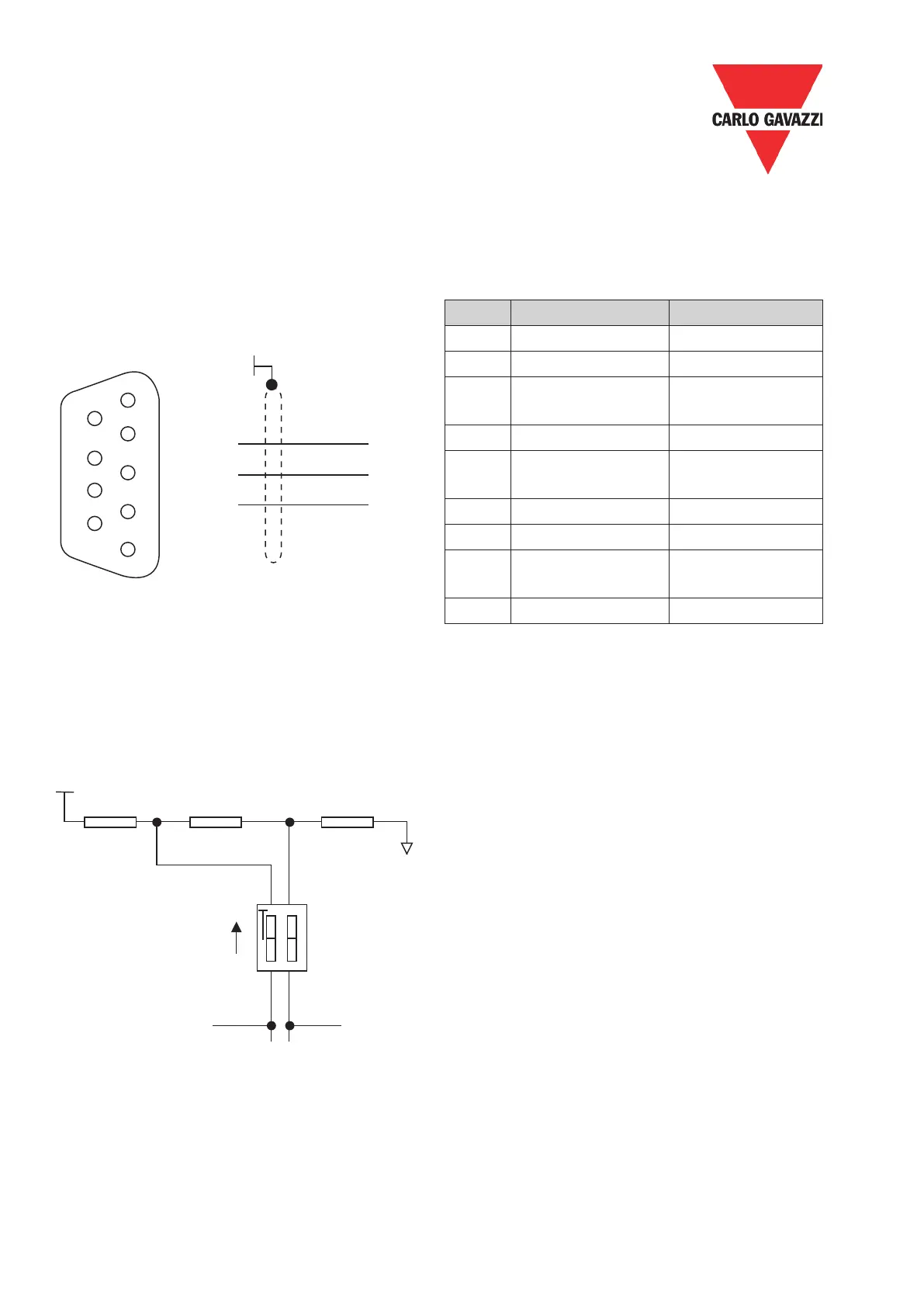

2.4. Connect with PROFIBUS-DP Bus
2.5. Bus Terminating Resistors
Please use a 9-pole D-SUB to connect the RV-PDP module to the PROFIBUS-DP field bus.
For this use the special PROFIBUS-DP plug and the special PROFIBUS-DP cable.
The type of cable used determines the permissible maximum bus length and the transfer rate.
The first and last station in a bus segment
must be connected to the bus with the bus
terminating resistor switched on.
RV-PDP modules have integrated bus
termination.
The 2bit DIP switch of module enables the bus
terminating resistors to be switched on.
5
4
9
8
7
6
3
2
1
B-Line
A-Line
2 M
Pin Signal name Designation
1 Not assigned -
2 Not assigned -
3 RXD/TXD-P
(B- Line)
Receive/Send
data -P
4 Not assigned -
5 DGND (2M) Data reference
potential
6 Not assigned -
7 Not assigned -
8 RXD/TXD-N
(A-Line)
Receive/Send
data -N
9 Not assigned -
Bus terminating resistor
390Ω
V-
B+
ON
2
1
3
4
A-
220Ω390Ω
5V
