CARLO GAVAZZI VariFlex3 RVLF Series User Manual

12 Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017
Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
Provide sufcient air circulation space for cooling as shown in examples below.
Install the Inverter on surfaces that provide good heat dissipation.
Single unit Installation
Install the inverter verticality to obtain effective cooling
Frames 1 & 2.
Provide the necessary physical space and
cooling based on the ambient temperature
and the heat loss in the panel.
Side by side Installation

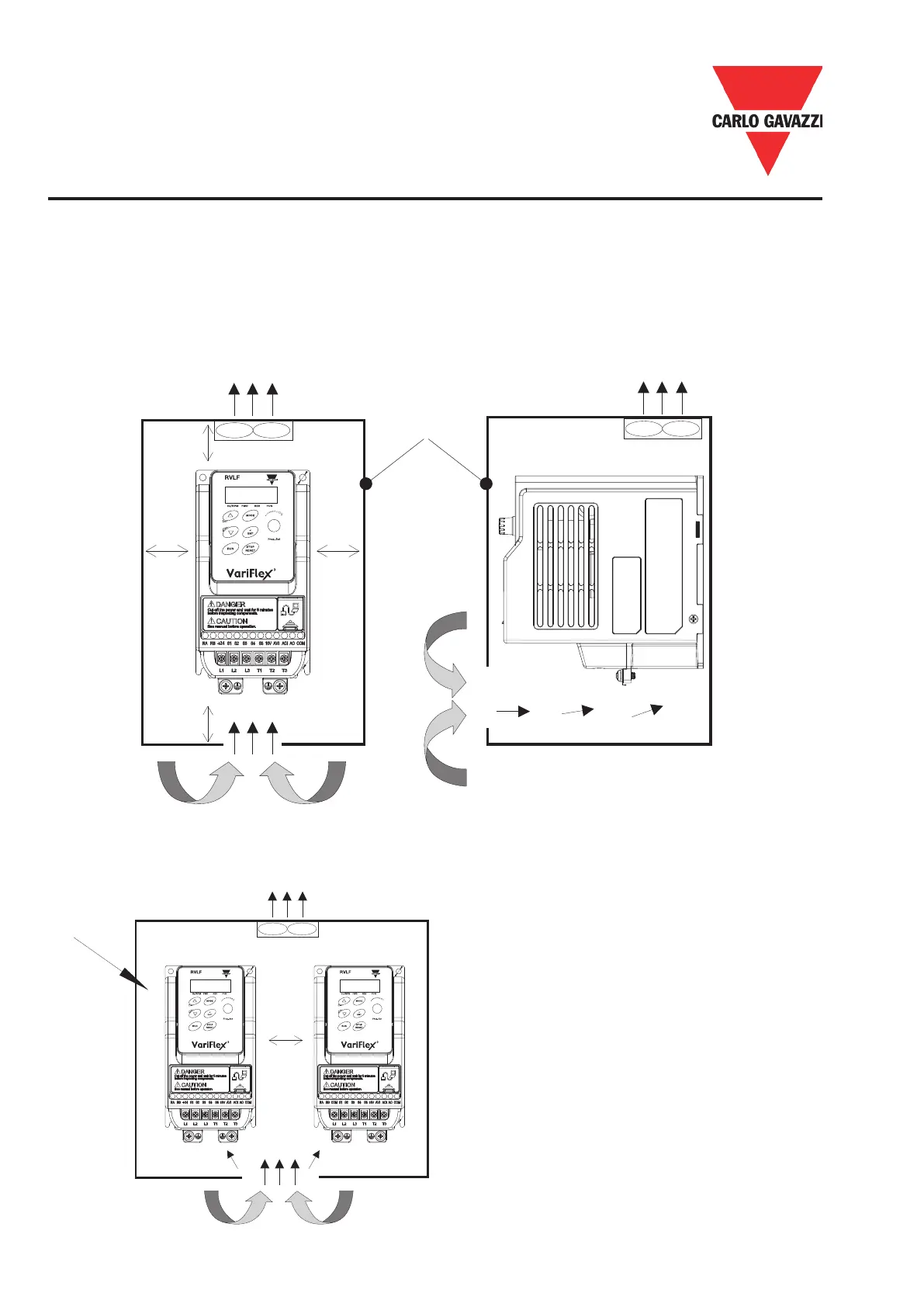

3.2.2. Installation Space
Control
Panel
Fan
12cm
12cm
Front view Side view
5cm
5cm
5cm
Fan
Control
Panel
Control
Panel
Fan
12cm
12cm
Front view Side view
5cm
5cm
5cm
Fan
Control
Panel
