2.1. Installation and Dimension
• Installation

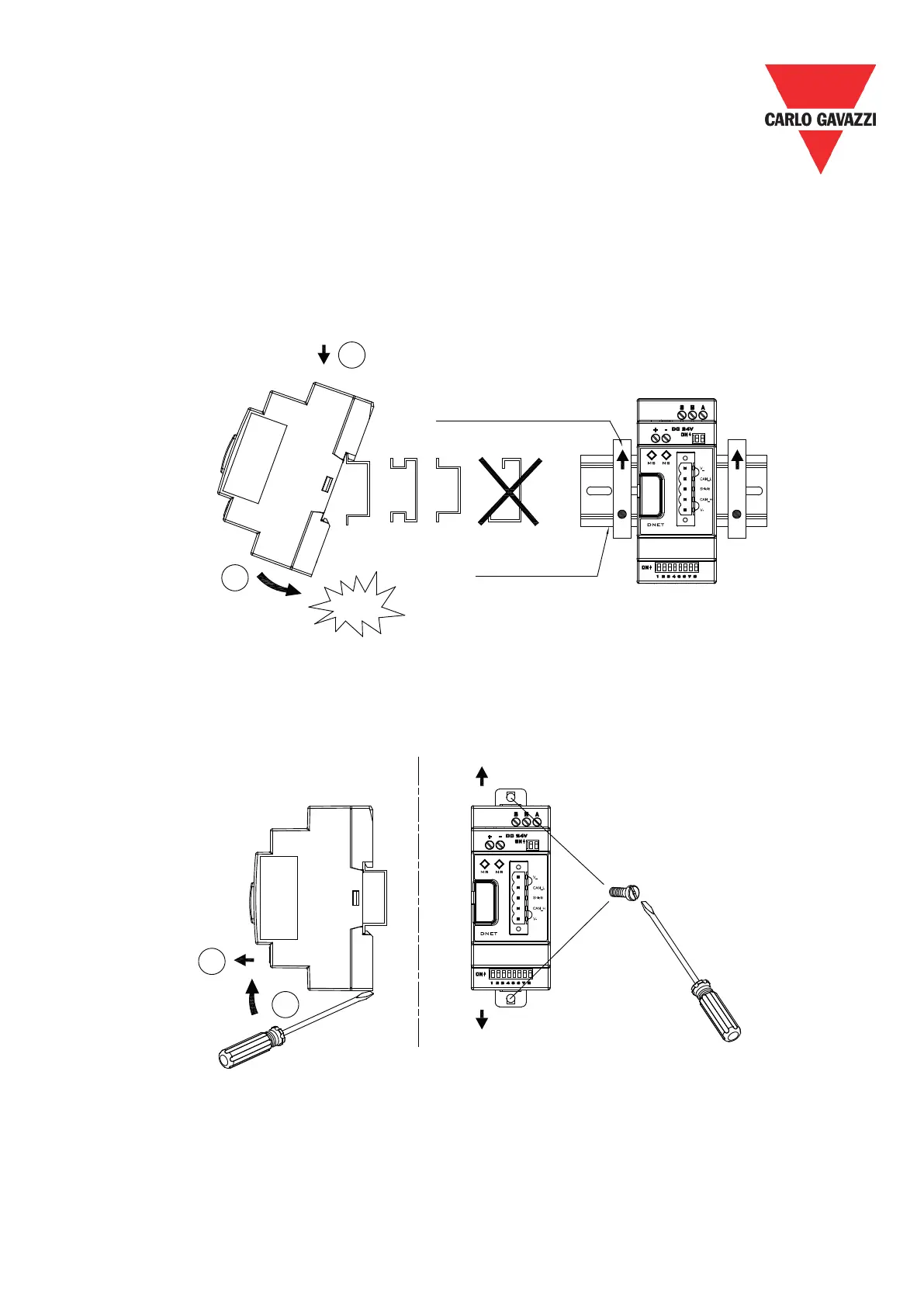

The RV-PDP module should always be mounted vertically. Press the slots on the back of the
module onto the rail until the plastic clamps hold the rails in place.
Use M4 screws to direct mount the PBUS module as shown Figure 2.
2. Installation
Mounting clamp
1
2
Din Rail
(35mm Wide)
Click
1
2
M4x20 (#8x32)
To Next Page
