Carlton SP4012 - Page 96

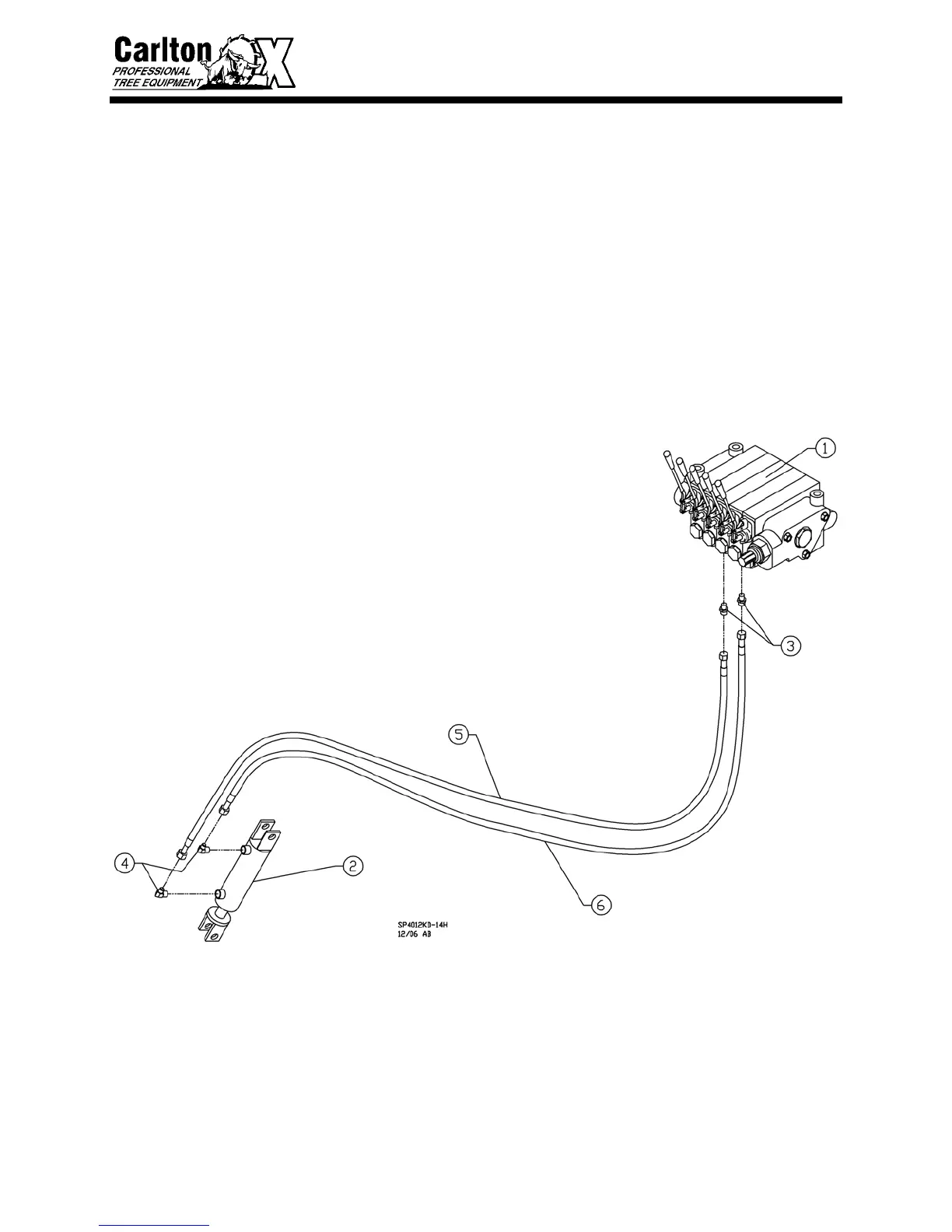

SP4012 HYDRAULIC ASSEMBLY
76
OPTIONAL:
BLADE HYDRAULIC ASSEMBLY
ITEM NO PART NO DESCRIPTION QTY
1 0300199 Work Section 1
2 0300105A Hydraulic Cylinder – 2x4 1
3 0300257 3/8 JIC- 1/2 ORB - 6400-6-8 2
4
1/2" O-Ring - 3/8” JIC 90°
2
5 Hose Assembly
1
6 Hose Assembly
1
