Carrier TRANSICOLD Vector 8600MT - Fuse Identification and Purpose; Power Module (PM) Fuses

62-11648 48
26. Fuses
Fuses are located in the Control Box (engine side of unit) and either the
Power Control Module (PCM) or the Power Module (PM), which is located
above the battery. Fuses in the Control Box are 600 VAC and fuses in the
PCM/PM are 12 VDC.

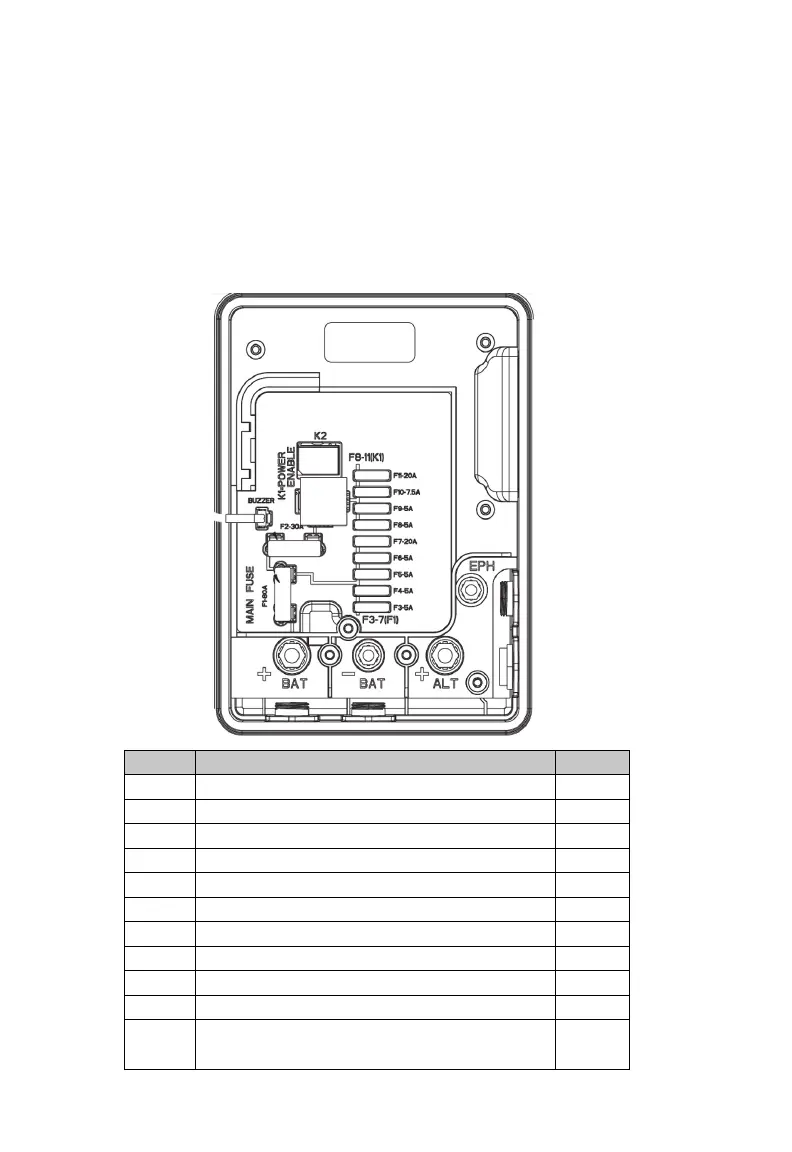

Figure 1.1 Power Module (PM)
AmpsPurpose Fuse
80MainF1
30Power Enable Relay (PER)F2
5Battery Guard (Option)F3
7.5ENCU / Remote Panel (Option)F4
5Micro / Stepper Module (MSM)F5
5LogicF6
20Fuel Heat (Option)F7
5Not UsedF8
5Light Bar/Satellite PowerF9
7.5CCB / EESF10
20System Loads (LIV, CDCON1/2,
EVCON, FHR, AFAR, FP, SS)
F11
