92 Specifications subject to change without notice. 38MGR-04SM
DISASSEMBLY INSTRUCTIONS SIZE 30 (CONT)

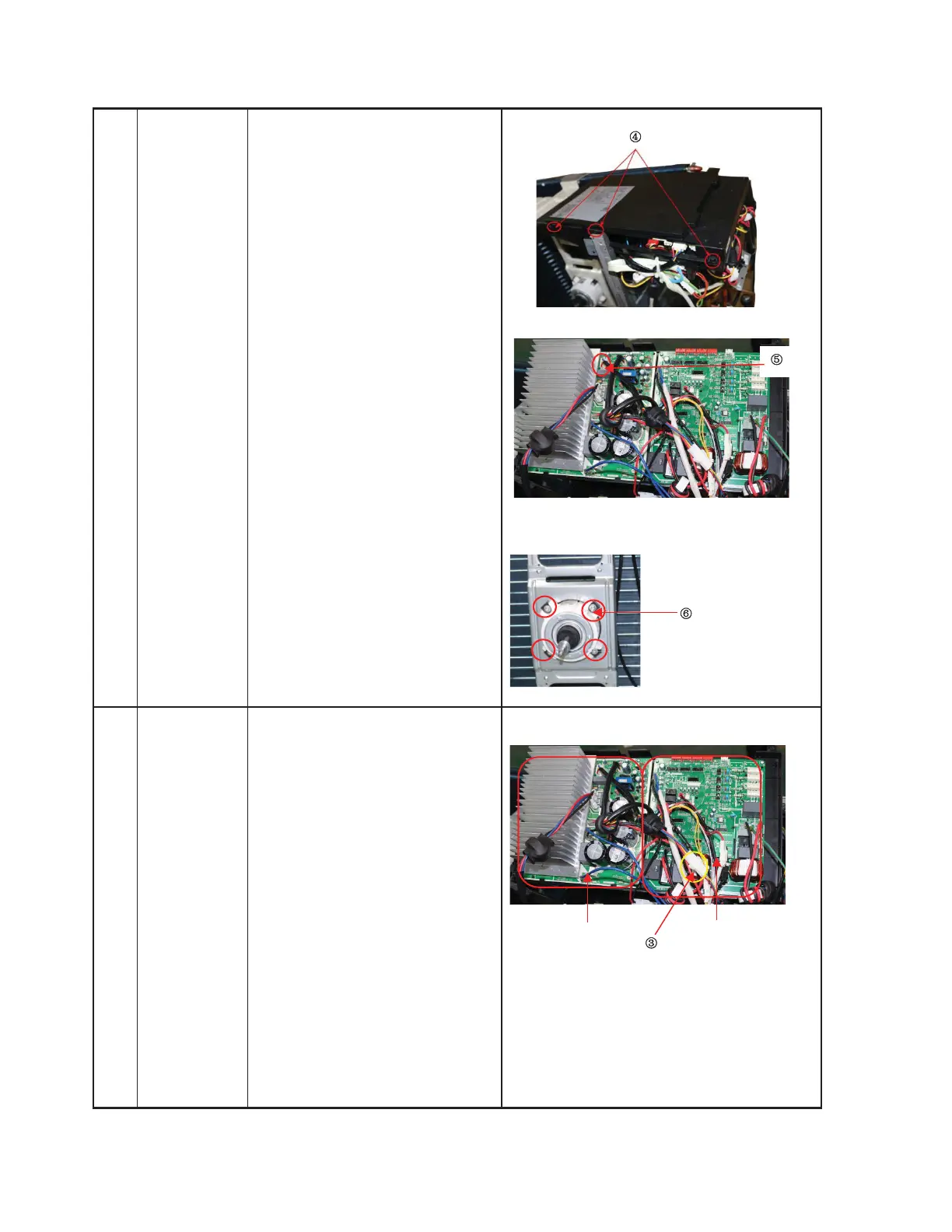

3) Remove the fan.
4) Undo the hooks, remove
the screws, and then open
the electrical control box.
5) Disconnect the fan motor
connector CN19 (3P, white)
from the driver board.
6) Remove the screws (4) and
then remove the fan motor.
3 Electrical
parts
How to remove the electrical
parts.
1) Complete the steps in the
“Panel Plate and ”Fan
Assembly” sections.
2) Remove the connector.
3)
Remove the compressor
connector.
4) Remove the PFC inductor
connector.
Driver board
PCB board
