Steps
Procedure

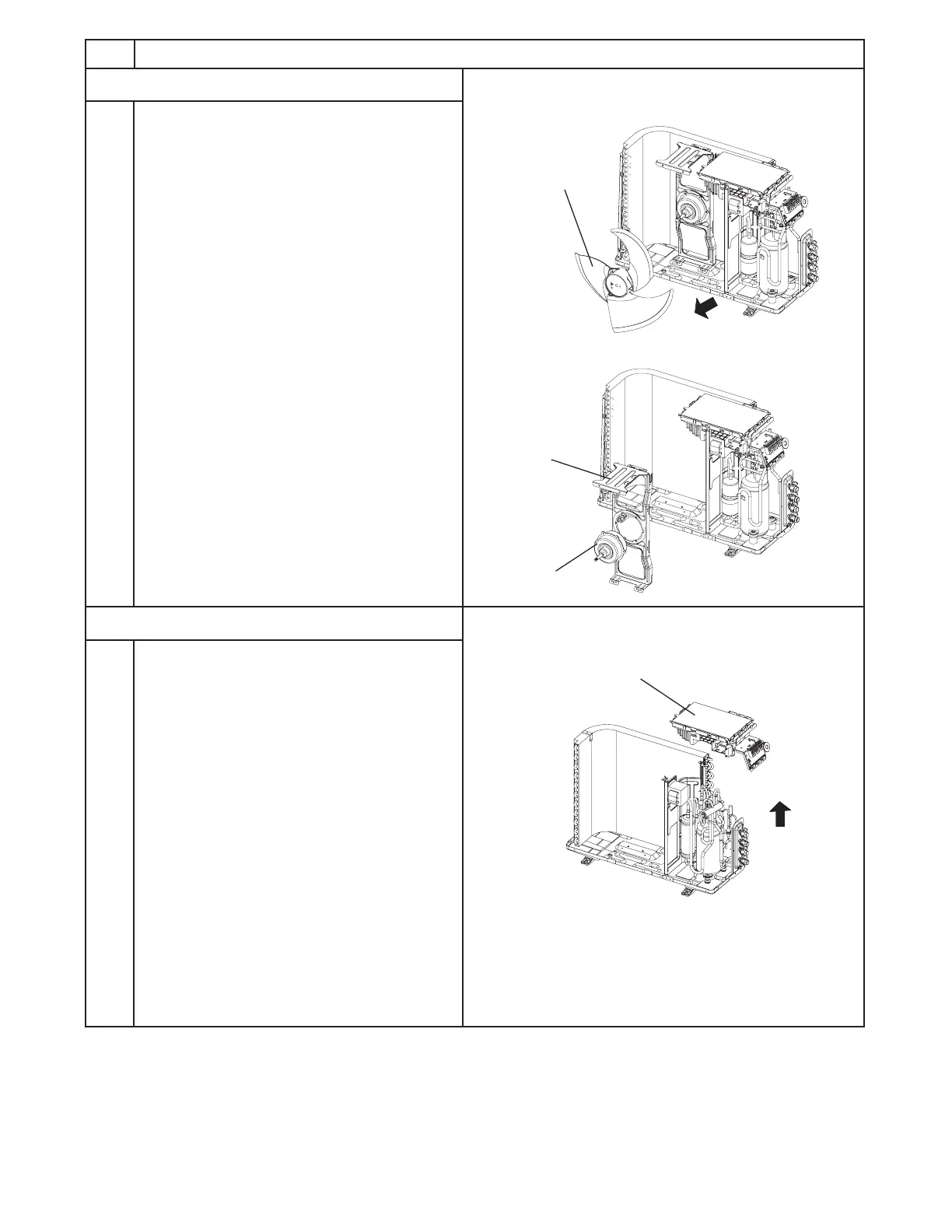

Remove the screws retaining the control box
sub-assembly; loosen the wire bundle; remove the
wiring terminals and then lift the control box upwards
to remove it.
5.Remove control box assembly
Control Box
Remove the nut retaining the blade to the motor shaft,
then remove the fan blade.
Fan Blade
4.Remove the fan blade
Fan Motor
Support
Remove the four (4) screws retaining the motor;
disconnect the motor wiring, then remove the motor.
Remove the two (2) screws retaining the motor
support; then lift the motor support upwards to
remove it.
Fan Motor
2
1
