DIMENSIONS -- OUTDOOR
35.1 (892)
37.2 (946)
27.6 (700)
15.6 (396)
13.4 (341)
22.0 (560)
14.5 (368)
Unit: in. (mm)
A12553

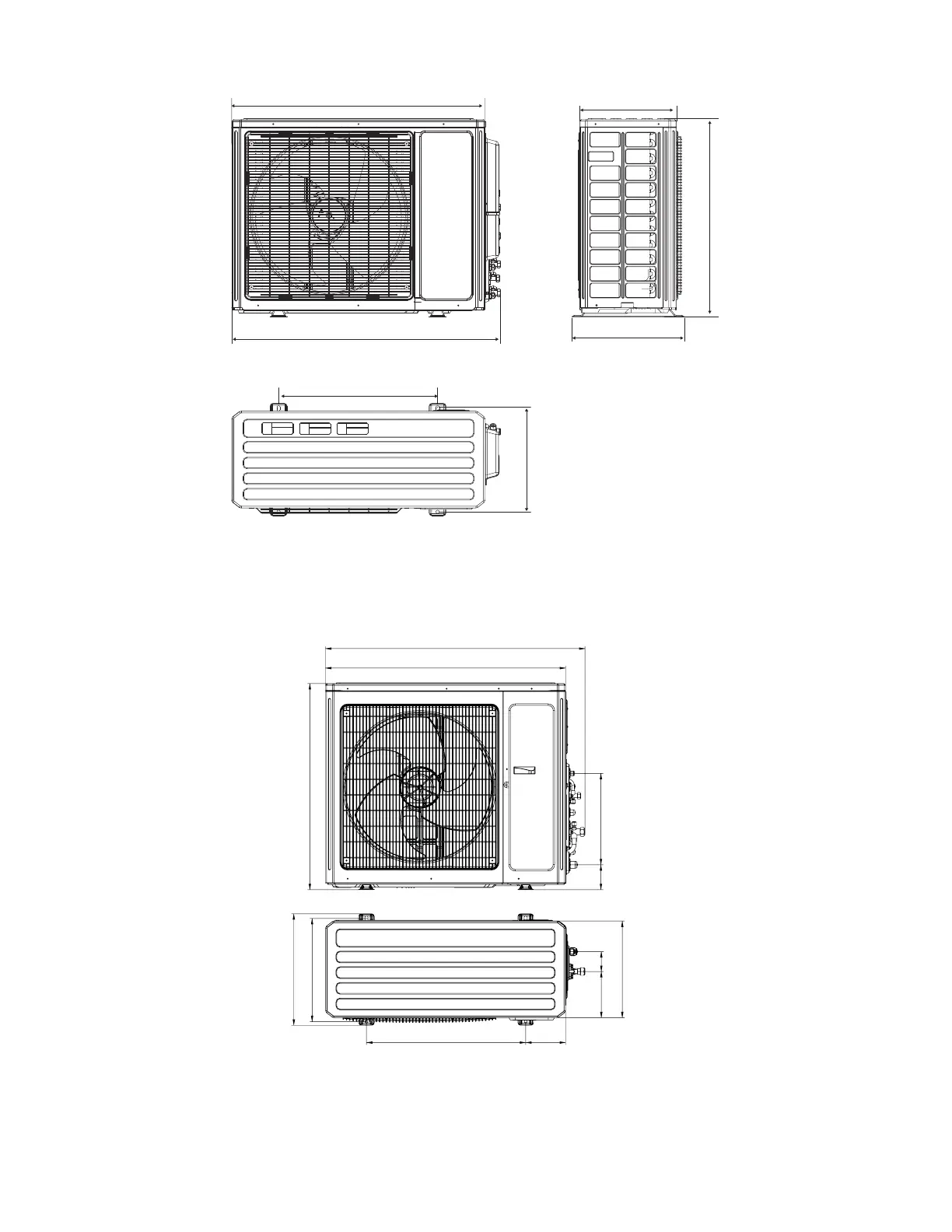

Fig. 4 – 38GVM024/030
024 Weight, lb (kg): Gross -- 146 (66.2) / Net -- 135 (61.2)
030 Weight, lb (kg): Gross -- 148 (67.1) / Net -- 137 (62.1)
3.0
(76)
13.8 (350)3.8
(96)
36.2 (920)
31.1 (789)
39.1 (994)
6.0
(153)
24.0 (610)
16.8 (427)
15.6 (395)
14.6 (370)
7.0
(177)
Unit: in. (mm)
A12554
Fig. 5 – 38GVM036
Weight, lb (kg): Gross -- 172 (78) / Net -- 161 (73)
