52

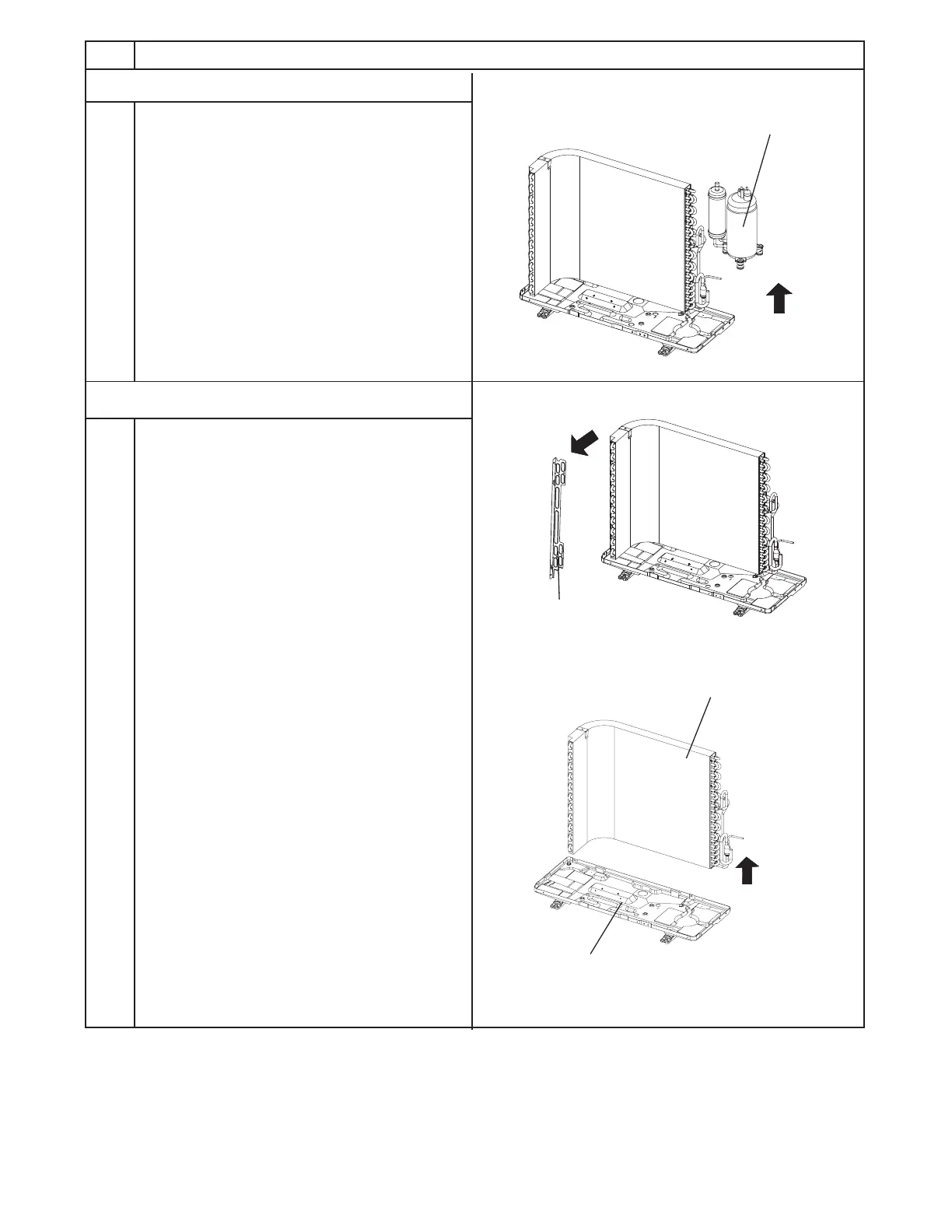

12. Remove compressor

Steps

Procedure

Remove three (3) nuts from compressor mounting bolts,

then lift compressor from base pan.

Remove the condenser from the base pan.

13. Remove condenser

Compressor

Remove the screws retaining the support and

condenser assembly. Then remove the support.

Support

2

1

Condenser

Base Pan
