58TP0B/58TP1B: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
2
A190084

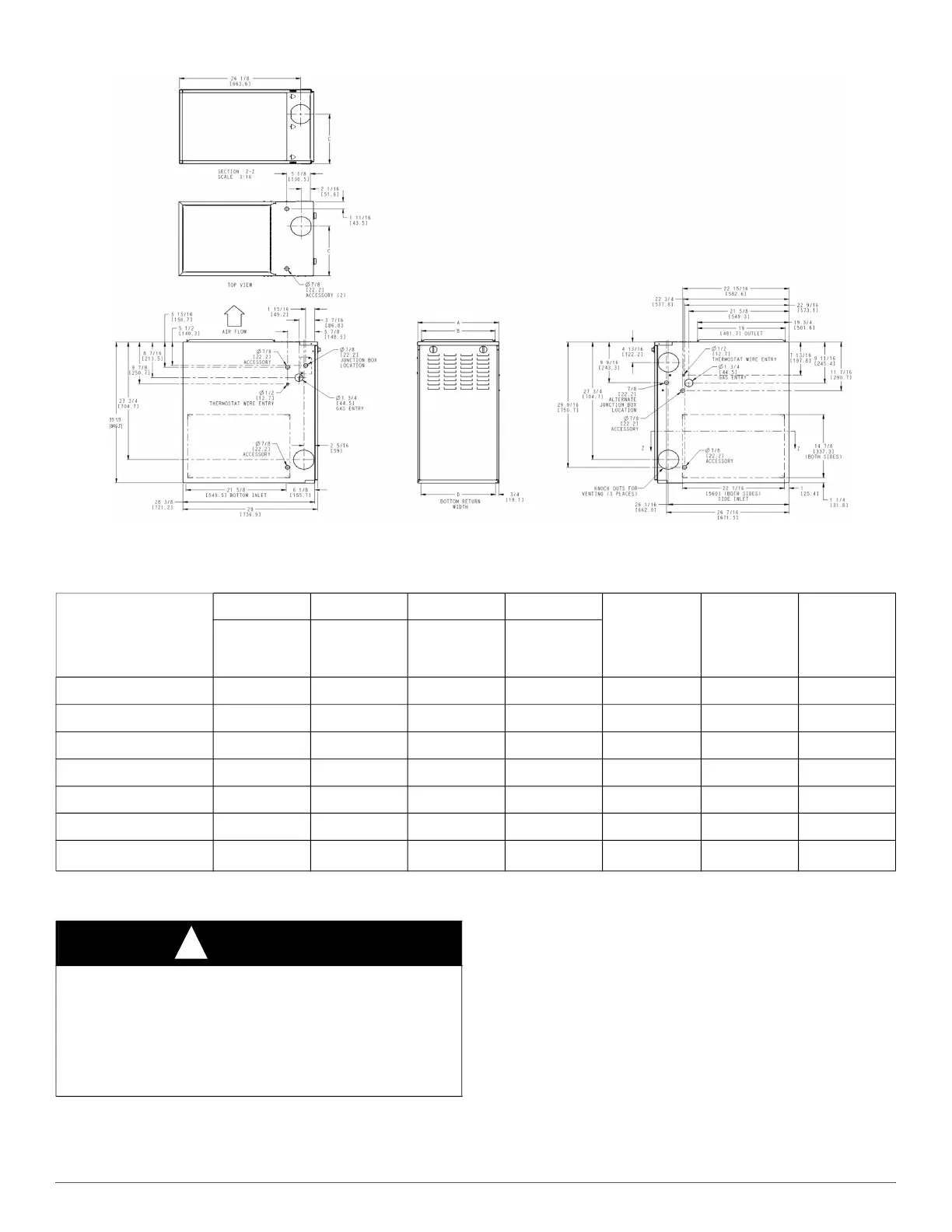

Fig. 1 – Dimensional Drawing
Most states in the USA and jurisdictions in Canada have laws that
require the use of Carbon Monoxide (CO) alarms with fuel burning
products. Examples of fuel burning products are furnaces, boilers, space
heaters, generators, water heaters, stoves/ranges, clothes dryers,
fireplaces, incinerators, automobiles, and other internal combustion
engines. Even if there are no laws in your jurisdiction requiring a CO
Alarm, it’s highly recommended that whenever any fuel burning product
is used in or around the home or business that the dwelling be equipped
with a CO Alarm(s). The Consumer Product Safety Commission
recommends the use of CO Alarm(s). The CO Alarm(s) must be
installed, operated, and maintained according to the CO Alarm
manufacturer’s instructions. For more information about Carbon
Monoxide, local laws, or to purchase a CO Alarm online, please visit the
following website. https://www.kidde.com.
Table 1 – Dimensions
FURNACE SIZE
A B C D
VENT
CONNECTION
SIZE
SHIP WT.
LB (KG)
ACCESSORY
FILTER
MEDIA
CABINET SIZE
CABINET
WIDTH
OUTLET
WIDTH
TOP AND
BOTTOM FLUE
COLLAR
BOTTOM
INLET WIDTH
045V14--12 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12-11/16 (322) 4 (102) 114 (51.7) 16 (406)
070V14--12 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12-11/16 (322) 4 (102) 119 (54.0) 16 (406)
070V17--16 17-1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 134 (60.8) 16 (406)
090V17--16 17-1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 139 (63.0) 16 (406)
090V21--20 21 (533) 19-3/8 (492) 13-5/16 (338) 19-1/2 (495) 4 (102) 149 (67.6) 20 (506)
110V21--22 21 (533) 19-3/8 (492) 13-5/16 (338) 19-1/2 (495) 4 (102) 155 (70.3) 20 (506)
135V24--22 24-1/2 (622) 22-7/8 (581 15-1/16 (383) 23 (584)
4 (102)
*
*. 135 size furnaces require a 5 or 6-in. (127 or 152 mm) vent. Use a vent adapter between furnace and vent stack. See Installation Instructions for complete
installation requirements.
173 (78.5) 24 (610)
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal injury and/or
death.
Carbon Monoxide (CO) is a colorless, odorless, and tasteless poisonous
gas that can be fatal when inhaled. Follow all installation, maintenance,
and service instructions. See additional information below regarding
the installation of a CO Alarm.
