58TP0B/58TP1B: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
24
A03211

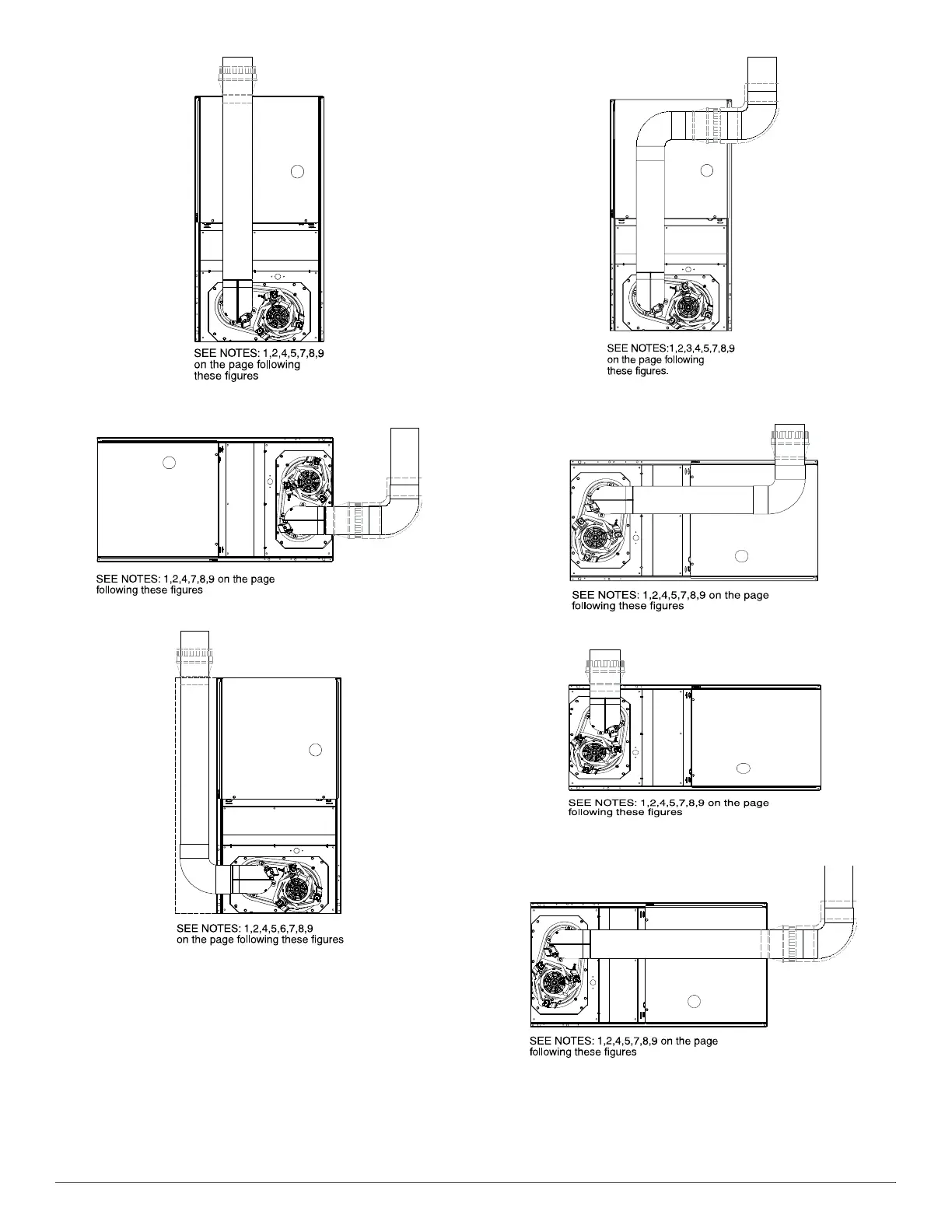

Fig. 36 – Downflow Application - Vent Elbow Up
A03218
Fig. 37 – Horizontal Right Application - Vent Elbow Right
A03207
Fig. 38 – Downflow Application - Vent Elbow Left then Up
A03212
Fig. 39 – Downflow Application - Vent Elbow Up then Right
A03214
Fig. 40 – Horizontal Left Application - Vent Elbow Right then Up
A03215
Fig. 41 – Horizontal Left Application - Vent Elbow Up
A03216
Fig. 42 – Horizontal Left Application - Vent Elbow Right
