14-3/16 and 17-1/2-in.
Furnace
m
16-in. Media Cabinet
Media Cabinet lnstallatig-n
Side Return
it ,4
21- or 24-1/2-in.
Furnace
Up to 5-rlbn AC
capacity airflow
20- or 24-in. Media
Cabinet
Bottom Return Plenum
m
20- or -24-in. Media Cabinet Installation
for Combination Side and Bottom Return
21-in. Furnace
4:Ibn or less, AC
capaci b, airflow
4-in.
Block Off
Plate
20-in. Media Cabinet
Media Cabinet Installation Option for
4-Ton or Less A/C Capacity
it ,4
21-in, Furnace
up to 5-Ton AC
Capacity
24-1/2-in. Furnace
up to 4-Ton AC
Capacity
<_45 °
Transition j
20- or 24-in. Media Cabinet
20- or -24-in. Media Cabinet Installation
with Angled Transition
14 3/16 in. Furnace
H
Screw } ._1 I_. =:Screw
14-3/16-in. Furnace with Filler Plates, Centered
14 3/16 in. Furnace
Ncrews]l 5
14-3/16-in. Furnace with Filler Plates, Off-Set to Right
A11437

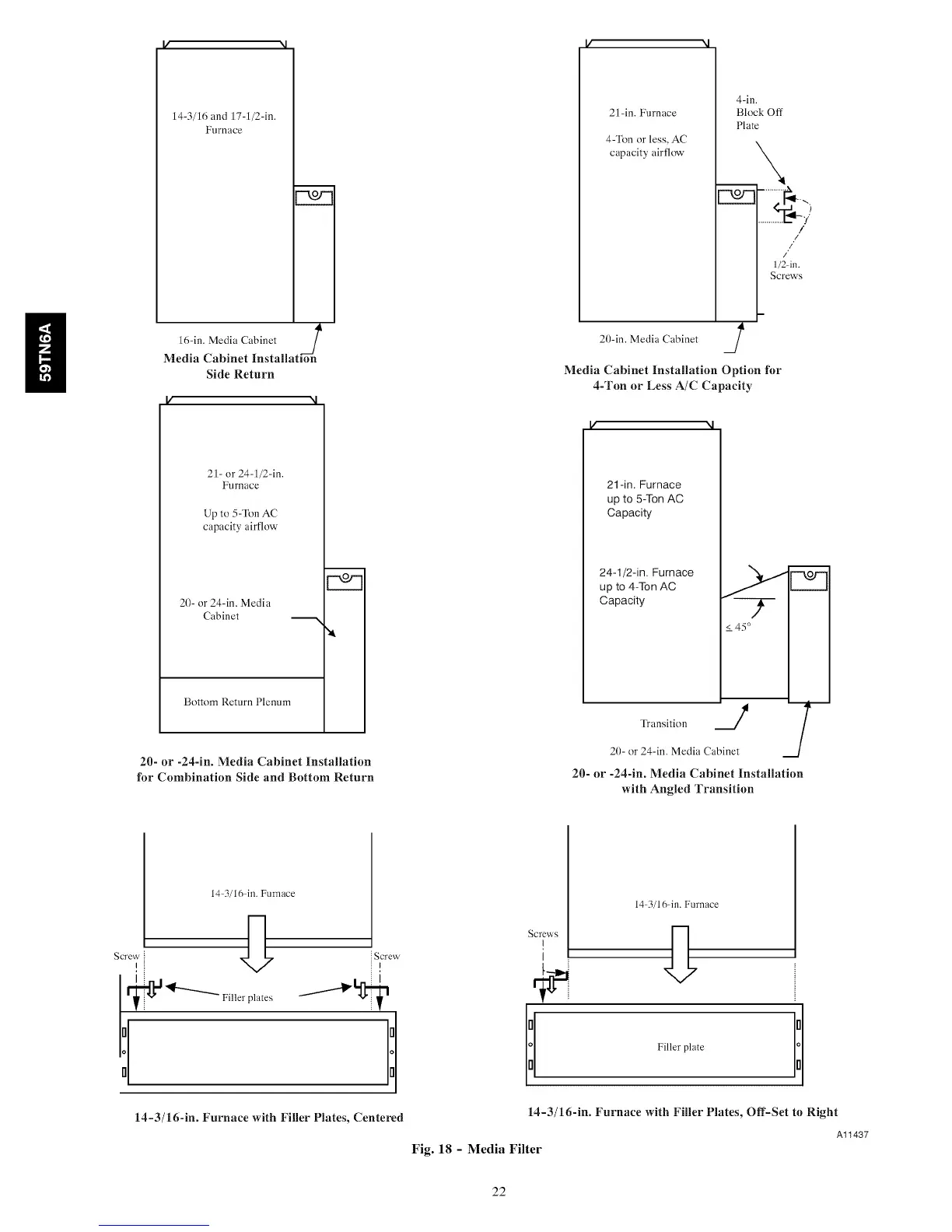

Fig. 18 - Media Filter
22

Carrier 59TN6A Specifications

General

Model	59TN6A
Type	Gas Furnace
Stages	Two-stage
Blower Type	Variable-speed
Fuel Type	Natural gas
Heating Capacity	40, 000 to 120, 000 BTU/h
Warranty	10-year parts limited warranty
