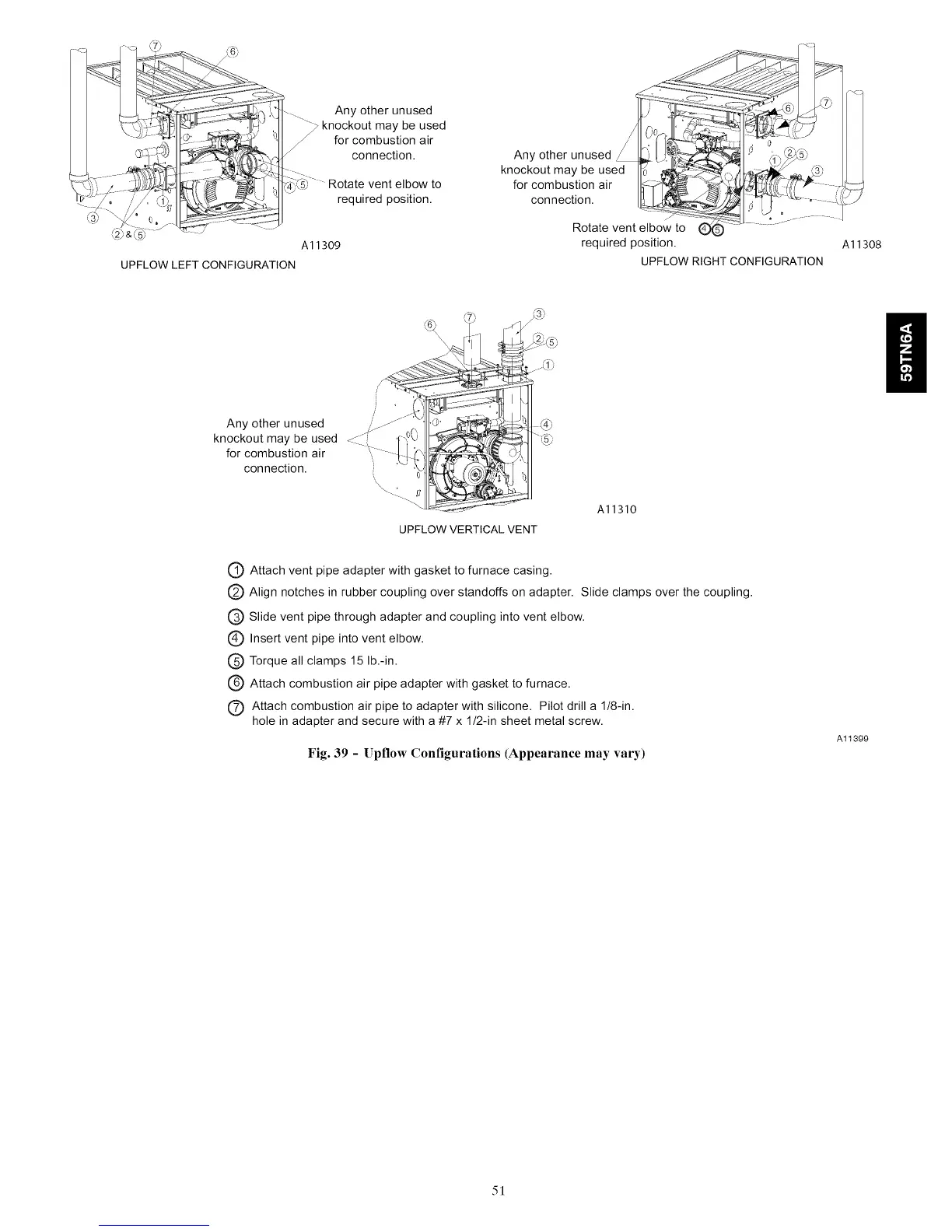

UPFLOW LEFT CONFIGURATION
Any other unused
knockout be used
may
for combustion air
connection.
Rotate vent elbow to
required position.
A11309
00 '>: :.... l k'j
Any other unused __0 &_._5)
knockout may be used _ _. - ,_
connection. _ _ _:!_"o
Rotate vent elbow to (D
required position.
UPFLOW RIGHT CONFIGURATION
A11308
Any otherunused
knockout may be used
_rcombustion air
connedion.
UPFLOW VERTICAL VENT
A11310
C) Attach vent pipe adapter with gasket to furnace casing.
Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
(_ Slide vent pipe through adapter and coupling into vent elbow.
1_ Insert vent pipe into vent elbow.
(_ Torque all clamps 15 lb.-in.
@ Attach combustion air pipe adapter with gasket to furnace.
(_ Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.
Fig. 39 - Upflow Configurations (Appearance may vary)
