-- ALTERNATE
COMBUSTION
AIR
CONNECTIONS
HORIZONTAL RIGHT -
VERTICAL VENT CONFIGURATION
Al1337
HORIZONTAL RIGHT -
LEFT VENT CONFIGURATION*
*Requires Internal Vent Kit
See Product Data for Current Kit Number
Al1336
Al1335
HORIZONTAL RIGHT -
RIGHT VENT CONFIGURATION
(_ Attach vent pipe adapter with gasket to furnace casing.
(_) Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
(_) Slide vent pipe through adapter and coupling into vent elbow.
(_ Insert vent pipe into vent elbow.
(_ Torque all clamps 15 lb.-in.
C) Attach combustion air pipe adapter with gasket to furnace.
(_) Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.

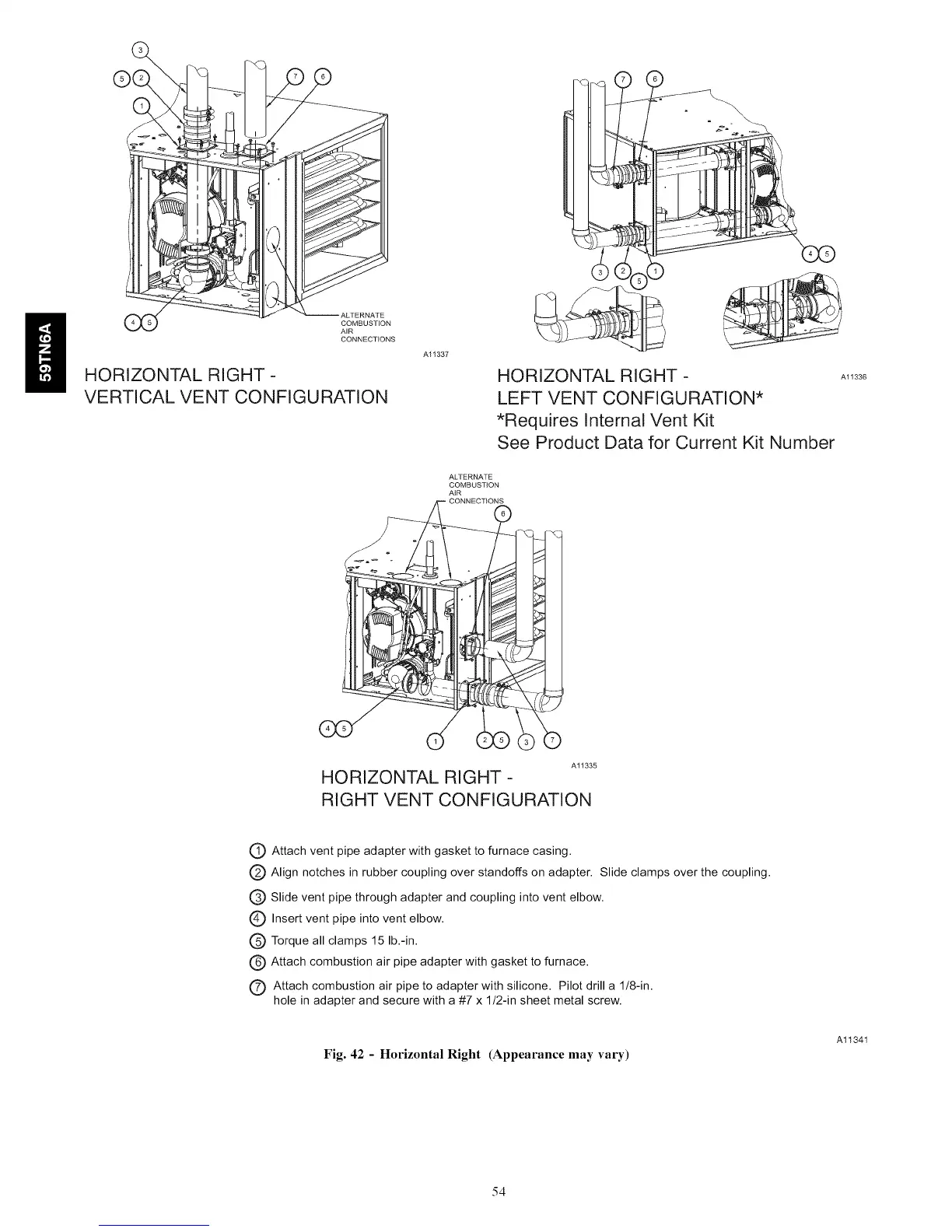

Fig. 42 - Horizontal Right (Appearance may vary)
A11341
54

Carrier 59TN6A Specifications

General

Model	59TN6A
Type	Gas Furnace
Stages	Two-stage
Blower Type	Variable-speed
Fuel Type	Natural gas
Heating Capacity	40, 000 to 120, 000 BTU/h
Warranty	10-year parts limited warranty
