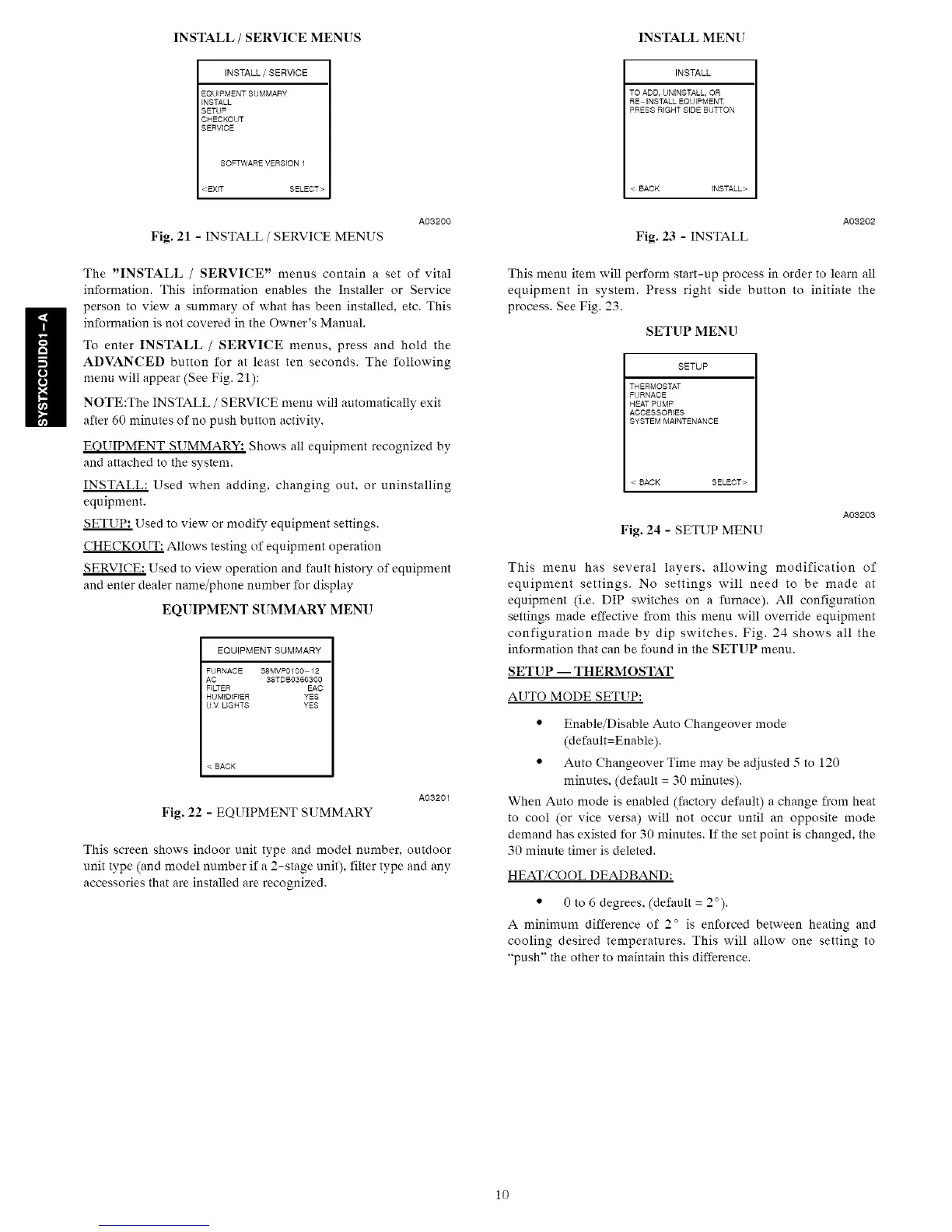

INSTALL/ SERVICE MENUS INSTALL MENU
INSTALL / SERVICE
EQUIPMENT SUMMARY
INSTALL
SETUP
CHECKOUT
SERVICE
SOFTWARE VERSION 1
<EXIT SELECT>
Fig. 21 - INSTALL / SERVICE MENUS
A0S200
The "INSTALL / SERVICE" menus contain a set of vital
information. This information enables the Installer or Service
person to view a summary of what has been installed, etc. This
information is not covered in the Owner's Manual.
To enter INSTALL / SERVICE menus, press and hold the
ADVANCED button for at least ten seconds. The following
menu will appear (See Fig. 21):
NOTE:The INSTALL / SERVICE menu will automatically exit
after 60 minutes of no push button activity.
EQUIPMENT SUMMARY: ShovEs all equipment recognized by
and attacbed to the system.
INSTALL: Used when adding, changing out, or uninstalling
equipment.
SETUP: Used to view or modify equipment settings.
CHECKOUT: Allows testing of equipment operation
SERVICE: Used to view operation and fault history of equipment
and enter dealer name/phone number for display
EQUIPMENT SUMMARY MENU
EQUIPMENT SUMMARY
FURNACE 58MVP0100 12
AC 38TDSO3EO300
FILTER EAC
HUMID}PIER YES
UVUGHTS YES
< BACK
Fig. 22 - EQUIPMENT SUMMARY
A03201
This screen shows indoor unit type and model number, outdoor
unit type (and model number if a z-stage unit), filter type and any
accessories that are installed are recognized.
INSTALL
TO ADD, UNINSTALL, OR
RE INSTALL EQUIPMENT
PRESS RIGHT SIDE SUTTON
< BACK INSTALL>
A03202
Fig. 23 - INSTALL
This menu item will perform start-up process in order to learn all
equipment in system. Press right side button to initiate the
process. See Fig. 23.
SETUP MENU
SETUP
THERMOSTAT
FURNACE
HEAT PUMP
ACCESSORIES
SYSTEM MAINTENANCE
< BACK SELECT>
Fig. 24 - SETUP MENU
A03203
This menu has several layers, allowing modification of
equipment settings. No settings will need to be made at
equipment (i.e. DIP switches on a furnace). All configuration
settings made effective from this menu will override equipment
configuration made by dip switches. Fig. 24 shows all the
information that can be found in the SETUP menu.
SETUP -- THERMOSTAT
AUTO MODE SETUP:
• Enable/Disable Auto Changeover mode
(default=Enable).
• Auto Changeover Time may be adjusted 5 to 120
minutes, (default = 30 minutes).
When Auto mode is enabled (factory default) a change from heat
to cool (or vice versa) will not occur until an opposite mode
demand has existed for 30 minutes. If the set point is changed, the
30 minute timer is deleted.
HEAT/COOL DEADBAND:
• 0 to 6 degrees, (default = 2°).
A minimum difference of 2 ° is enforced between heating and
cooling desired temperatures. This will allow one setting to
"push" the other to maintain this difference.
10
