62-110393-27

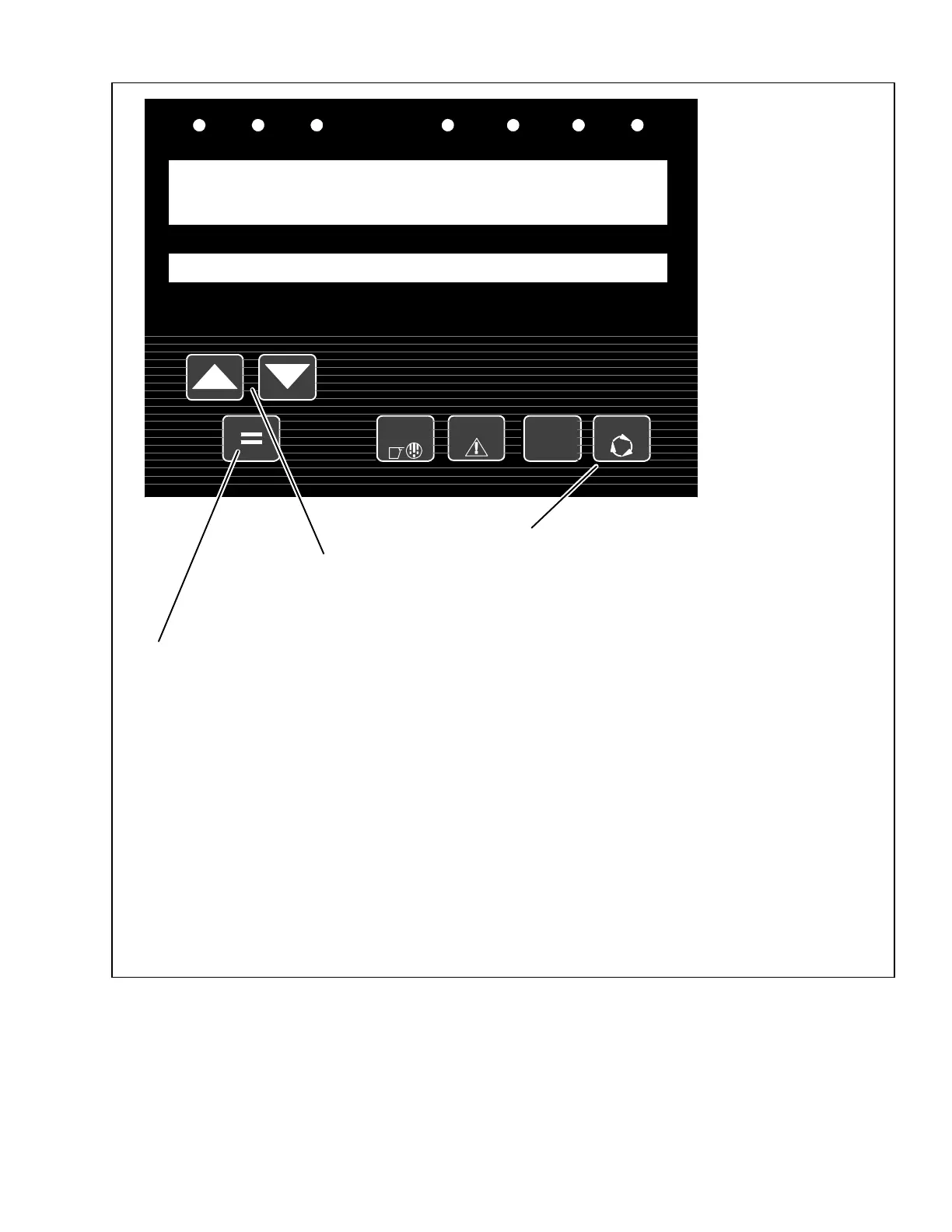

3.17 LANGUAGE SELECTION

COOL DEFROST ALARM START-STOP

SETPOINT BOX TEMPERATURE

ALARM LIST

SELECT

MANUAL

DEFROST

HEAT CONTINUOUS

+36 F

-20

START--STOP/

CONTINUOUS

ESPAÑOL

1. Press and hold the SELECT key for 6 seconds

until MessageCenter displays current language

(ENGLISH, ESPAÑOL or FRANÇAIS).

2. Press the UP or DOWN ARROW key until the MessageCenter indicates

the desired language. Press the = key. The new language will now be

active.

If the = key is not pressed within 10 seconds, the MessageCenter will

change to “FUNCTION NOT CHANGED”. This will flash for 5 seconds,

then return to the current language. If no further keys are pressed, the

default display will return in another 10 seconds.
