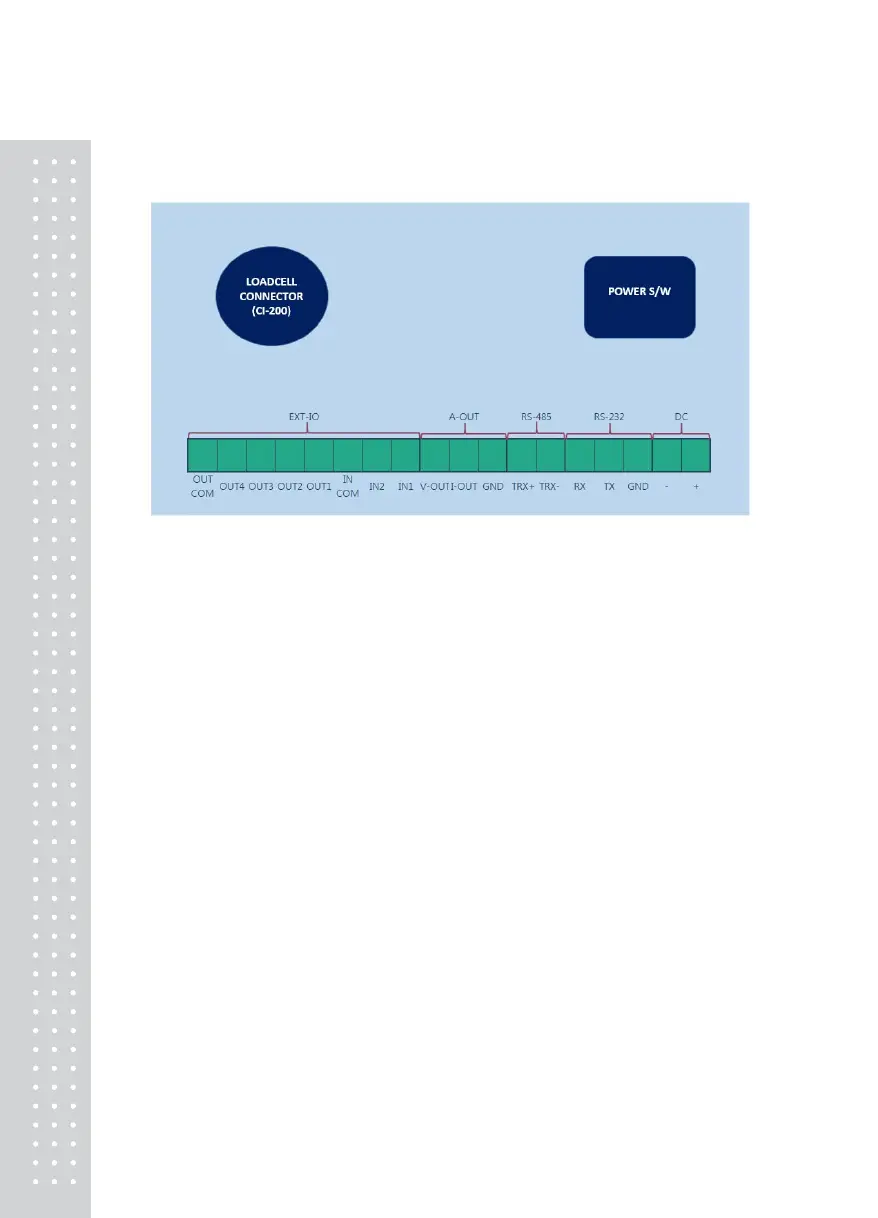

REAR PANEL
■ POWER S/W : POWER ON/OFF
■ LOAD CELL : Port for connecting load cell
1 : EX+ 2 : EX- 3 : SIG+ 4 : SIG- 5 : GND
■ DC(POWER) : 9~24V 1.5A
■ SERIAL : RS-232C
■ SERIAL : RS-485C (option)
■ A-OUT : Analog Out port (V-Out : Voltage, I-Out : Current) (option)
■ EXT-IO : External input/output port (option)
