<Programmable Mode>
Note.
1. Set value input requirement: SP4 > SP3 > SP2 > SP1, SP5 > SP6 > SP7 > SP8
2. Relay Output

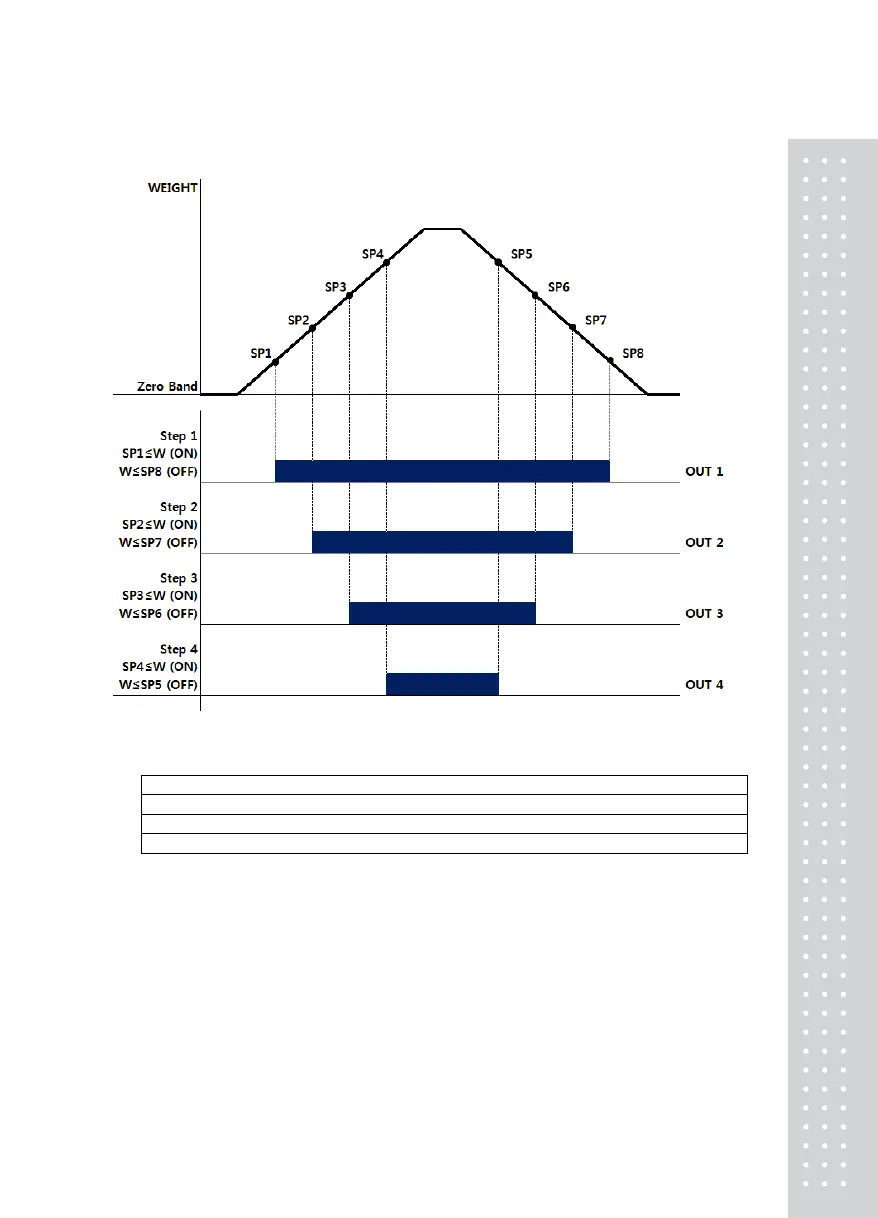

Step 1 : W ≥ SP1  ON, W ≤ SP8  OFF
Step 2 : W ≥ SP2  ON, W ≤ SP7  OFF
Step 3 : W ≥ SP3  ON, W ≤ SP6  OFF
Step 4 : W ≥ SP4  ON, W ≤ SP5  OFF
3. When it increases, External output ON. When it decreases, External output OFF
