INSTALLATION
c
FK0648.ai
c
FK0638.ai
6

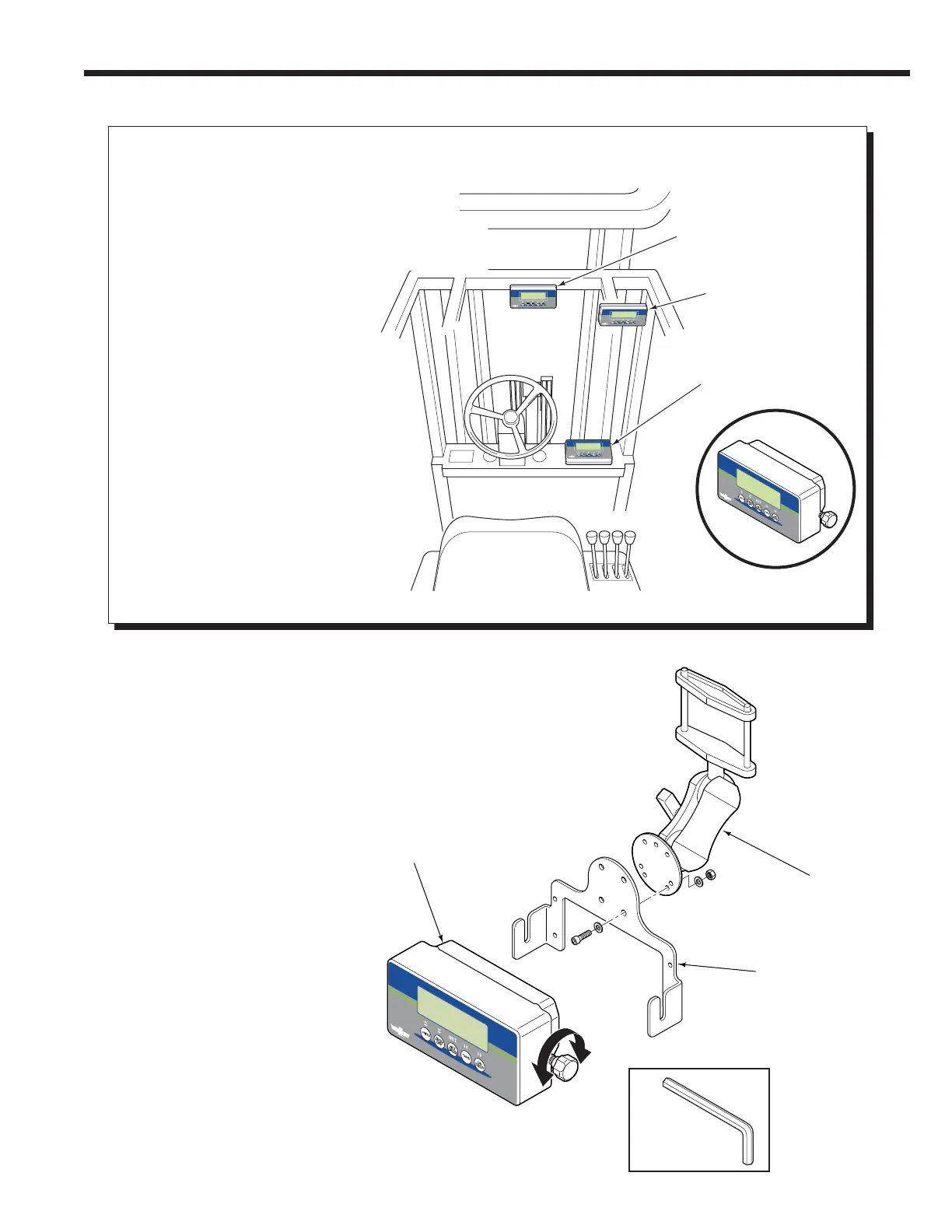

Install indicator bracket and
support, if required
Side Rail
Dashboard
Cabin Roof
Indicator
OR
OR
A
B
A Install bracket to the support, using a M5 allen
wrench.
B Install the indicator to the bracket/support
assembly.
5
Allen Wrench Required:
Support
Bracket
Indicator
M5
Locate and mount the indicator
Determine a location for the indicator that
is within arms length and screen readout is
visible.
NOTE: If required, install batteries into indicator.
Refer to "Batteries" section, "Replacing Indicator
Batteries", page 22.
To Next Page
