4 - INSTRUMENTS/CONTROLS
INSTRUMENT PANEL

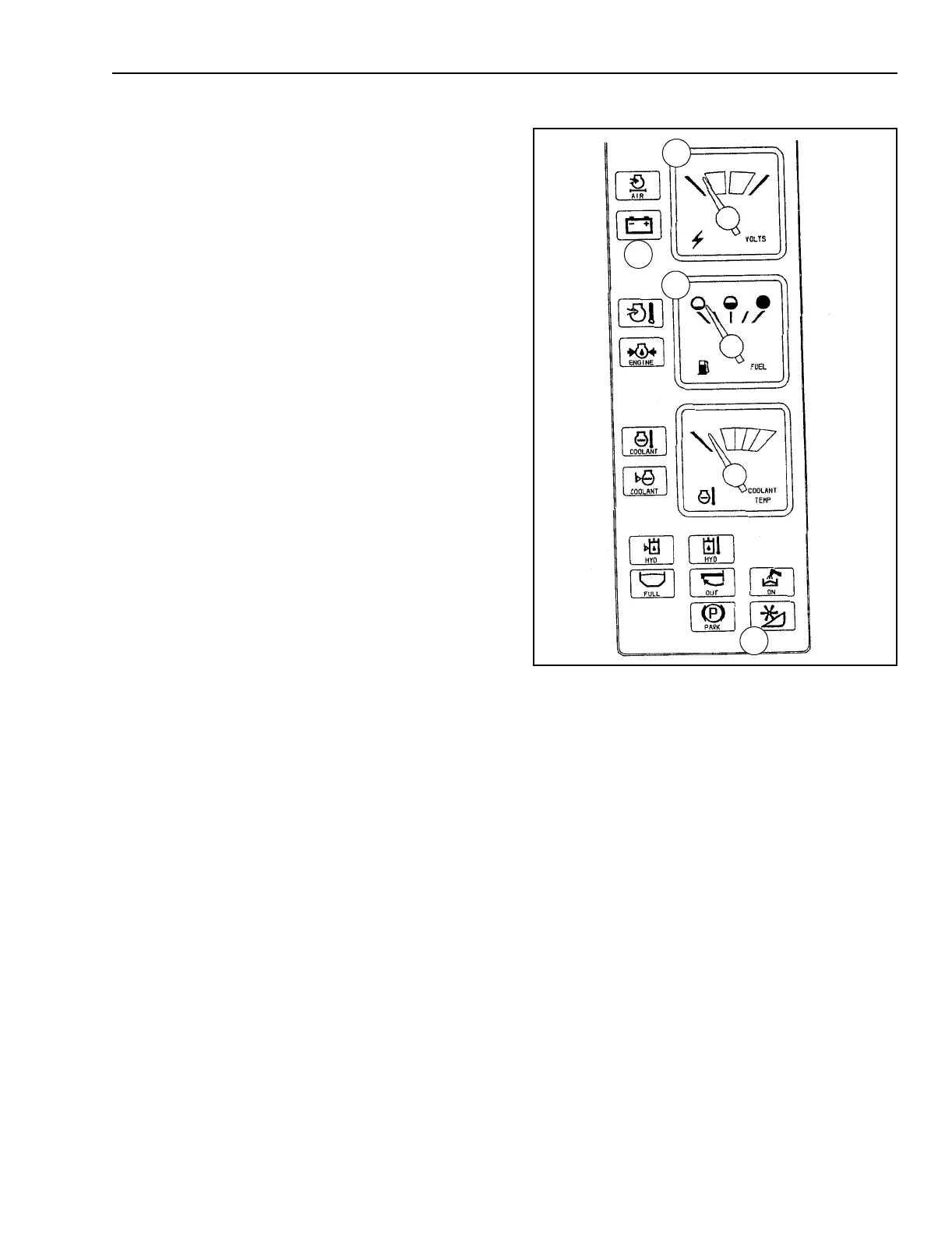

1. VOLTMETER - A voltmeter is used as a charging
system indicator to check the performance of the
alternator and voltage regulator. Battery voltage
is indicated by turning the key switch to the ON
position with the engine stopped and observing
the voltmeter reading. Check the alternator and
voltage by allowing the engine to operate at low
idle and observing the indicated voltage on the
voltmeter. Voltage should be to the right, in the
green zone, in all cases. If not, stop the engine
and check for the cause.
2. HEADER CONTROLLER INDICATOR - The
indicator will illuminate when an error is detected
in the header lift or reel drive systems. The error
code will be displayed on the tachometer display.
A “S1” error code will initially appear when
starting the machine if a header potentiometer is
not present.
3. CHARGING SYSTEM WARNING INDICATOR -
If this indicator illuminates during operation, stop
the engine and check for the causes.
4. FUEL GAUGE - When the key switch is in the
ON position the fuel gauge indicates the level of
fuel in the fuel tank
LOW FUEL WARNING - When the fuel tank level
averages less than a fuel level previously
calibrated (see Instrument Calibration in this
manual) for 5 minutes, the audible alarm will
pulse ON and OFF for 4 seconds.
The lower tachometer display will also alternately
flash “LO” and “FUEL” for 8 seconds. This will be
repeated every 15 minutes as long as the low
fuel condition exists.
