4 - INSTRUMENTS/CONTROLS
62
Dome Lamps and Console Lamp
Dome Lamps
The dome lamps (2) are located in the right rear and
left rear of the cab headliner. Each lamp is controlled
by a three position switch (3). The three position
switch operates as follows:
● UP POSITION - The lamp will operate with the
door switch. The lamp will be ON when the cab
door is open and will be OFF when the cab door
is closed.
● CENTER POSITION - The lamp will be OFF.
● DOWN POSITION - The lamp will be ON
continuously until the switch is moved to the
center (OFF) position or to the UP POSITION so
that it functions with the door.
NOTE: To prevent discharging the batteries put the
lamp switches in the up or center position when
leaving the cab.
Console Lamp
The console lamp (1) provides illumination of the
Right operator’s console. The lamp is activated with
the HEADLAMP and FLOODLAMP SWITCH.
Center Console
NOTE: The ash tray (1) and lighter (2) accessory
kit 434227A* is available from your dealer.

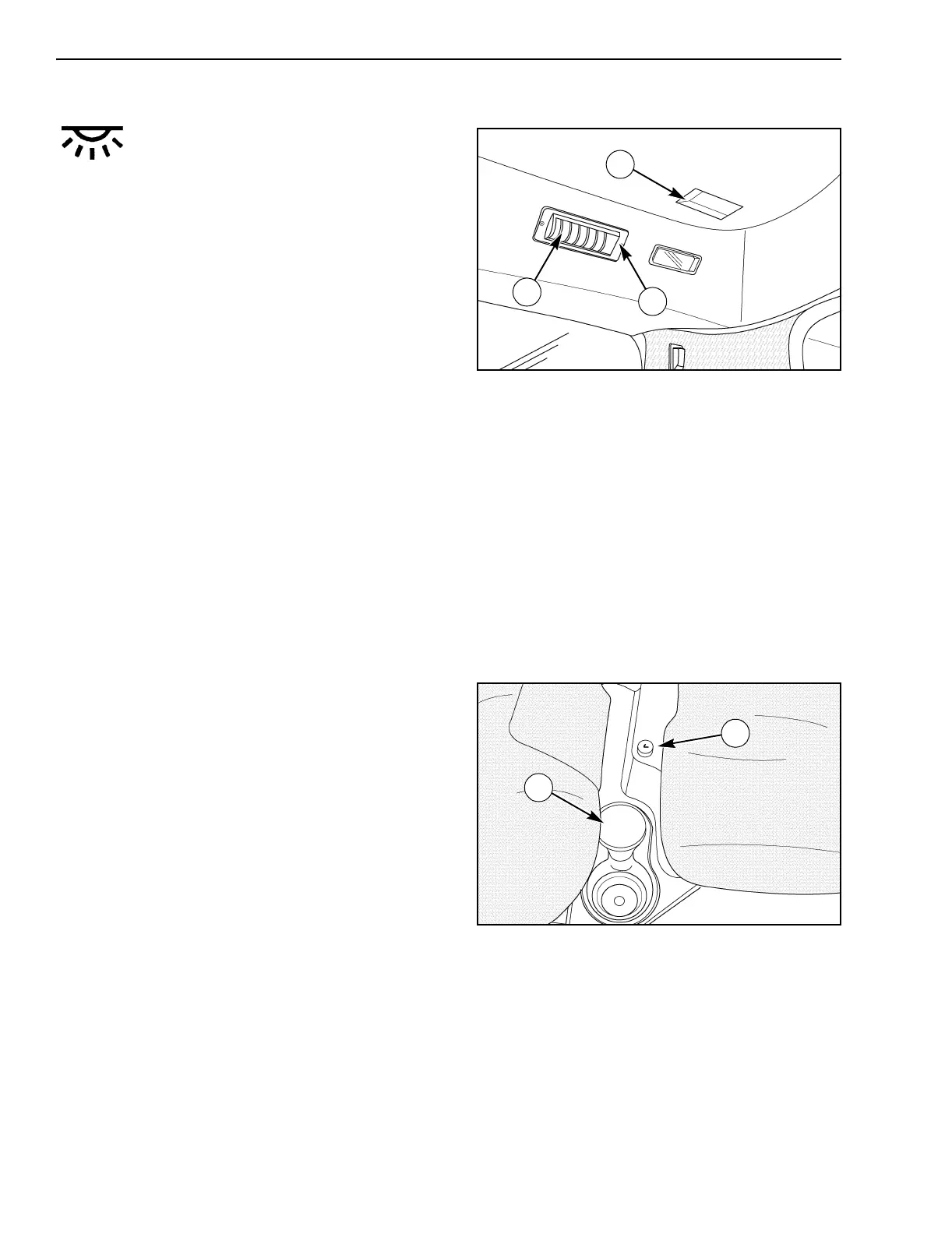

A24361
2
1
3
RD01F168
1
2
