4 - INSTRUMENTS/CONTROLS
63

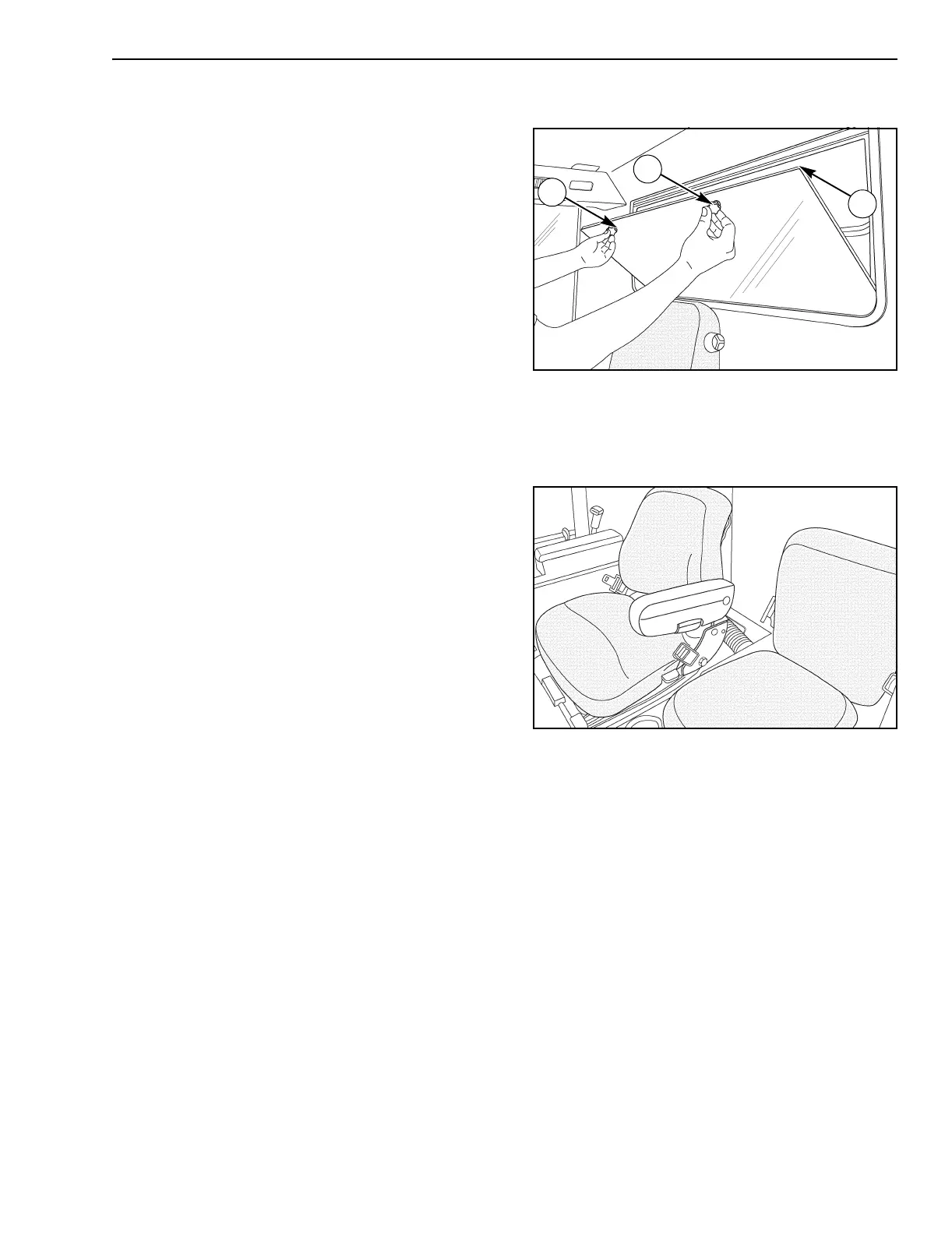

Cab Rear Window
The cab rear window can be opened for easy
cleaning and removal of debris.
To open the rear cab window turn the two quarter
turn latches (1) and pivot the window down. It is
recommended to open the window no more than 45
degrees (2) and hold window in that position until the
dust can be cleaned from the exterior surface of the
window. This position also helps keep material from
front of grain tank window falling into cab when
cleaning grain tank window.
It is also recommended that the rear window be
opened only with cab doors closed to prevent a
cross draft from blowing dust into cab.
Instructional Seat
The instructional seat provides seating for an
experienced operator when a new operator is being
trained on the operation of the machine. Refer to
Instructional Seat Safety in the Safety Section of this
manual for additional information.
NOTE: This seat is NOT intended as a passenger
seat or for use by children.
RP96G002
1
1
2
RD02E135
