1-GENERALINFORMATION

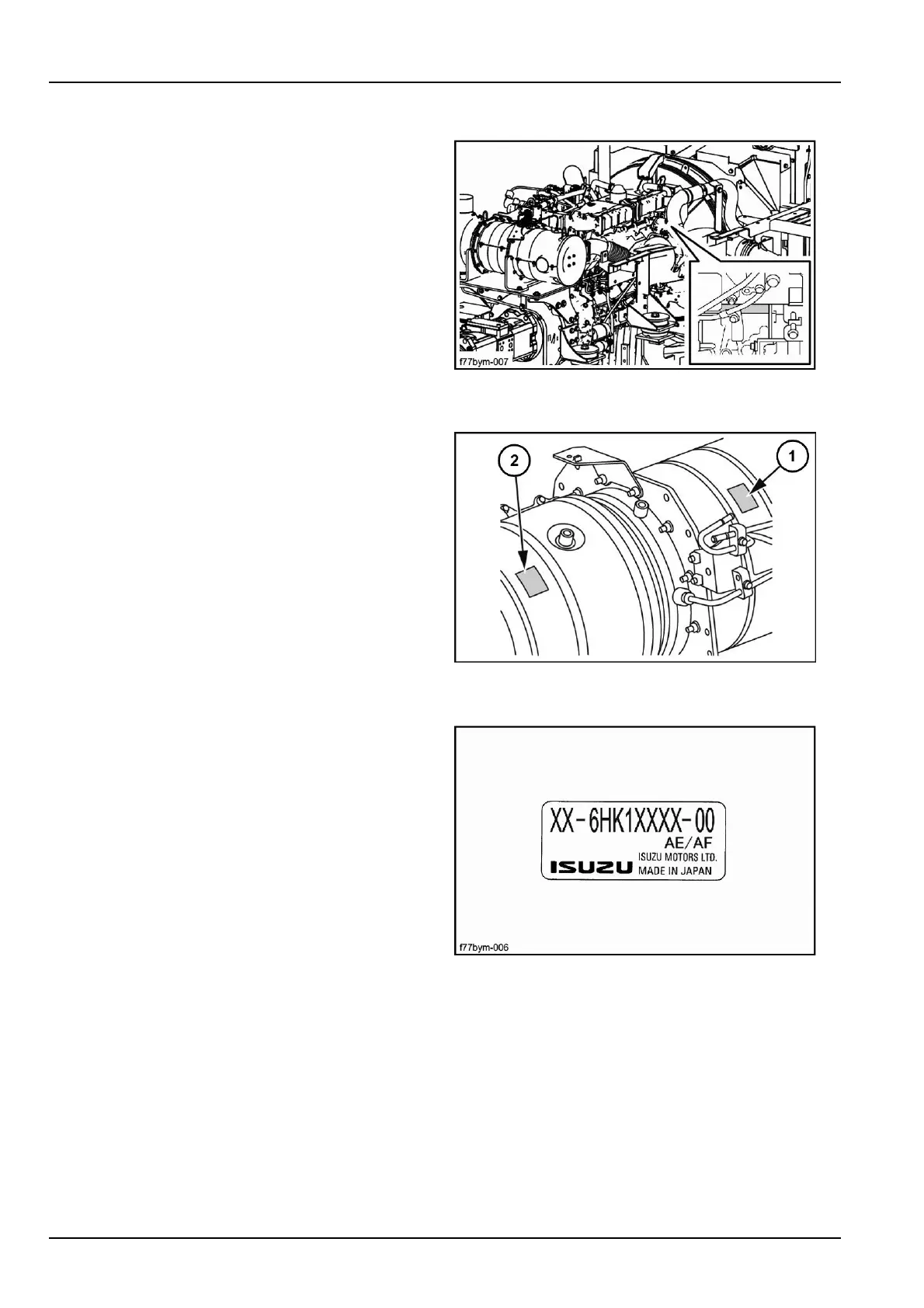

Engine

Makeandtype:ISUZUAL-6HK1X

Serialnumber:

ATTENTION:Theengineandfuelsystemonyourma-

chineisdesignedandbuilttogovernmentemissions

standards.Tamperingbydealers,customers,operators

andusersisSTRICTLYPROHIBITEDBYLAW.Failureto

complycouldresultingovernmentnes,reworkcharges,

invalidwarranty,legalactionandpossibleconscation

ofthemachineuntilreworktooriginalconditioniscom-

pleted.Engineserviceand/orrepairsmustbedonebya

certiedtechnicianonly.

F77BYM-0073

DieselParticulateDiffuser(DPD)

(1)Catalyzedsootlterserialnumber:

Filterwhichhasthefunctiontopurifyexhaustgaswithan

oxidationcatalyst.

(2)Dieseloxidationcatalystserialnumber:

Oxidationcatalystfordieselmachine.

DPD00001A4

IDlabel

Itisattachedtothecylinderheadcover.

F77BYM-0065

1-6
