6-MAINTENANCE

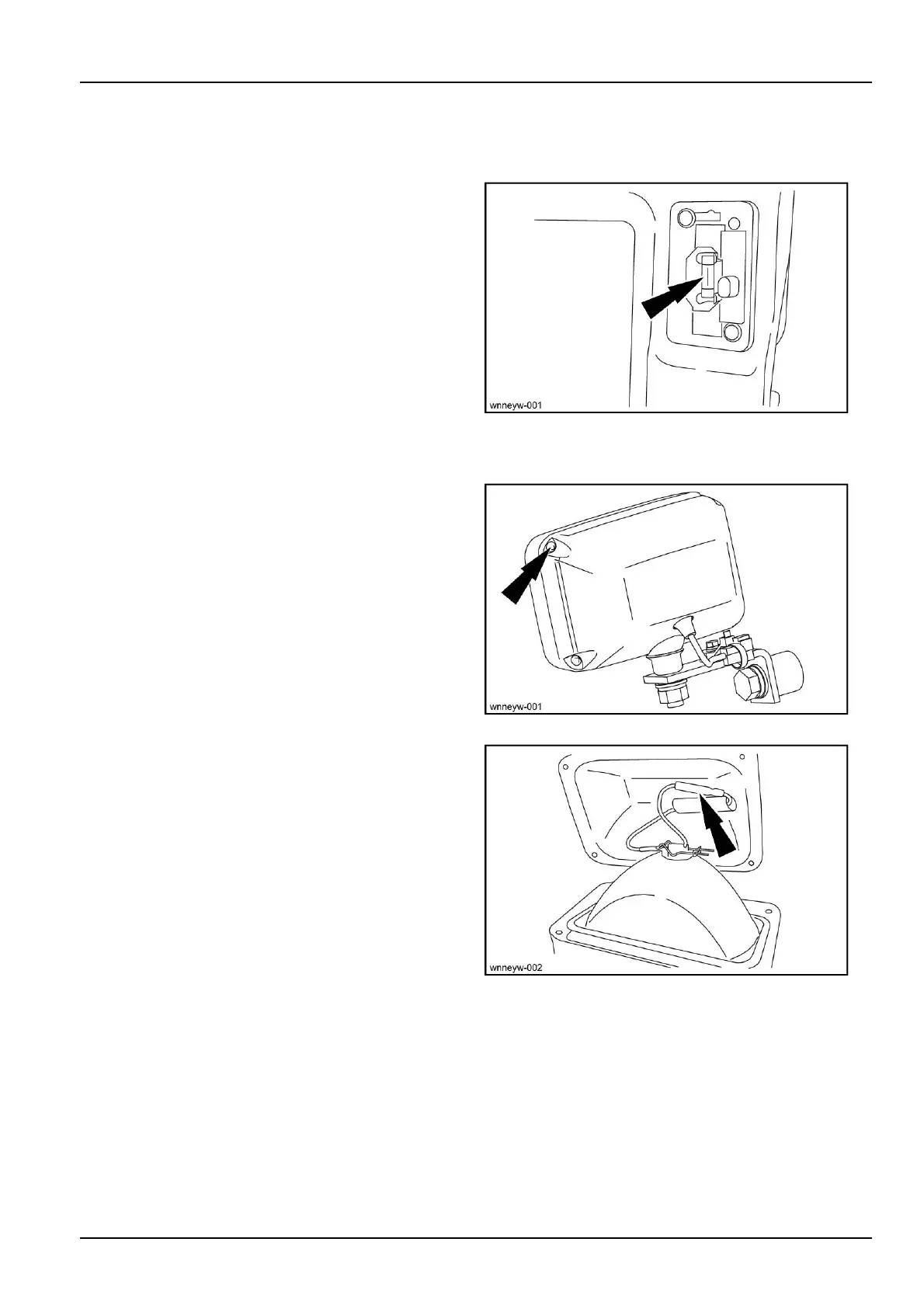

Bulbreplacement

Operator’scompartmentlighting

1.Removethecover.

2.Removethebulbandinstallabulbofthesame

wattage(10W).

3.Installthecover.

8YHY9K-001A1

Attachmentworkinglight

1.Removethe4retainingscrews.

WNNEYW-001A2

2.Tilttheworkinglightanddisconnecttheplug.

WNNEYW-002A3

6-81
