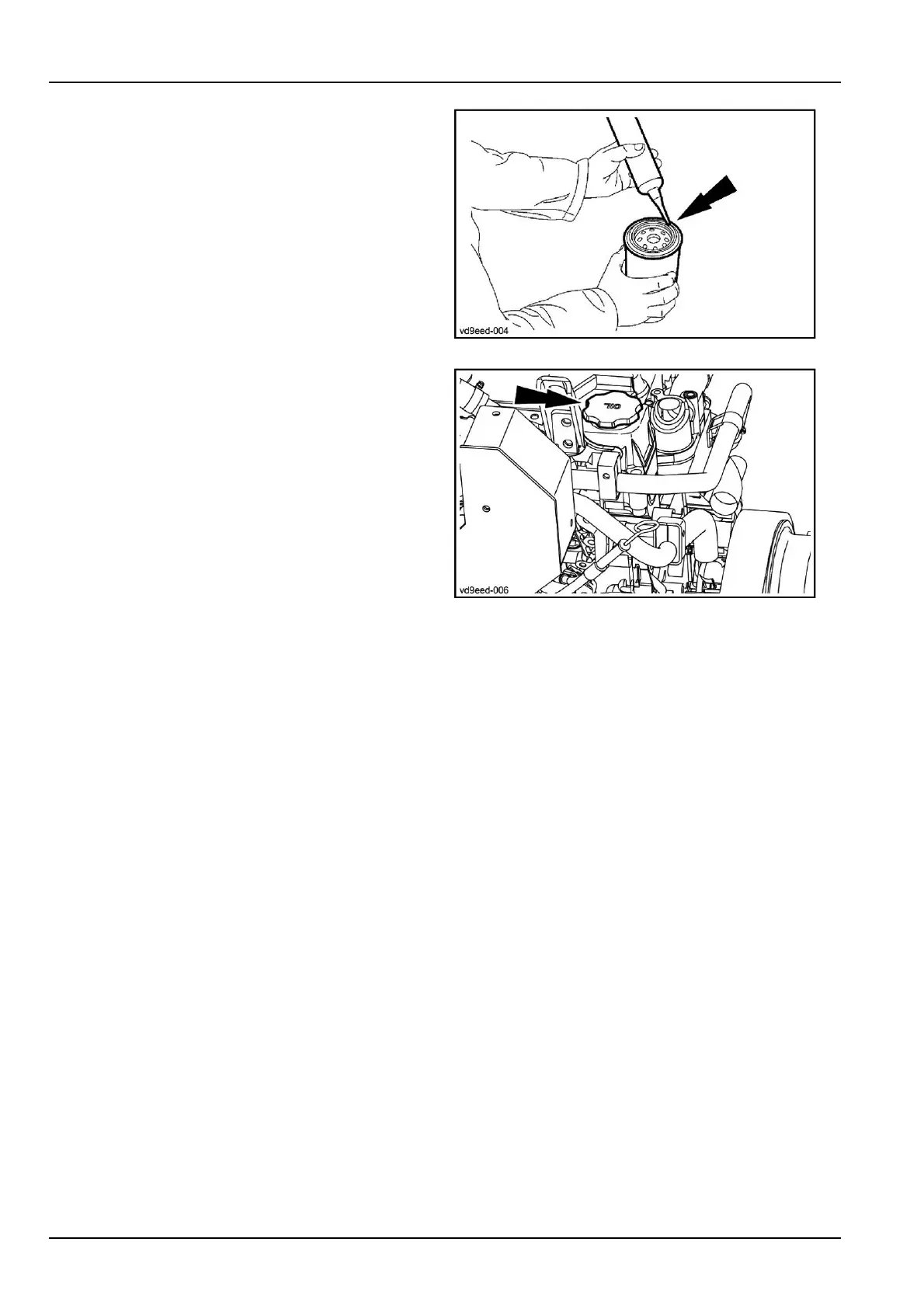

6-MAINTENANCE

7.Coatthesealofthenewlterwithanelmofoil.

8.Installthenewlter.Turnthelteruntilthesealcomes

intocontactwiththelterheadthentightenanextra

halfturnbyhand.

ATTENTION:Donotusealterwrenchtotightenthe

lter.Excessivetighteningcandamagethelterand

theirseals.

VD9EED-0047

9.Filltheenginewithnewengineoil.Installthelling

plug.

10.Runtheengineforafewminutesandcheckthatthere

arenoleaks.Checkthelevelagainandtopupif

necessary.

NOTICE:Alwayswaitfteenminutestoallowtheoil

toreturntothesumpbeforecheckingtheoillevel.

VD9EED-0068

6-22
