2-SAFETYINFORMATION

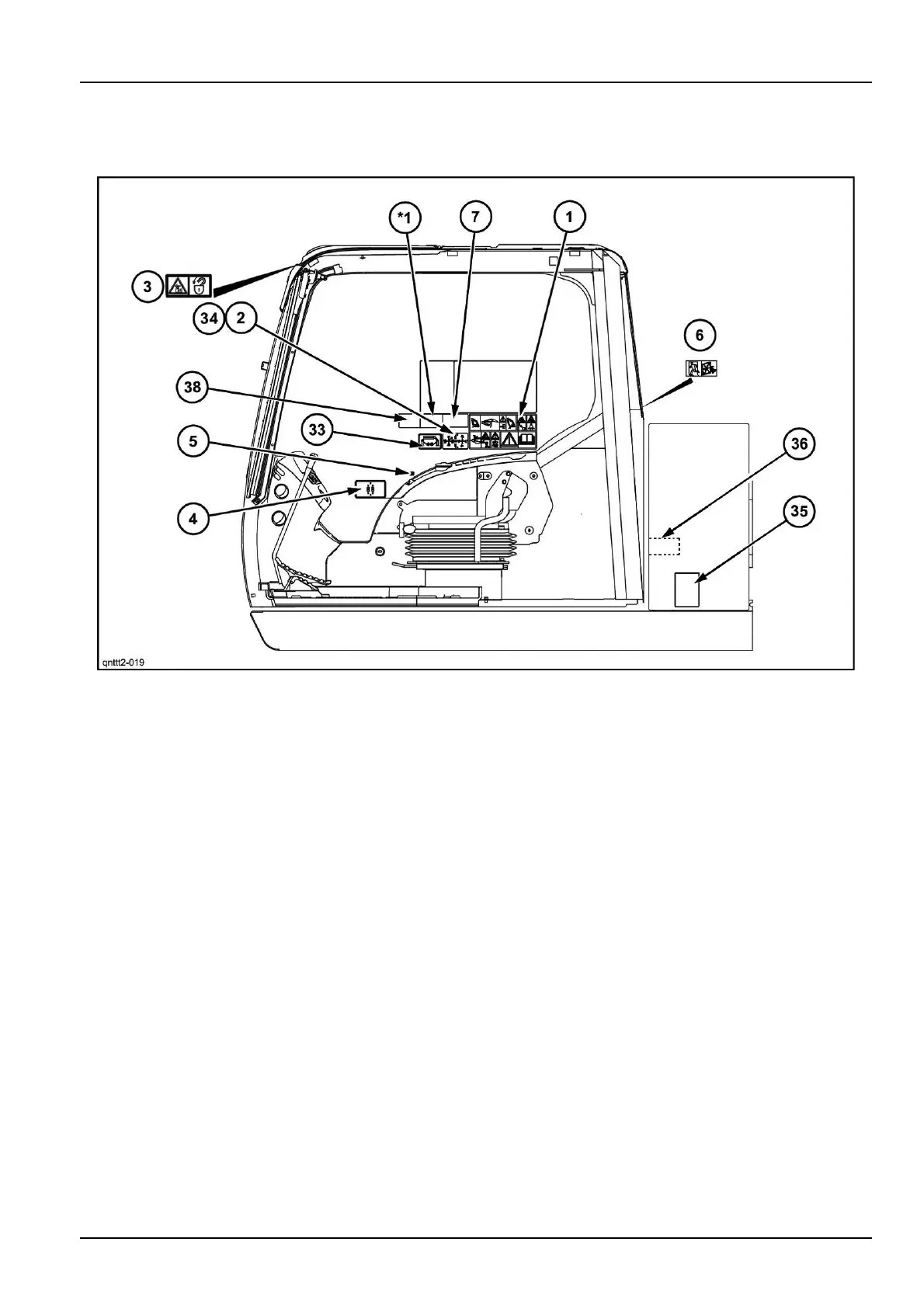

Positionofdecals

Whenreplacingadecal,makesureitislocatedasshownbelow.

QNTTT2-019A2

Seechapter“Illustrationofdecals”forthefunctionsofdecals.

2-9
