2-SAFETYINFORMATION

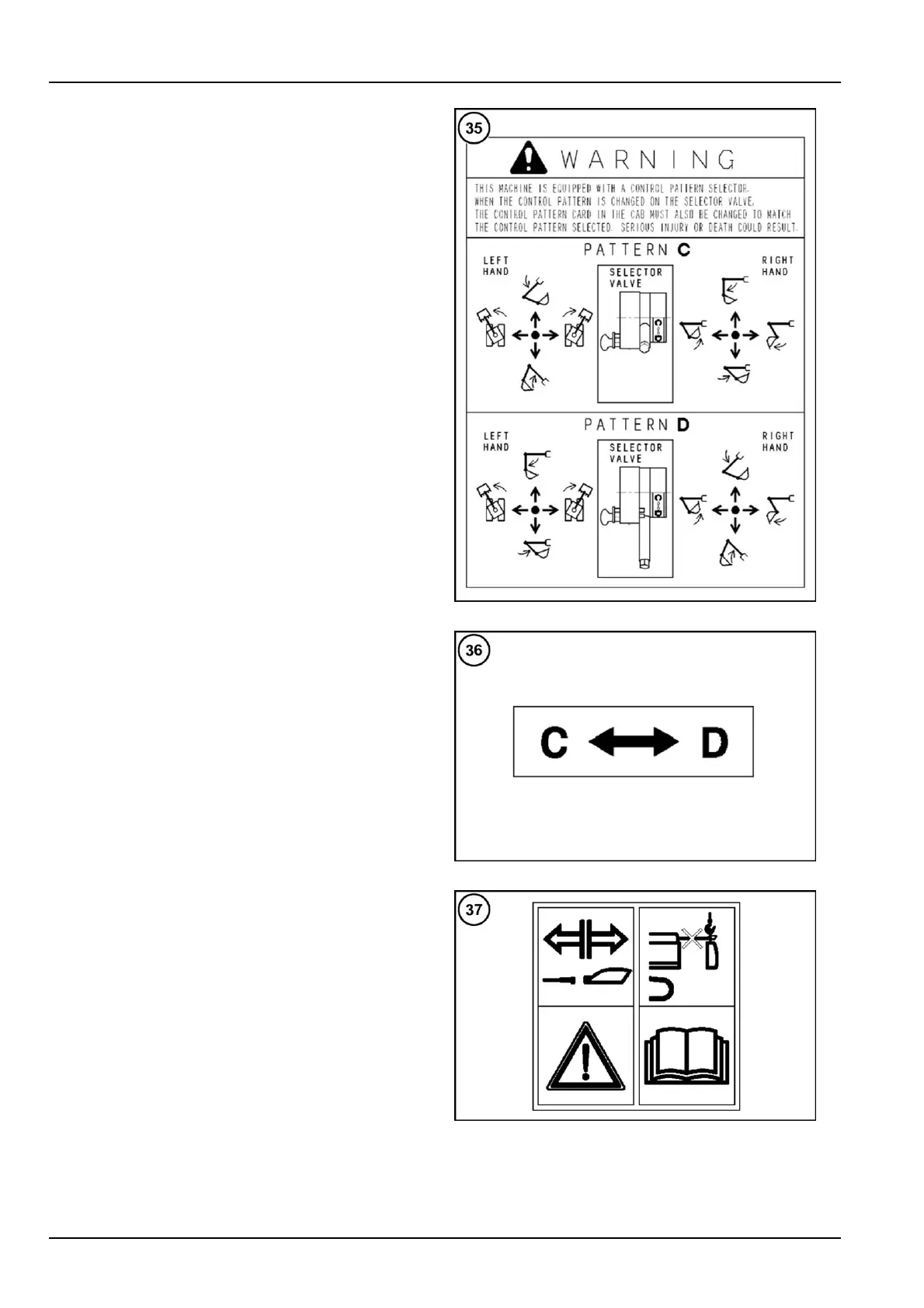

Controlpatternselection(ifequipped)
Partnumber:KHP12300
Thisdecalshowsthetwodifferenttypesofconguration
ofthecontrolleversandtheinstructionstobeobserved.
KHP12300-B0052
Controlpatternselector(ifequipped)
Partnumber:KHP1757
Thisdecalshowsthepositioninwhichtheselectormust
beplacedaccordingtotheselectedcongurationtypeof
thecontrollevers.See“Controlpatternselection”decal
(35).
KHP1757-0053
Cameraelectricalharnessdisconnection
Partnumber:KHP18460
Thisdecalshowsthatbeforeremovingthecounterweight,
itisnecessarytodisconnecttherearcameraelectrical
harnessandreadtheoperatorsmanual.
KHP18460-A0054
2-24
