PLAYBACK
158
● EX-Z60DX

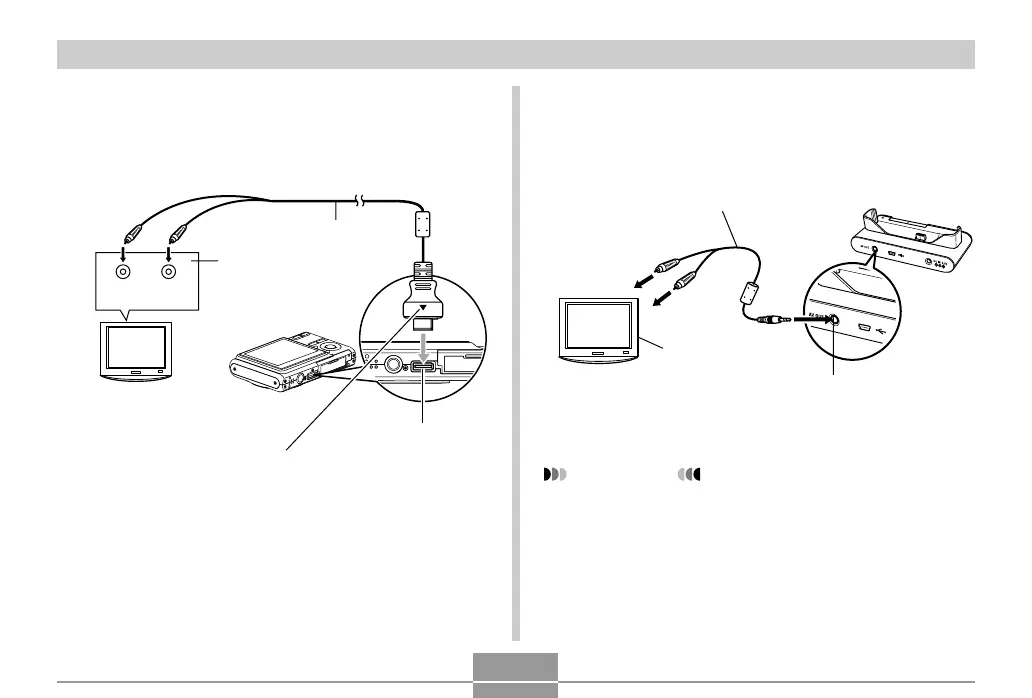

1 Connect one end of the AV cable that comes with
the camera to the [AV OUT] port of the USB
cradle, and the other end to the video input
terminal of the TV.
AV cable
[AV OUT] (AV output port)
Video input
terminal
TV
2 Turn off the camera.
3 Set the camera onto the USB cradle.
IMPORTANT!
• Connect the yellow plug of the AV cable to the video
input (yellow) terminal of the TV, and the white plug
to the TV’s audio input (white) terminal.
C
Ye l l o w
(Video)
White
(Audio)
AV cable
USB/AV connector
Video input
terminal
TV
● EX-Z60
1 Connect one end of the AV cable that comes with
the camera to the camera’s USB/AV connector,
and the other end to the video input terminal of
the TV.
Make sure that the side of the connector that is marked
with an arrow (
왖
) is facing in the same direction as the
front (lens side) of the camera.
