EN-54
When connected to audio equipment such as an amplifier for
musical instruments, you can enjoy playing at a louder volume
and higher sound quality, depending on the speaker
capabilities of the equipment.
• Turn off the external device when making connections.
After connecting, turn down the Digital Piano and
external device volume levels to their minimum
whenever turning power on or off.
• After connecting, turn on the power to the Digital Piano
and the external equipment in that order.
• If the sound of the Digital Piano played through the
external equipment sounds distorted, turn down the
volume of the Digital Piano.
Commercially available cables can be used for connection.

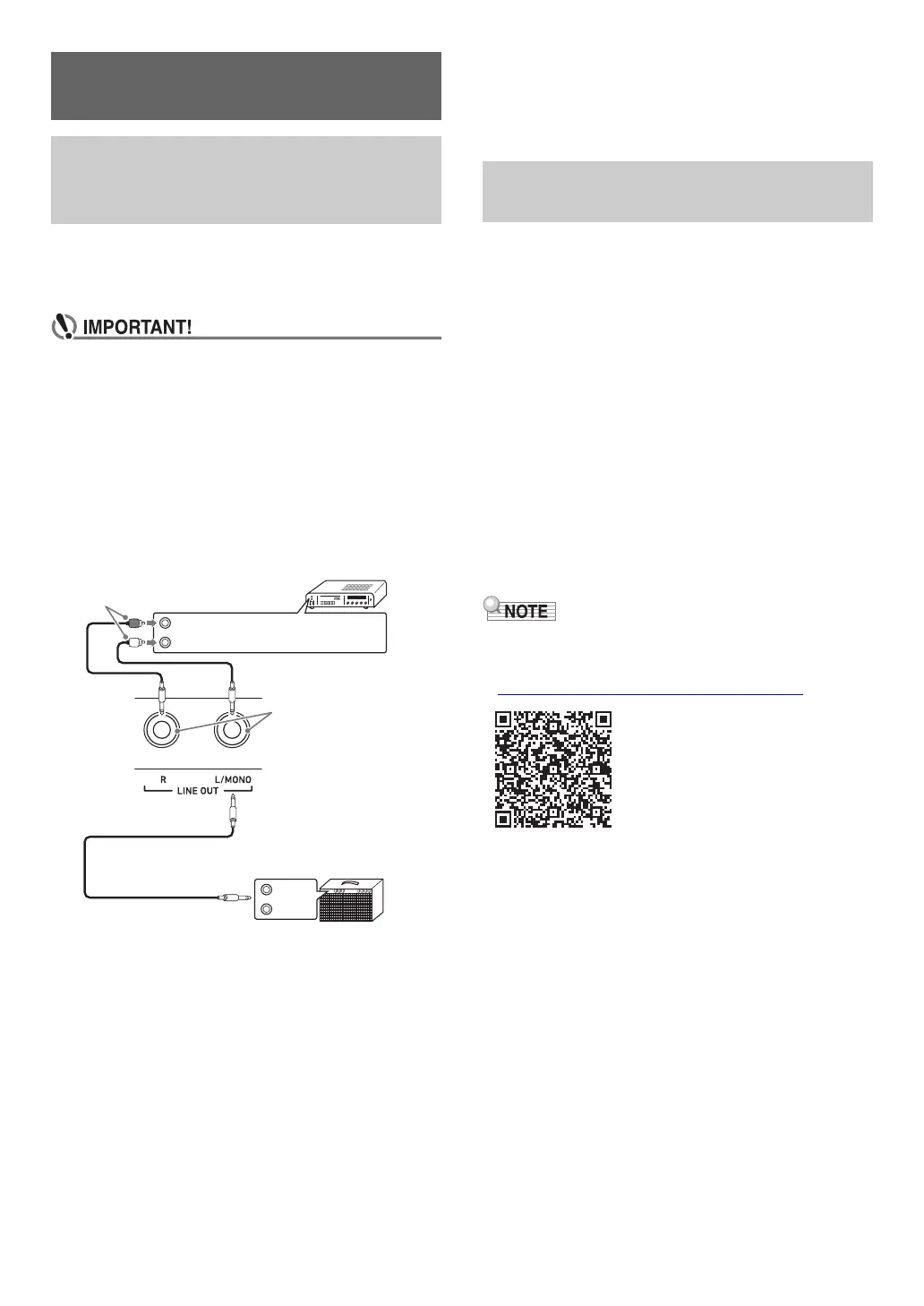

■ Connecting to audio equipment (Figure
)
LINE OUT R (Right) is the right channel sound and LINE OUT
L/MONO (Left) is the left channel sound. Connect both with a
commercially available cable as shown in Figure
. In most
cases, switch the input selector of the audio equipment to the
connected terminal (e.g., AUX IN).
■ Connecting to a musical instrument amplifier
(Figure
)
If you connect only LINE OUT L/MONO, you will get a
monaural mix of both channels. Use a commercially available
cable to connect as shown in Figure
.
You can send and receive performance information (MIDI
data) by connecting this unit to a computer or smart device.
MIDI apps running on your computer or smart device can be
used to record your performances or send MIDI data to your
Digital Piano for playback.
■ Computer Operating Environment
The computer environment required to send and receive MIDI
data is as follows: Please be sure to check your computer
environment in advance.
● Supported OS
Windows 8.1
*1
Windows 10
*2
Windows 11
macOS 10.13, 10.14, 10.15, 11, 12
*1 Windows 8.1 (32bit and 64bit versions)
*2 Windows 10 (32bit and 64bit versions)
● USB port
• For the latest OS support information, please see the
“Operating System Compatibility (Windows/macOS)”
section on our website below.
https://support.casio.com/global/en/emi/manual/PX-S5000/
Using External Devices
Connected via Cable
Playing Your Digital Piano
through an Amplifier or Other
Audio Equipment
Guitar amplifier
Keyboard amplifier, etc.
RIGHT (Red)
LEFT (White)
Pin plugs
Audio amplifier AUX IN jacks, etc.
bo LINE OUT jacks
(Standard phone jack
(TS phone))
Connecting to a computer or
smart device with MIDI
To Next Page
