3-5-2-2. Online interface
Only the RS-232C COM 1 port can be connected with a modem or a personal computer.
1) Specification of RS-232C COM 1 port
Communication method: Half duplex communication
Configuration of connection: Point-to point
Line type: Public lines / exclusive lines
Starting method: Center (host computer) based start up
Protocol: Async.
Communication speed: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps
Error control: CRC-128 or CRC-1024
Text length: 128 or 1024 bytes
2) The cable diagram between the terminal and MODEM
3) The cable diagram between the terminal and PC

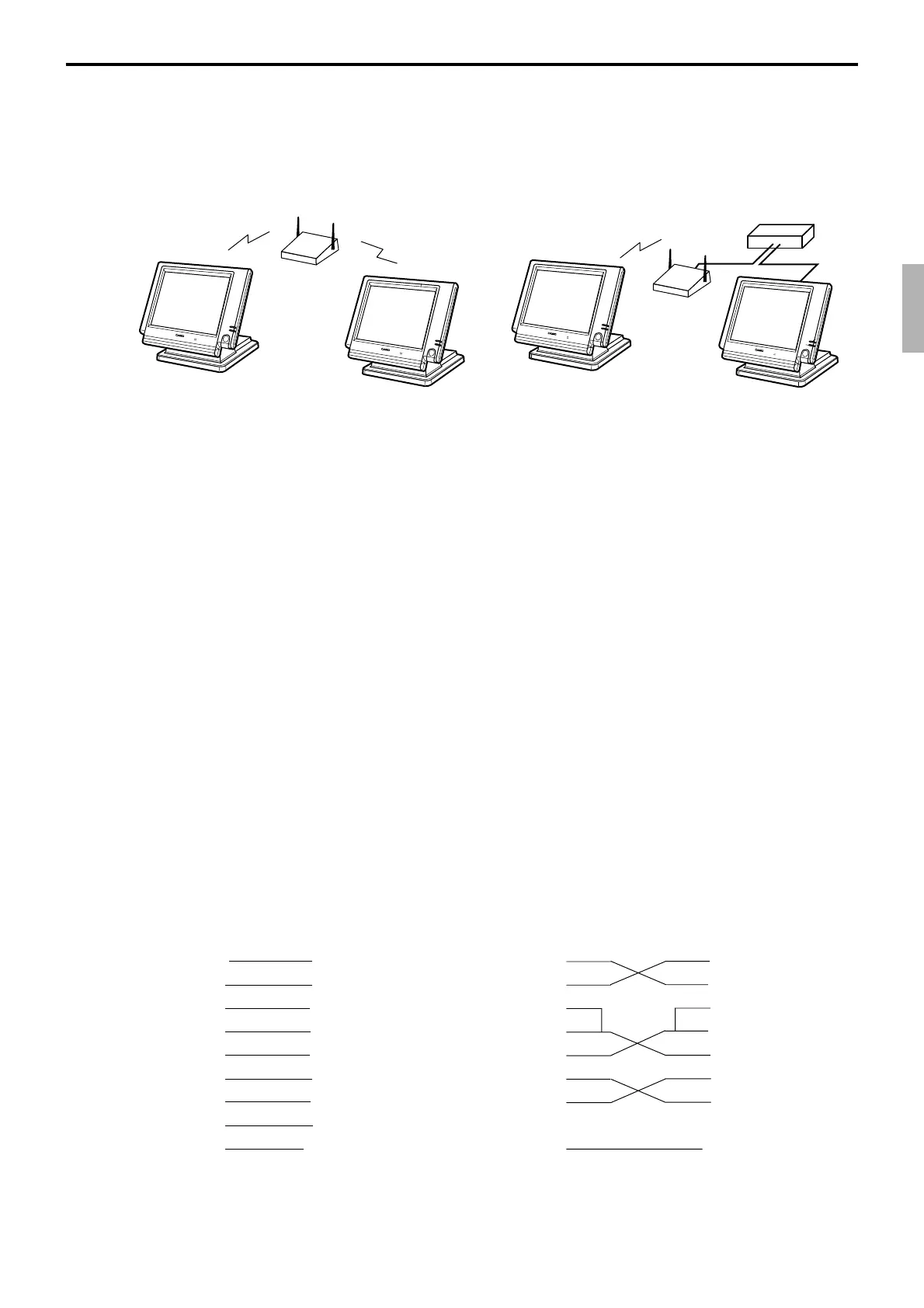

Wireless inline
Wireless inline system requires wireless LAN card installed in the QT-6000 terminal
and access point.
Via access point and hub, wireless inline terminal can communicate with the wired
inline terminal.
Access Point
Access Point
Hub
Terminal (COM 1) MODEM
Pin Signal Signal Pin
No. name name No.
3 SD/TDX SD 2
2 RD/RXD RD 3
7 RS/RTS RS 4
8 CS/CTS CS 5
1 CD/DCD CD 8
4 ER/DTR ER 20
6 DR/DSR DR 6
9 CI/RI CI 22
5 GND GND 7
(DSUB25)
Terminal (COM 1) PC
Pin Signal Signal Pin Pin
No. name name No. No.
3 SD/TDX SD 3 2
2 RD/RXD RD 2 3
7 RS/RTS RS 7 4
8 CS/CTS CS 8 5
1 CD/DCD CD 1 8
4 ER/DTR ER 4 20
6 DR/DSR DR 6 6
9 CI/RI CI 22
5 GND GND 5 7
(DSUB25)
(DSUB9)
Note
Set unique ESS ID and WEP KEY character for your safety.

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
