Casio QT-6000 Reference Manual

R-79
QT-6000 Reference Manual
2-13-4. Transferring electronic journal memory
It is possible to do collection of electronic journal files through inline system.
Refer to the terminal structure illustrated below.

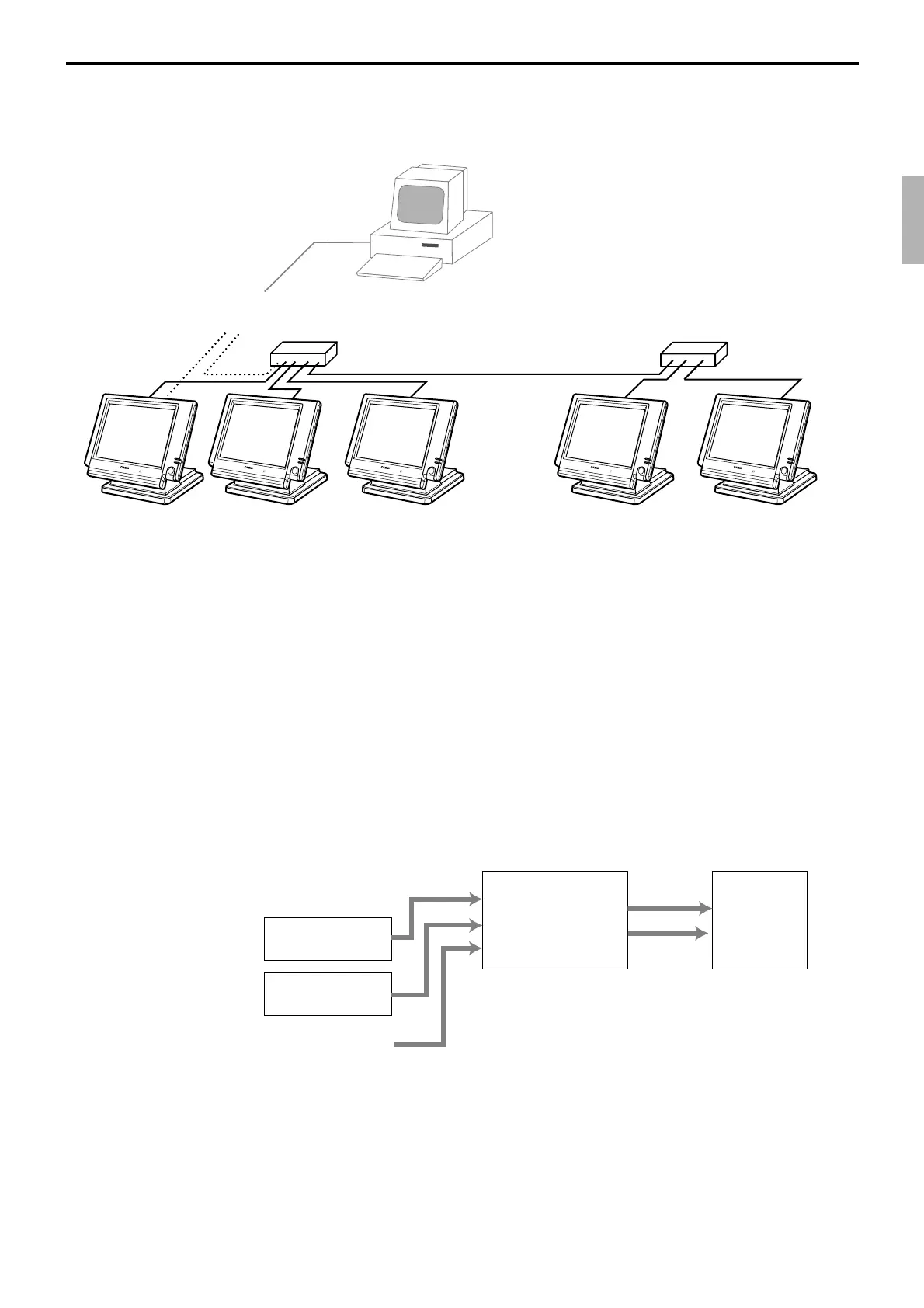

Flow of the transferring electronic journal
1. PC sends the collection command by using Job command to collect electronic journal
file from a satellite terminal.
2. Collection master receives the electronic journal data from a satellite.
PC enables to check whether the collection master has finished the job.
3. PC sends the data send command to the collection master for the collected electronic
journal data.
4. PC receives the collection data from the master. If the Z-command has issued at step
3, electronic journal file in the satellite is all reset.
5. Repeat step 1 ~ 4 for all satellites.
Data transferring flow
Electronic journal data in each terminal is appended to the consolidation file individually.
Satellite (1) file
Satellite (2) file
•
•
•
•
•
•
Copy
Copy
Copy
Consolidation file
(in Collection
Master)
PC
Satellite (1)
Satellite (2)
File 048 and 648 for “normal” electronic journal.
File 050 and 650 for “intelligent” electrionic journal.
Collection Master Satellite Satellite Satellite Satellite
PC
Via COM 1 port of the master terminal (direct/Modem)
or Inline (Ethernet)
