Casio QT-6000 Reference Manual

R-14
Hardware Configuration

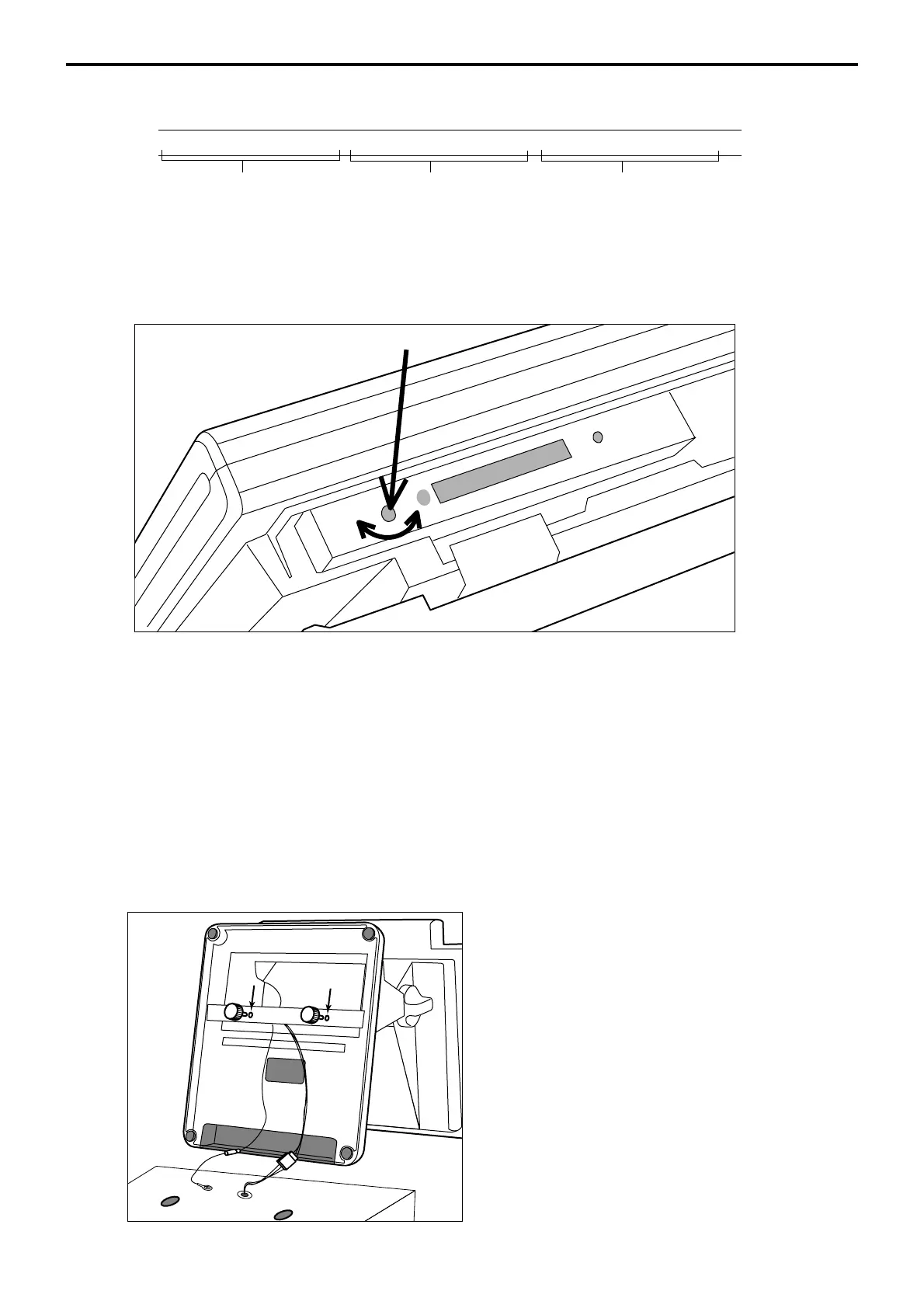

1-5. Cash drawer
In case of connecting drawer, follow the procedure below.
Connect the drawer.
1. Connect drawer connector (three color lead on drawer) to the terminal.
2. Connect frame drawer connector (green lead on drawer) to the terminal.
Mount the cash register.
1. Screw in 2 fixing screws bottom side of the terminal.
2. Mount the terminal on the top of the drawer, ensuring that the feet on the bottom of the
terminal go into the holes on the drawer.
Dark Bright
1-4-4. Main display brightness control
1-4-3. Menu level display part contents
SHIFT PLU 1 Menu shift 1 2nd@
Shift PLU level (1 ~ 8) Menu sheet (1 ~ 15) 2nd unit Price level (1 ~ 2)

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
