– 4 –

2. DISASSEMBLY

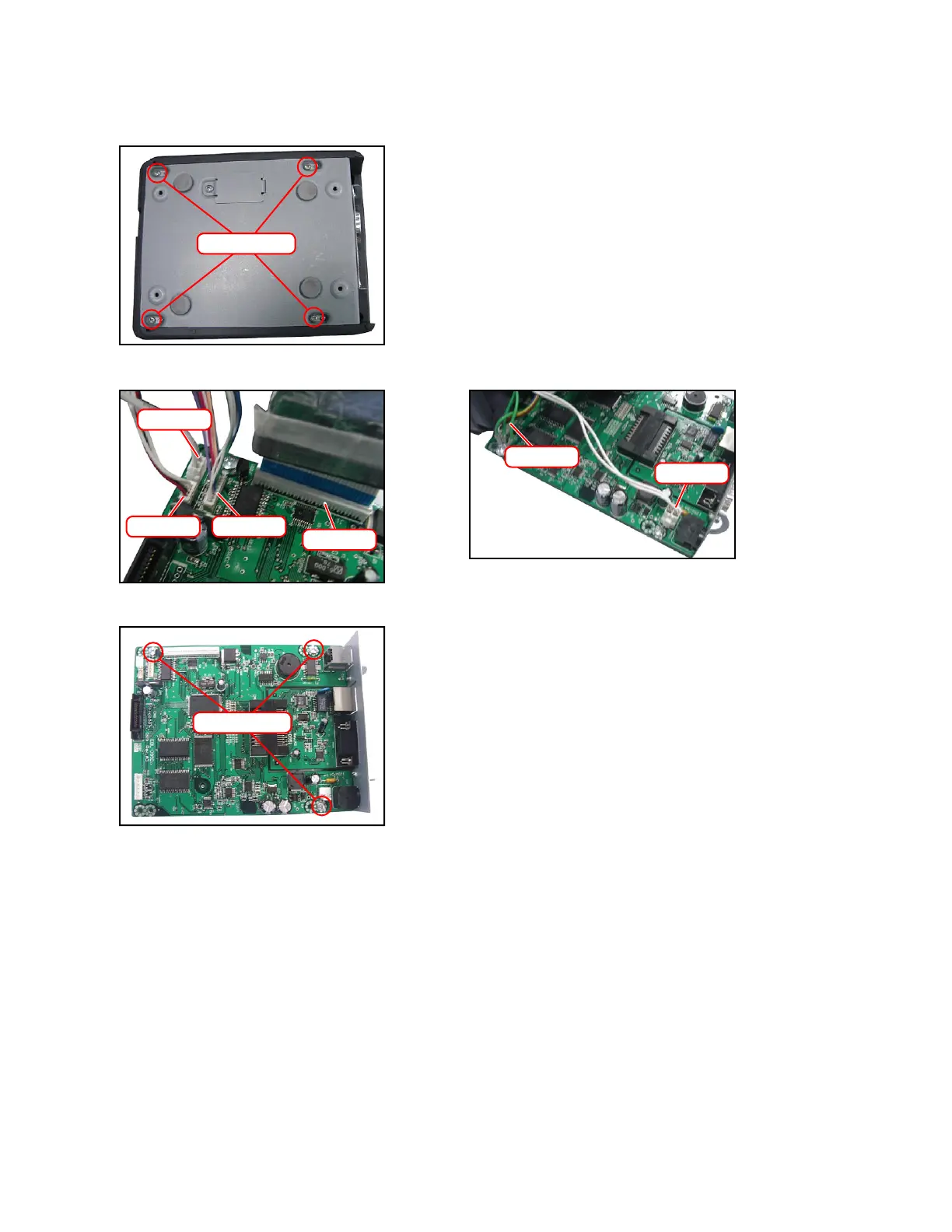

1. Remove four screws at the bottom of the printer unit.

2. Remove ﬁve connectors (CN1, CN2, CN3, CN5, CN6) and the FFC (J1).

Screws

CN3

CN2

CN1

CN5

CN6

3. Remove three screws and then remove the main PCB.

Screws
