Audio Connection
NOTE:
Please refer to the manuals of other connected equipments during the installation.
Do not insert the power cord into the main socket before all other equipments are well
connected.
R refers to right channel while L represents left channel.
Please take the right guidance for connection as wrong connection may cause noise, low-
grade function or damage.
Do not fasten signal cable together with power cable and speaker cables. It will worsen the
acoustic fidelity.
•
•
•
•
•
Note:
♦ Do not mix up the positive and negative ends of speaker cables or it will cause short circuit.
♦ Please make sure local power supply is at the same level as the rated voltage level indicated on the rear of
the product before connection.
♦ In order not to cause noise, low-grade function or damage, please do not insert the power cord into the
main socket before all other equipments are well connected.
♦ Once switched on there is a period of 35 seconds for pre-heating of the tubes among which there is no
signal output.
♦ Please switch off the amplifier first if you are going to pull off the USB cable .
To audio output terminal
HIFI COMPACT DISC PLAYER
ON
OFF
kHz
bit
192
24
MUTE
SOURCE
CDT- A MK
2
15
VAC UUM TUBE TR AN SI STOR ANALOG OUTP UT
MODEL : CS - 55A
SER. NO.:
VACUUM TUBE INTEGRATED AMPLIFIER
INPUT
CD
AUX
PHONO
GND
RIGHT OUTPUT LEFT OUTPUT
USB
ZHUHAI SPARK ELECTRONIC EQUIPMENT CO.,LTD.
TUBE SEL.
EL34
KT88

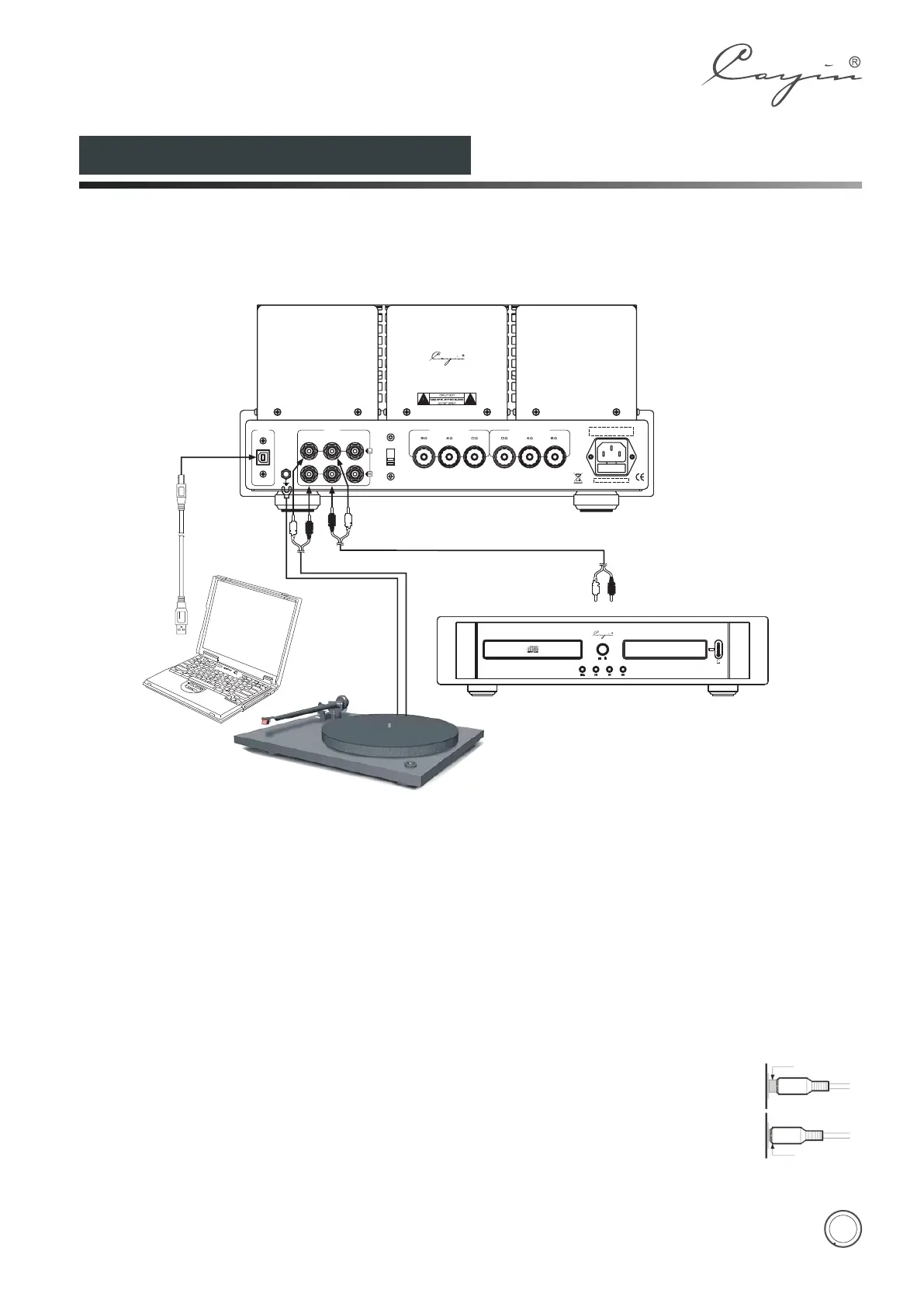

Please take the following picture for your reference of the connection methods of CS-55A amplifier with other
equipments like Computer, cd player and turntable etc.
Connection with the computer: please use the USB cable attached or other USB cable which complies with
USB 2.0 specification to connect the USB Audio input interface and computer.
Wrong connection
Right connection
