Cayin CS-55A - Speaker Connection; Connecting Speakers and Cables Correctly

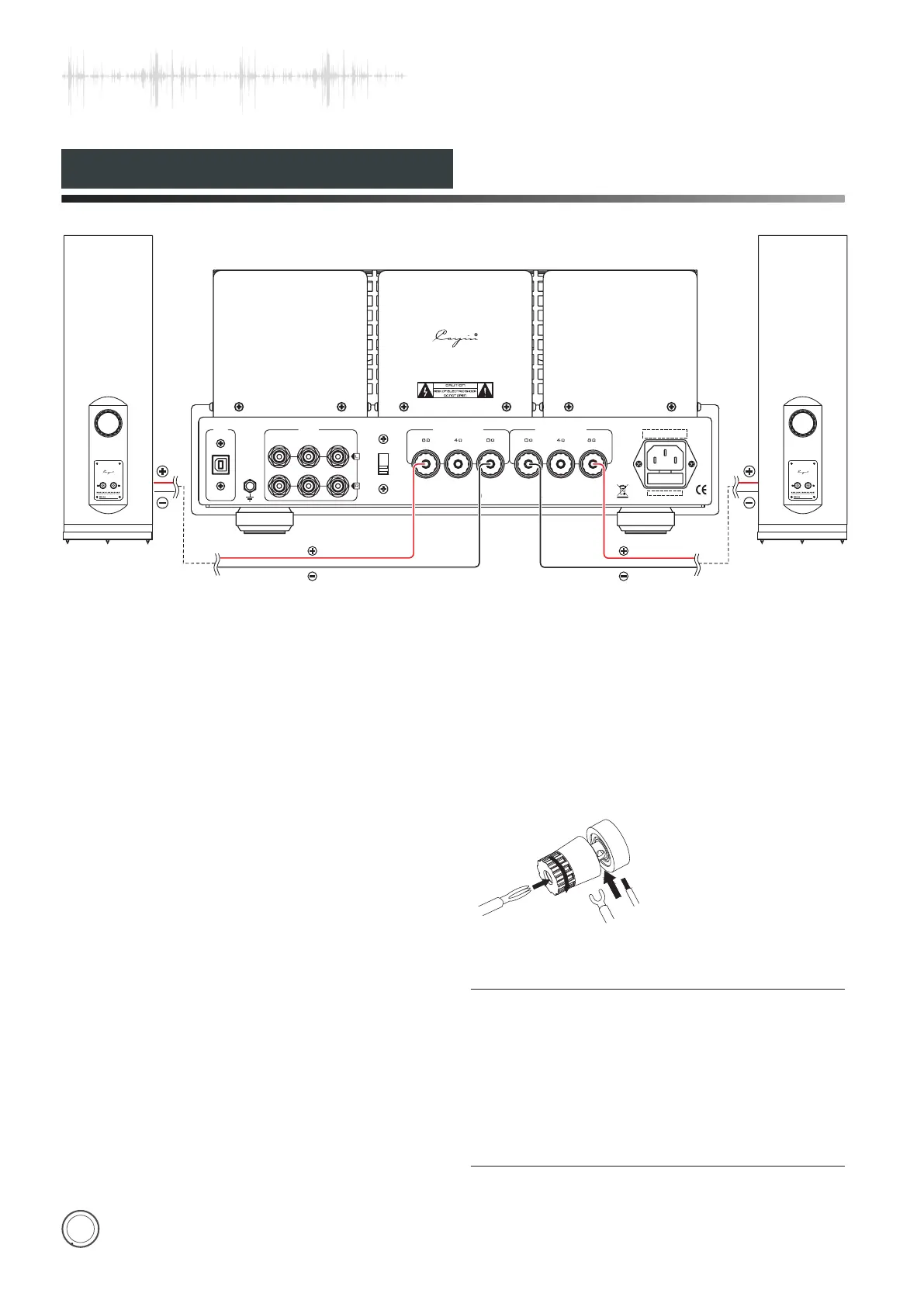

Speaker Connection
15
Check the impedance of your speakers:
Attach the positive from your speaker to the 4 or 8 ohm terminal and the negative to the 0 ohm terminals
separately. If your speakers are 6 ohm, 4 ohm or 8 ohm (recommended) terminal is preferential and it would not
cause damage to the amplifier.Connecting the left and right speakers according to the guidance can make sure
of the acoustic fidelity.
Connection of speaker cables:
1. Unscrew the terminal knob
2. Insert the speaker cable
3. Screw the terminal knob
Connect the speaker cables with the amplifier after it is
well connected with the speakers.
• Connect both of the speakers to make sure of the
acoustic fidelity.
• Please notice the signal direction indication of the cables.
• Do not mix up the positive and negative ends of speaker
cables or it will cause short circuit.
•
NOTE:
Banana plug
Normal plug
MODEL : CS - 55A
SER.NO. :
VACUUM TUBE INTEGRATED AMPLIFIER
INPUT
CD
AUX
PHONO
GND
RIGHT OUTPUT LEFT OUTPUT
USB
ZHUHAI SPARK ELECTRONIC EQUIPMENT CO.,LTD.
TUBE SEL.
EL34
KT88
RED
BLACK
RED
BLACK
SPEAKER（L）
SPEAKER（R）
