230 Series Auger Packer
37 OF 115
Put a little liquid soap on the outer part of the seal and install outer tip aligning the wire groove.
Install retainer wire in groove, as you did for the inner spout, clipping off excess wire so there is no wire
exposed.
This completes the installation.

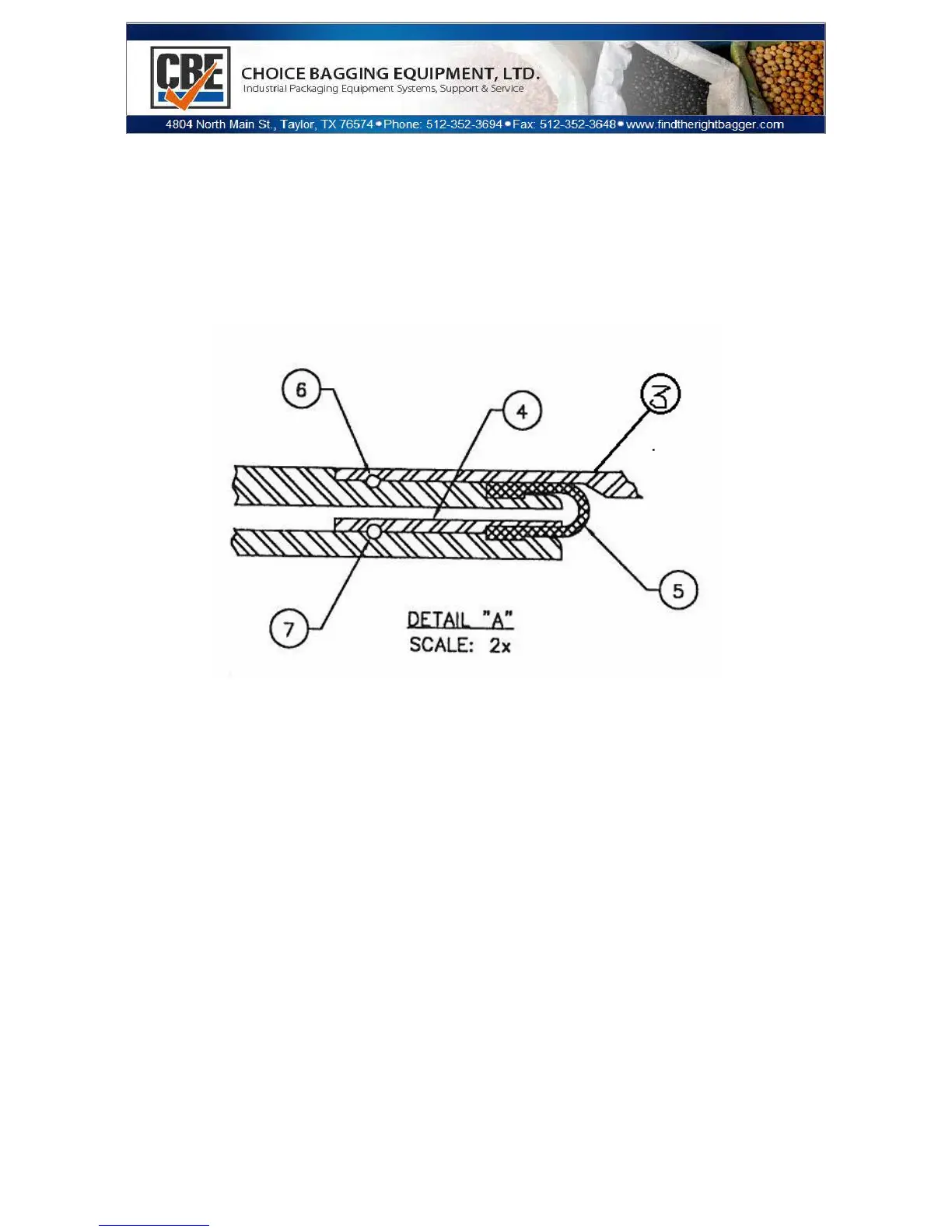

See drawing detail āAā of the spout tip.
DETAILED LAYOUT OF COMPONENTS OF THE ASSEMBLY
3. Outer spout
4. Inner ring
5. Isolator seal
6. Outer retainer wire
7. Inner retainer wire
