230 Series Auger Packer
39 OF 115
PLC & TIMER ADJUSTMENTS
PLC means Programmable Logical Controller. Our PLC is programmed with specific programs to work
with our equipment. Our programs are set up for Valve filling, O/M net weigh and gross weighing
equipment.
The PLC has several timers relating to specific functions. There are different programs for various types
of equipment. The PLC is programmed at the factory with default settings but they need to be fined tuned
in the field. Below we discuss how to adjust the timers what they operate.

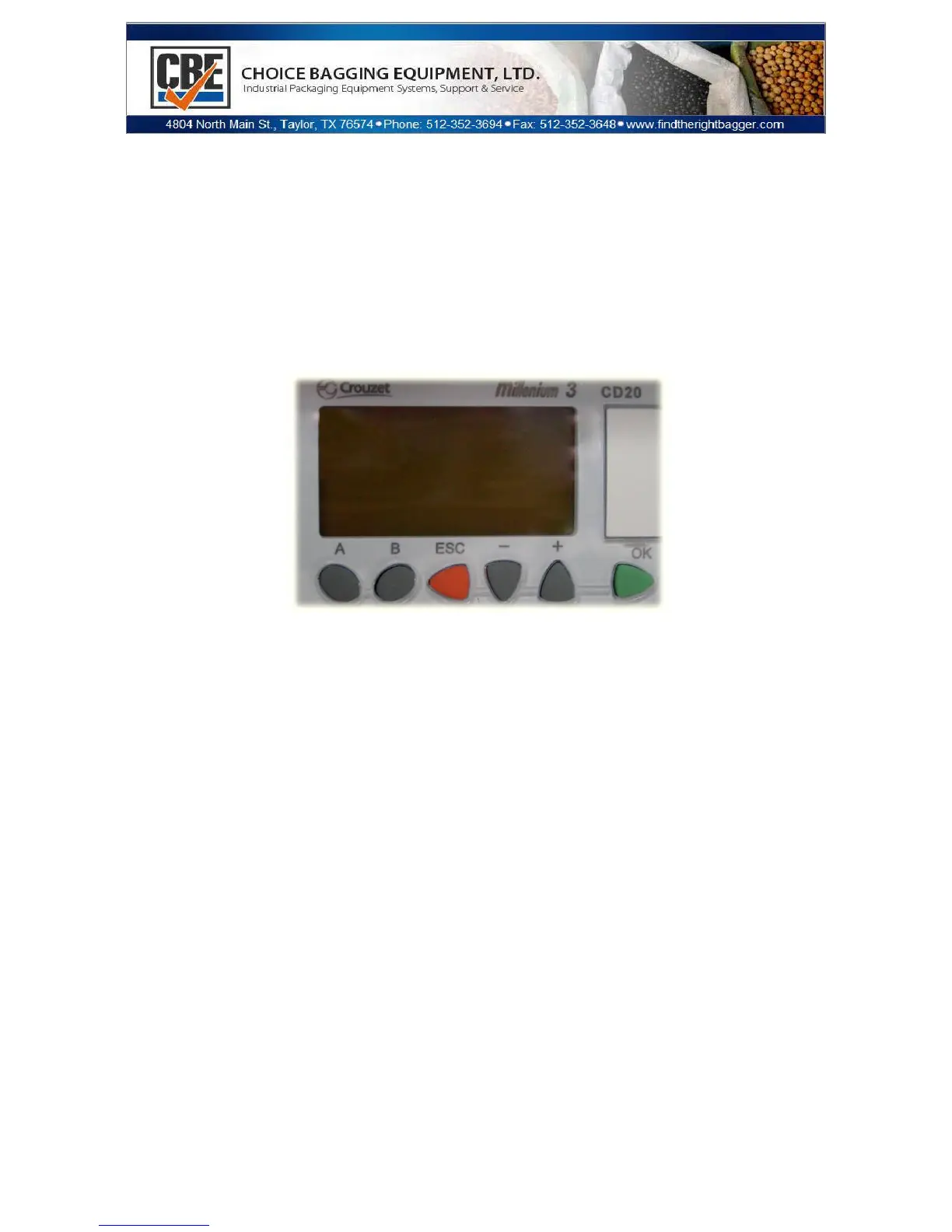

PLC SCREEN
Name of the levels and timers
1-Choice Bagging Equipment ( CBE )
2- Feed gate (toggle) Normal gate operation or closes when the packer goes into the dribble mode
3- Reverse
4. Bag Clamp Delay
5. Input / Output Screen illuminations
ADJUSTING THE TIMER
Use the A or B button to Scroll forward or backward through the Timers.
Once you reached the desired time press the OK key. (The timer is able to be edited when the selected
time flashes in a solid block. The timer cannot be edited when the numbers remain solid and flashes
white.)
Use the + and – keys to adjust the timer up and down in 0.1 second increments.
When done press the OK key again and numbers will be solid and flash white.
Press the Escape key to return to menu and using the up / down arrows scrolling back to the CBE screen.
