CBE 230 - Page 54

230 Series Auger Packer
54 OF 115

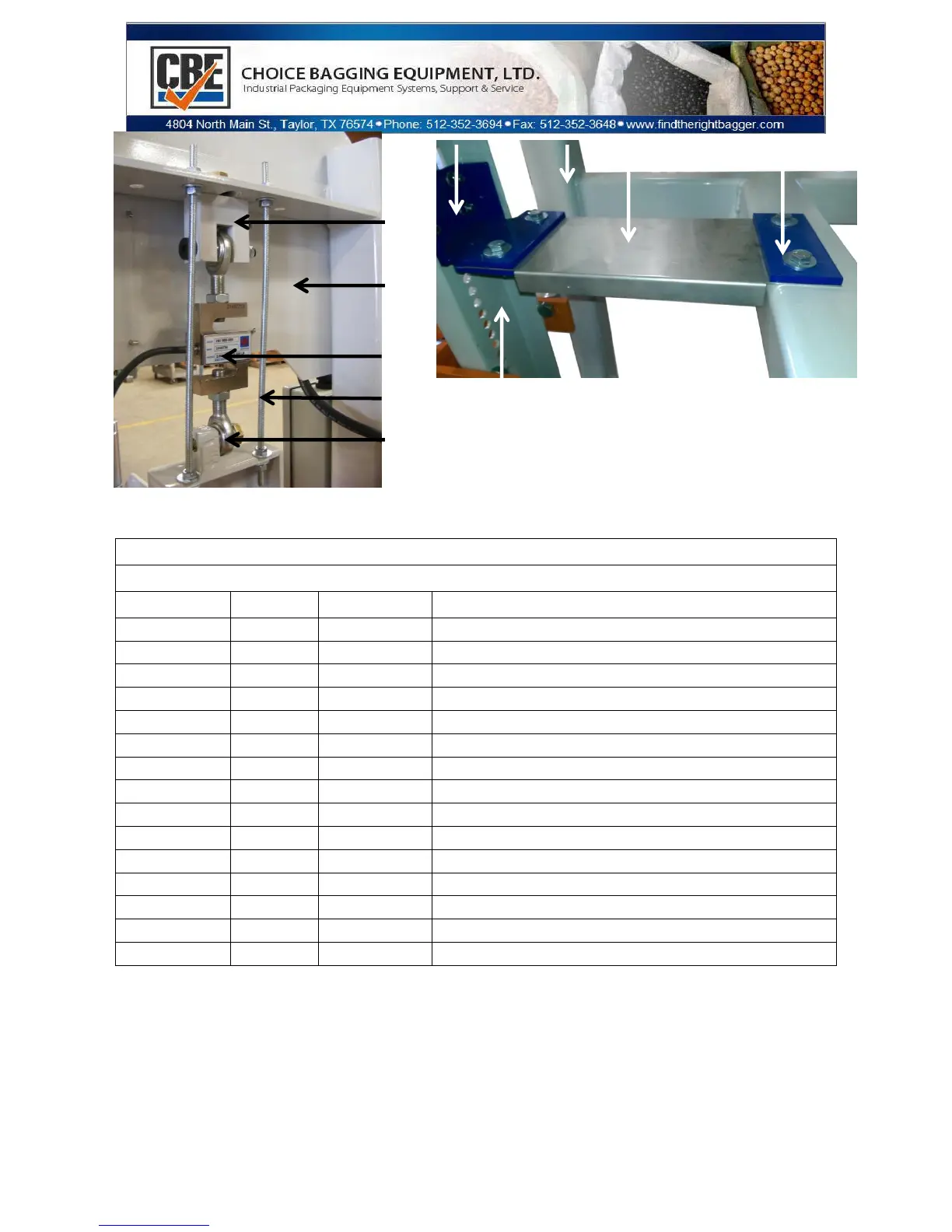

Universal Main Frame Assembly
CBE 101-300
Item
Part #
Qty
Part Description
1
101-004
2
Bag Post Mounting Bracket
2
101-010
2
Universal Flexure Plate
3
101-011
4
Flexure Plate Stabilizer
Not Shown
101-107
1
Caution "No Welding" Sticker
Not Shown
101-113
1
Weight Variation Sticker
Not Shown
101-115
1
Yellow Caution Sticker
Not Shown
101-118
1
Dust Collector Manifold
Not Shown
101-125
1
Serial Plate
4
101-308
1
Load Cell Cover
5
101-309
1
Universal Main Frame (2000)
6
101-311
1
Universal Bag Post
7
104-009
1
Load Cell; 500 lb. S-Type
8
104-077
2
Male 1/2-20 Rod Eye
9
104-078
1
Rod Eye Mounting Block For S Load Cell
10
101-345
2
1/4-20 X 10.5" Stud
1
2
3
5
6
4
7
8
9
10
