CBE 230 - Page 59

230 Series Auger Packer
59 OF 115

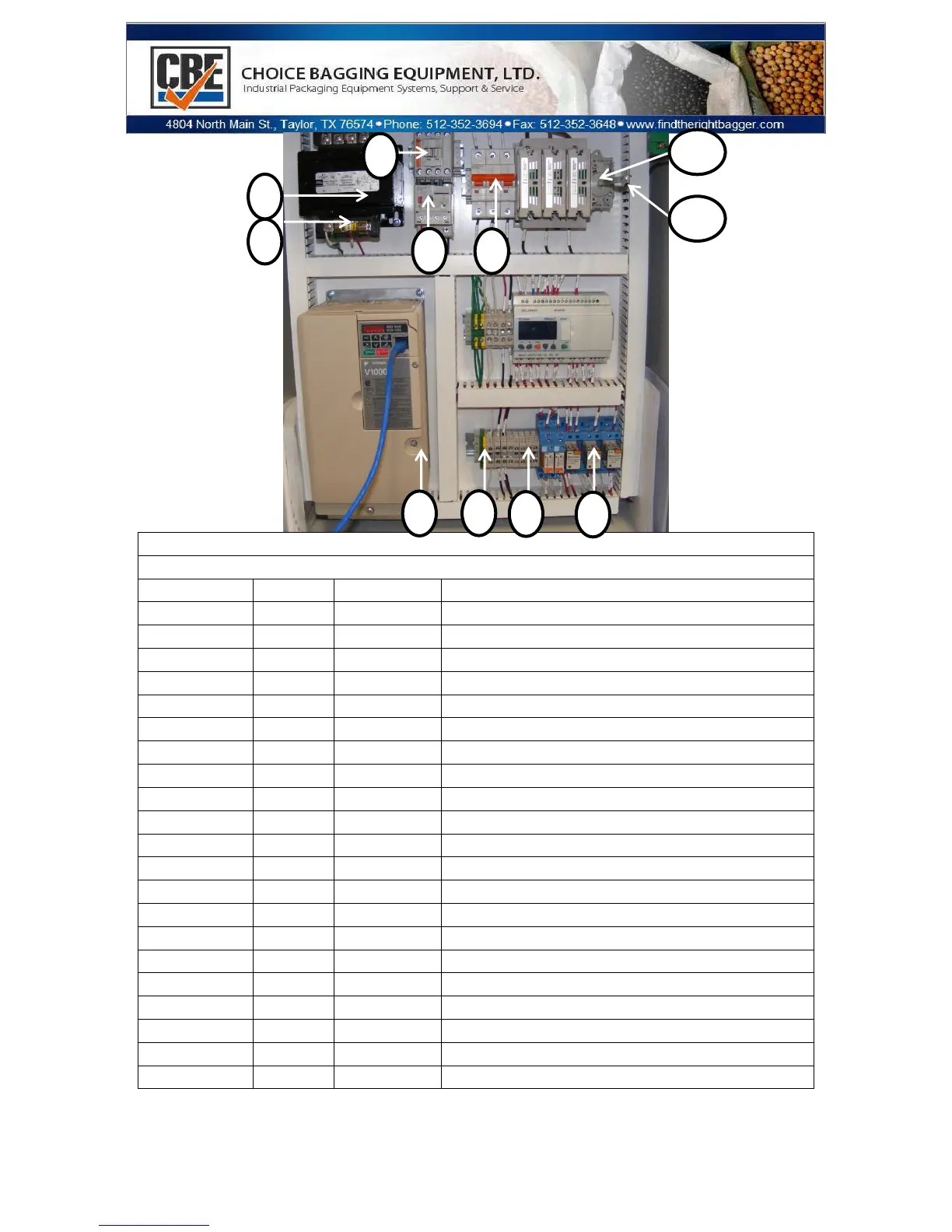

7.5 HP VFD MOTOR CONTROL KIT
CBE 109-516
Item
Part #
Qty
Part Description
1
109-008
1
Transformer
2
109-009
1
3 Amp Fuse
3
109-010
1
Motor Contactor 220/440 Volt
NOT SHOWN
109-012
4
End Anchors
4
109-013
6
Terminal Block
5
109-014
1
Ground Terminal Block
NOT SHOWN
109-019
1
End Barrier
6
109-029
3
Relay
NOT SHOWN
109-030
3
Relay Mounting Socket
7
109-047
1
25 Amp Circuit Breaker
NOT SHOWN
109-049
1
2 Pole Center Jumper
8
109-111
1
Overload,1.0-5.0 amps
NOT SHOWN
109-297
1
Enclosure, 24x20x8
NOT SHOWN
109-298
1
Back Plate, for 24x20
9
109-324
1
VFD, 7.5-10HP VFD, 18A, 460V (3PH IN/OUT)
NOT SHOWN
109-328
1
Disconnect Handle
10
109-329
1
Disconnect Shaft
11
109-392
2
Disconnect 32A
NOT SHOWN
109-429
3
Fuse w/indicator, J-type, 30A
NOT SHOWN
109-446
1
LCD Operator Interface
NOT SHOWN
109-447
1
Mounting/Membrane Kit
9
8
7
6
5
3
4
2
1
11
10
